1731100004 FCT Products by Molex

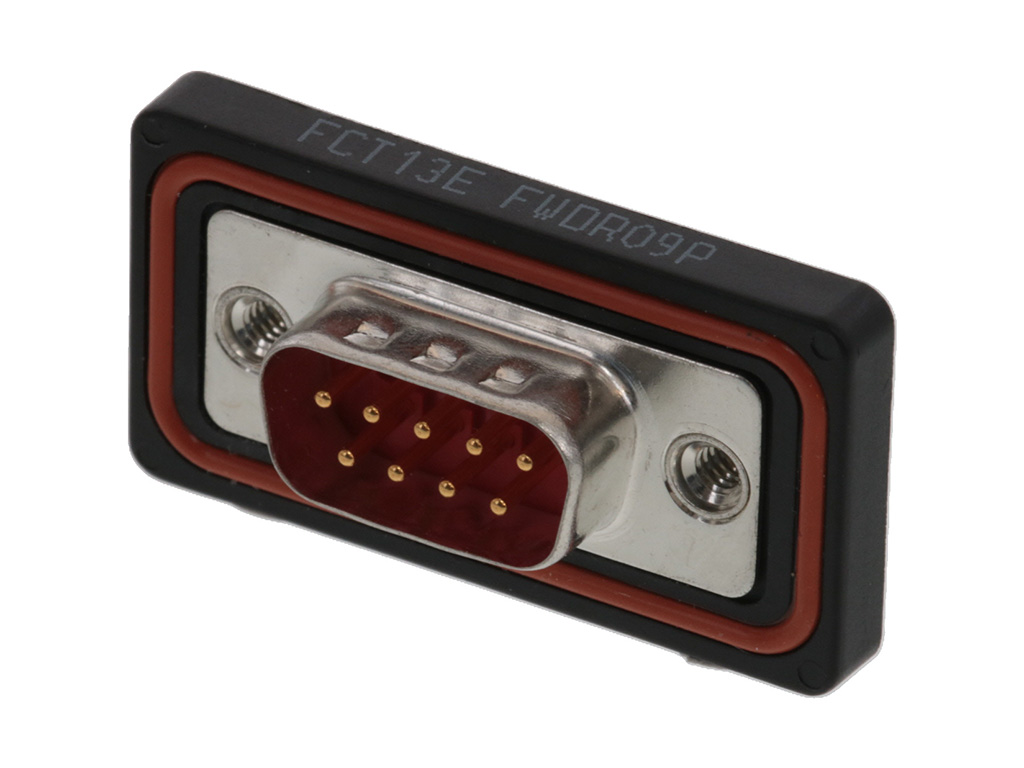

FCT Standard-Density Waterproof D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Plastic Watertight Frame, 9 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0004,
FWDR09P |
Where to Buy
Prices starting from US$11.19
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$11.50
|
882
in stock
|
Buy Now |
|
Rapid Electronics
from US$15.16
|
40
in stock
|
Buy Now |
|
Conrad
from US$19.08
|
40
in stock
|
Buy Now |
|
RS
from US$15.68
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$14.46
|
0
in stock
|
Buy Now |
|
TME
from US$14.56
|
0
in stock
|
Buy Now |
|
Compona
from US$11.19
|
0
in stock
|
Buy Now |
|
element14
from US$13.62
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$13.41
|
0
in stock
|
Buy Now |
|
Sager
from US$11.70
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$11.99
|
0
in stock
|
Buy Now |
|
Farnell
from US$14.56
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 9.800/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FWDR09P FCT DSUB SDR PLG 09 PN SLD RMNT | Heilind Europe |
| Molex 1731100004 FCT D-sub Male 9 Pins Solder Gold Waterproof Frame | Rapid Electronics |
| Molex 1731100004 D-SUB Stecker Polzahl: 9 Löten 1 St. Carton | Conrad |
| FCT from Molex FWDR09P / 1731100004 | RS |
| Fct Dsub Sdr Plg 09 Pn Sld Rmnt Rohs Compliant: Yes |Molex/fct 173110-0004 | Newark Electronics |
| Connector: D-Sub | TME |
| MOLEX FWDR09P Connector male 9p IP67 | Compona |
| D SUB CONN, PLUG, 9POS, SOLDER CUP | element14 |
| FCT FWD DSUB SDR PLG 09 | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB SDR PLG 09 RMNT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731100004?
Additional datasheets, footprints and schematics for 1731100004 are listed on our Part Details page. You can also find images and similar parts to 1731100004 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731100004 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731100004 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731100004 fall under?
The 1731100004 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731100004 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731100004 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731100004 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731100004 have stock available?
Authorised distributors including Heilind Europe, Rapid Electronics, Conrad, RS and Newark Electronics have stock available or on a lead time for 1731100004.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731100004 often in real-time on the comparison pages.
What if I can't find stock of 1731100004?
You can fill out our help required form which you can use to request a quote for 1731100004 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
