1731100021 FCT Products by Molex

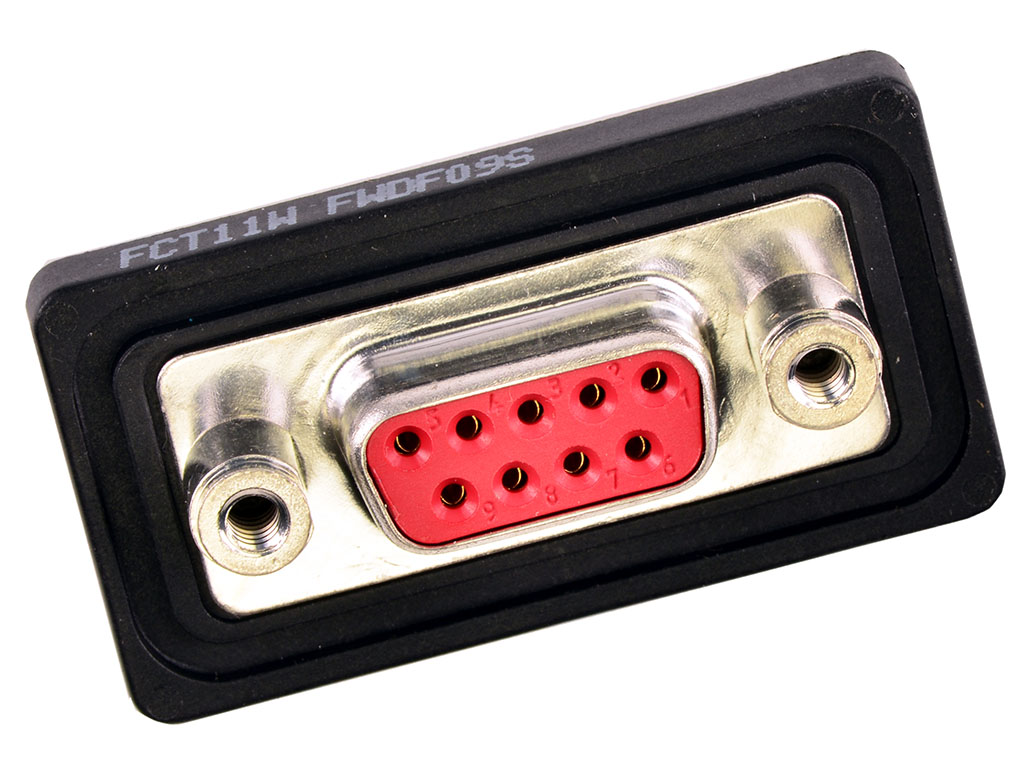

FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Front Panel Mount, Plastic Watertight Frame, 9 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0021,
FWDF09S |
Where to Buy
Prices starting from US$11.94
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$12.57
|
47
in stock
|
Buy Now |
|
Rapid Electronics
from US$21.82
|
18
in stock
|
Buy Now |
|
Conrad
from US$16.78
|
18
in stock
|
Buy Now |
|
Rutronik
-
|
500
in stock
|
Buy Now |
|
Offical Electronic
-
|
241
in stock
|
Buy Now |
|
RS
from US$44.61
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$17.37
|
0
in stock
|
Buy Now |
|
TME
from US$16.20
|
0
in stock
|
Buy Now |
|
Compona
from US$11.94
|
0
in stock
|
Buy Now |
|
element14
from US$17.16
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$14.24
|
0
in stock
|
Buy Now |
|
Sager
from US$12.43
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$12.74
|
0
in stock
|
Buy Now |
|
Farnell
from US$16.94
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Red |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 11.500/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Front |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FWDF09S FCT DSUB SDR RCPT 09 PN SLD FMNT | Heilind Europe |
| Molex 1731100021 Waterproof D-sub Plug 9 Pins Solder Cup Gold Plated | Rapid Electronics |
| Molex MOL Power & Signal Sol. 1731100021 D-SUB Stecker Polzahl: 9 Löten 1 St. Carton | Conrad |
| 09P D-Sub Fem. STR Solder_Cup | Rutronik |
| FCT from Molex FWDF09S / 1731100021 | RS |
| Fct Dsub Sdr Rcpt 09 Pn Sld Fmnt Rohs Compliant: Yes |Molex 173110-0021 | Newark Electronics |
| Connector: D-Sub | TME |
| MOLEX FWDF09S Connector female 9p IP67 | Compona |
| FCT DSUB SDR RCPT 09 PN SLD FMNT | element14 |
| FCT FWD DSUB SDR RCPT 09 | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB SDR RCPT 09 PN FMNT | Sager |
| D SUB CONN, RCPT, 9POS, SOLDER CUP | Farnell |
