1731100022 FCT Products by Molex

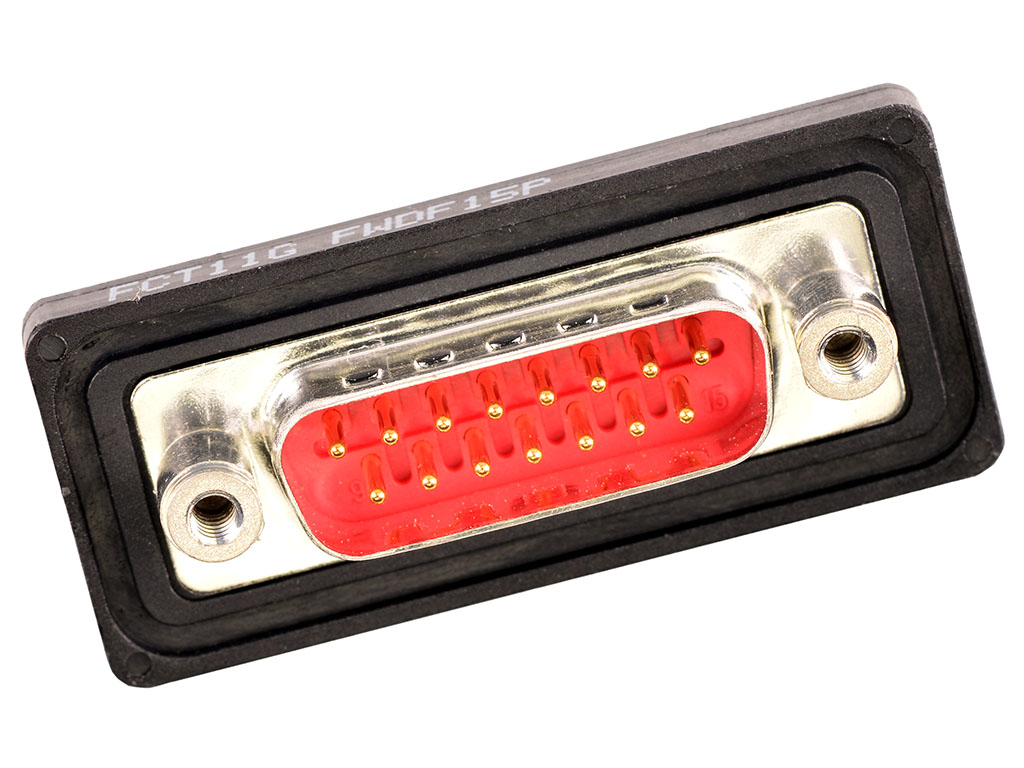

FCT Standard-Density Waterproof D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Front Panel Mount, Plastic Watertight Frame, 15 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0022,
FWDF15P |
Where to Buy
Prices starting from US$17.46
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$24.41
|
81
in stock
|
Buy Now |
|
Newark Electronics
from US$27.12
|
2
in stock
|
Buy Now |
|
element14
from US$24.65
|
2
in stock
|
Buy Now |
|
Farnell
from US$25.99
|
2
in stock
|
Buy Now |
|
TME
from US$23.06
|
0
in stock
|
Buy Now |
|
Compona
from US$17.46
|
0
in stock
|
Buy Now |
|
Conrad
from US$29.88
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$21.18
|
0
in stock
|
Buy Now |
|
Sager
from US$19.30
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$19.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$17.80
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 13.500/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Front |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT from Molex FWDF15P / 1731100022 | RS |
| D Sub Conn, Plug, 15Pos, Solder Cup Rohs Compliant: Yes |Molex 173110-0022 | Newark Electronics |
| D SUB CONN, PLUG, 15POS, SOLDER CUP | element14 |
| Connector: D-Sub | TME |
| MOLEX FWDF15P Male connector 15p IP67 | Compona |
| Molex 1731100022 D-SUB Steckverbinder Polzahl: 15 Lötkelch 1 St. | Conrad |
| FCT DSUB SDR PLG 15 PN SLD FM | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB SDR PLG 15 PN FMNT | Sager |
| FWDF15P FCT DSUB SDR PLG 15 PN SLD FMNT | Heilind Americas |
