1731100025 FCT Products by Molex

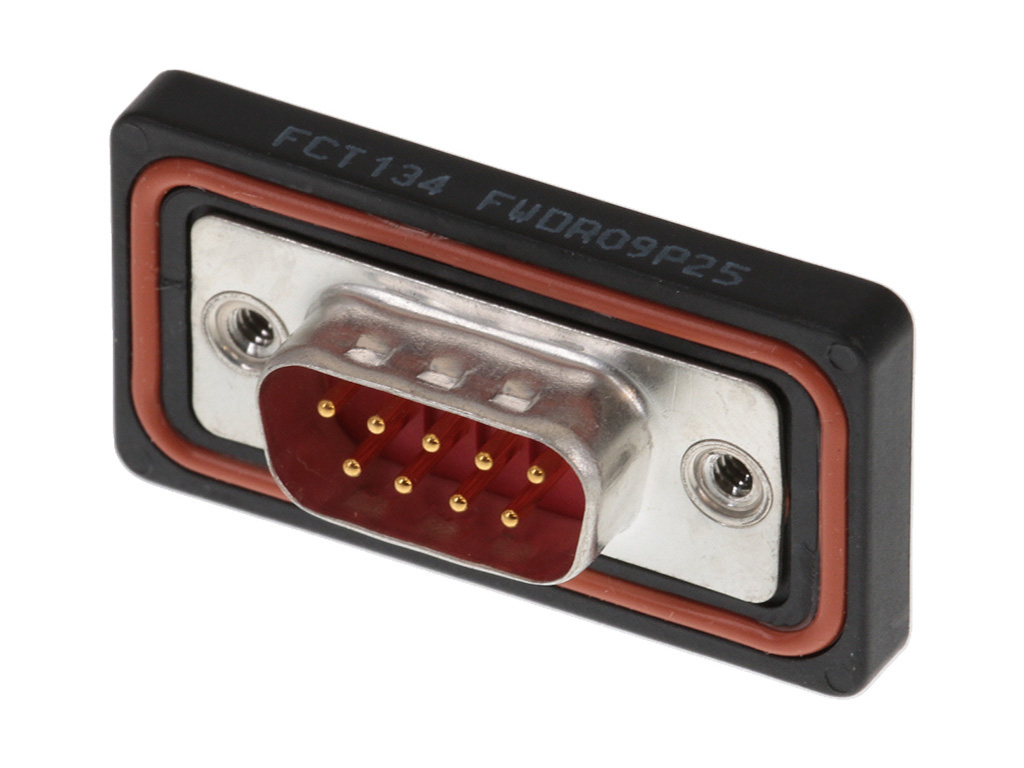

FCT Standard-Density Waterproof D-Sub Connector, Male, Right-Angle, PCB Through Hole, 10.50mm Tail Length, Gold Plating, Plastic Watertight Frame, Snap-in Bolt, 9 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0025,
FWDR09P25 |
Where to Buy
Prices starting from US$15.03
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 10.800/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.50mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Dsub Ra Pc Plg 09 Pn Sld Rmnt Rohs Compliant: Yes |Molex/fct 173110-0025 | Newark Electronics |
| MOLEX FWDR09P25 Connector male 9p,90° IP67 | Compona |
| FCT DSUB RA PC PLG 09 PN SLD R | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB RA PC PLG 09 RMNT | Sager |
| FWDR09P25 FCT DSUB RA PC PLG 09 PN SLD RMNT | Heilind Americas |
