1731100028 FCT Products by Molex

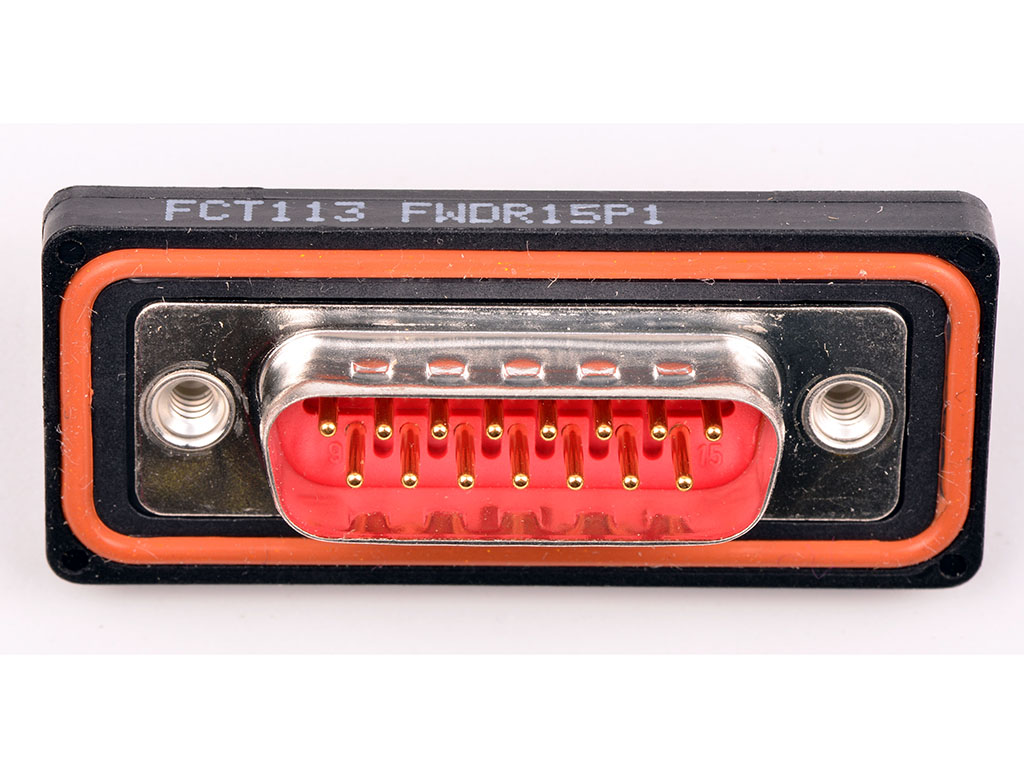

FCT Standard-Density Waterproof D-Sub Connector, Male, Straight, PCB Through Hole, 11.20mm Tail Length, Gold Plating, Plastic Watertight Frame, Snap-in Bolt, 15 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0028,
FWDR15P1 |
Where to Buy
Prices starting from US$7.29
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$7.29
|
20
in stock
|
Buy Now |
|
element14
from US$22.70
|
20
in stock
|
Buy Now |
|
Farnell
from US$22.62
|
20
in stock
|
Buy Now |
|
Compona
from US$18.78
|
0
in stock
|
Buy Now |
|
Sager
from US$20.82
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$21.34
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$20.37
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 12.500/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 11.20mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Dsub Str Pc Plg 15 Pn Sld Rmnt Rohs Compliant: Yes |Molex 173110-0028 | Newark Electronics |
| FCT DSUB STR PC PLG 15 PN SLD RMNT 54AC8066 | element14 |
| MOLEX FWDR15P1 Connector male 15p IP67 | Compona |
| D-Sub Standard Connectors FCT FWD DSUB STR PC PLG 15 RMNT | Sager |
| FWDR15P1 FCT DSUB STR PC PLG 15 PN SL | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731100028?
Additional datasheets, footprints and schematics for 1731100028 are listed on our Part Details page. You can also find images and similar parts to 1731100028 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731100028 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731100028 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731100028 fall under?
The 1731100028 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731100028 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731100028 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731100028 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731100028 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, Compona and Sager have stock available or on a lead time for 1731100028.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731100028 often in real-time on the comparison pages.
What if I can't find stock of 1731100028?
You can fill out our help required form which you can use to request a quote for 1731100028 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
