1731100029 FCT Products by Molex

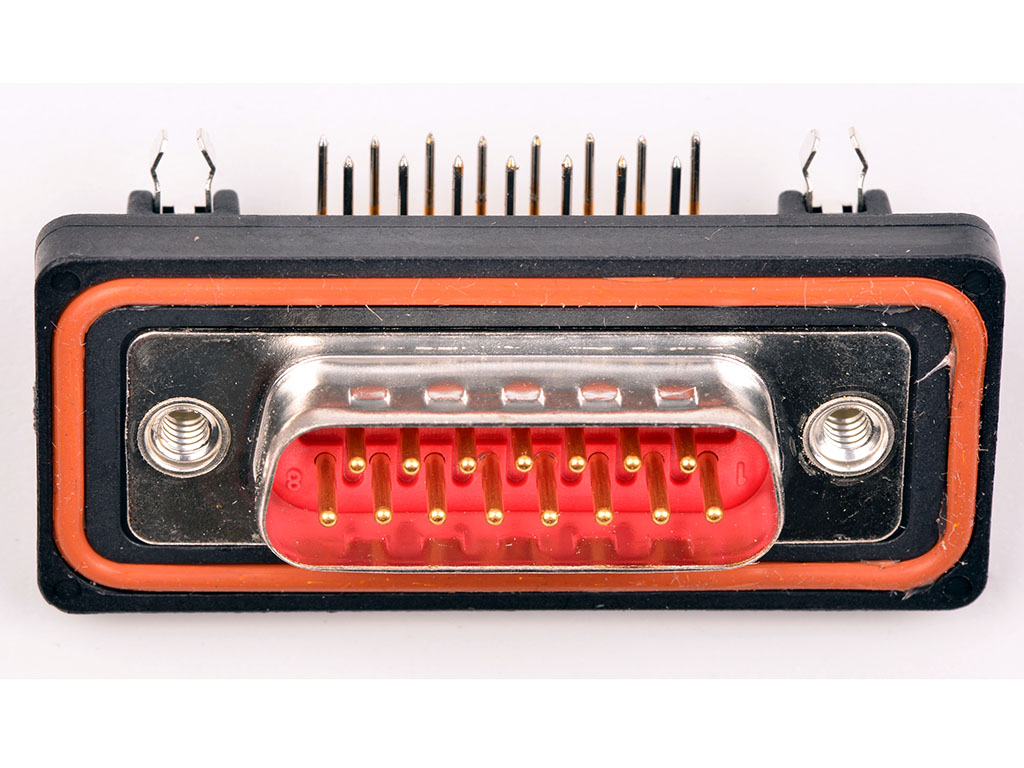

FCT Standard-Density Waterproof D-Sub Connector, Male, Right-Angle, PCB Through Hole, 10.50mm Tail Length, Gold Plating, Plastic Watertight Frame, Snap-in Bolt, 15 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0029,
FWDR15P25 |
Where to Buy
Prices starting from US$20.31
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$28.42
|
20
in stock
|
Buy Now |
|
TME
from US$24.99
|
20
in stock
|
Buy Now |
|
Conrad
from US$43.71
|
20
in stock
|
Buy Now |
|
Farnell
from US$42.56
|
19
in stock
|
Buy Now |
|
RS
from US$54.64
|
0
in stock
|
Buy Now |
|
Avnet America
from US$20.99
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$566.58
|
0
in stock
|
Buy Now |
|
Compona
from US$22.46
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$21.86
|
0
in stock
|
Buy Now |
|
Sager
from US$23.98
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$24.59
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$20.31
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 13.800/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.50mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn D-Sub Plug 15Pos R/A Solder |Molex 173110-0029 | Newark Electronics |
| Connector: D-Sub | TME |
| Molex 1731100029 D-SUB Steckverbinder Polzahl: 15 Lötpins 1 St. | Conrad |
| D SUB CONN, PLUG, DA, SOLDER | Farnell |
| FCT from Molex 173110-0029 | RS |
| Conn D Subminiature PIN 15 POS 2 Shell Size Solder Pot RA Panel Mount | Avnet America |
| STANDARD-DENSITY D-SUB, MALE, STRAIGHT, SOLDER CUP, GOLD, 25 CIRCUITS | RS Americas |
| MOLEX FWDR15P25 Connector male 15p,90° IP67 | Compona |
| DSUB WATERPROOF HD | TTI Americas |
| D-Sub Standard Connectors FCT FWD DSUB RA PC PLG 15 RMNT | Sager |
| FWDR15P25 FCT DSUB RA PC PLG 15 PN SLD RMNT | Heilind Americas |
