1731100033 FCT Products by Molex

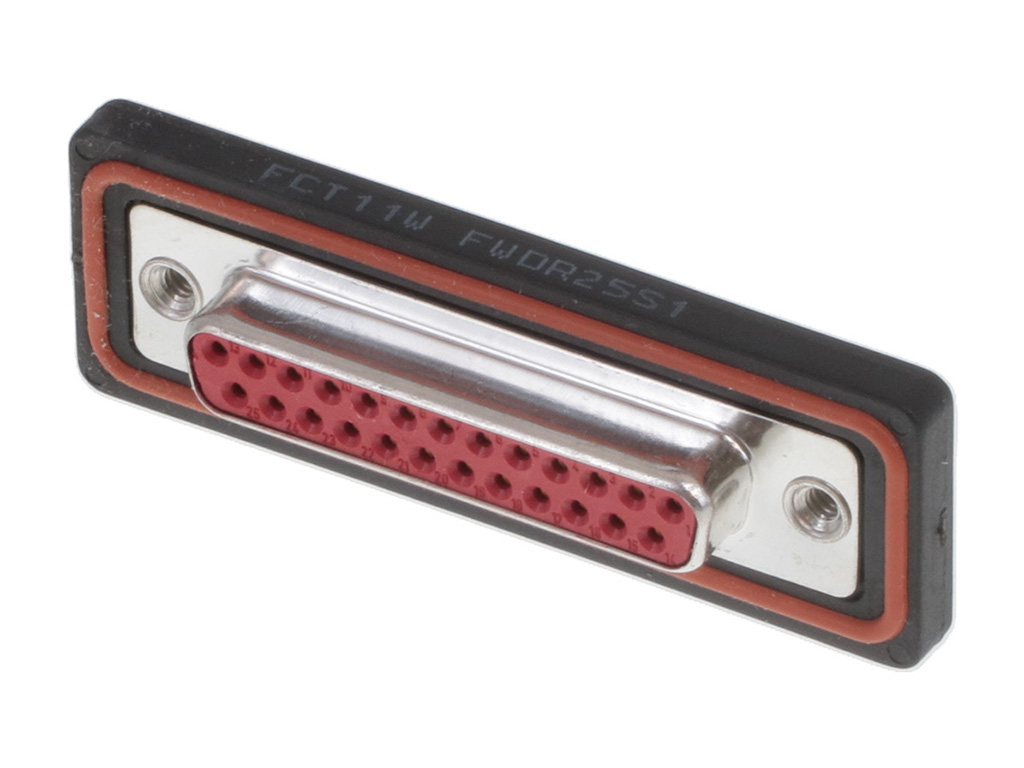

FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, PCB Through Hole, 11.20mm Tail Length, Gold Plating, Plastic Watertight Frame, Snap-in Bolt, 25 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0033,
FWDR25S1 |
Where to Buy
Prices starting from US$26.61
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$28.67
|
23
in stock
|
Buy Now |
|
Farnell
from US$47.66
|
22
in stock
|
Buy Now |
|
TME
from US$31.23
|
18
in stock
|
Buy Now |
|
Newark Electronics
from US$34.37
|
6
in stock
|
Buy Now |
|
element14
from US$36.02
|
6
in stock
|
Buy Now |
|
RS
from US$48.57
|
0
in stock
|
Buy Now |
|
Compona
from US$27.61
|
0
in stock
|
Buy Now |
|
Sager
from US$26.61
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$30.90
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$26.63
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | Red |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 18.200/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 11.20mm |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 173110-0033 1 St. Bulk | Conrad |
| D SUB CONN, RCPT, DB, SOLDER | Farnell |
| Connector: D-Sub | TME |
| Fct Dsub Str Pc Rcpt 25 Pn Sld Rmnt Rohs Compliant: Yes |Molex/fct 173110-0033 | Newark Electronics |
| FCT DSUB STR PC RCPT 25 PN SLD RMNT 99AC5757 | element14 |
| Molex 173110-0033 | RS |
| MOLEX FWDR25S1 Female connector 25p IP67 | Compona |
| D-Sub Standard Connectors FCT FWD DSUB STR PC RCPT 25 RMNT | Sager |
| FWDR25S1 FCT DSUB STR PC RCPT 25 PN SLD RMNT | Heilind Americas |
