1731100036 FCT Products by Molex

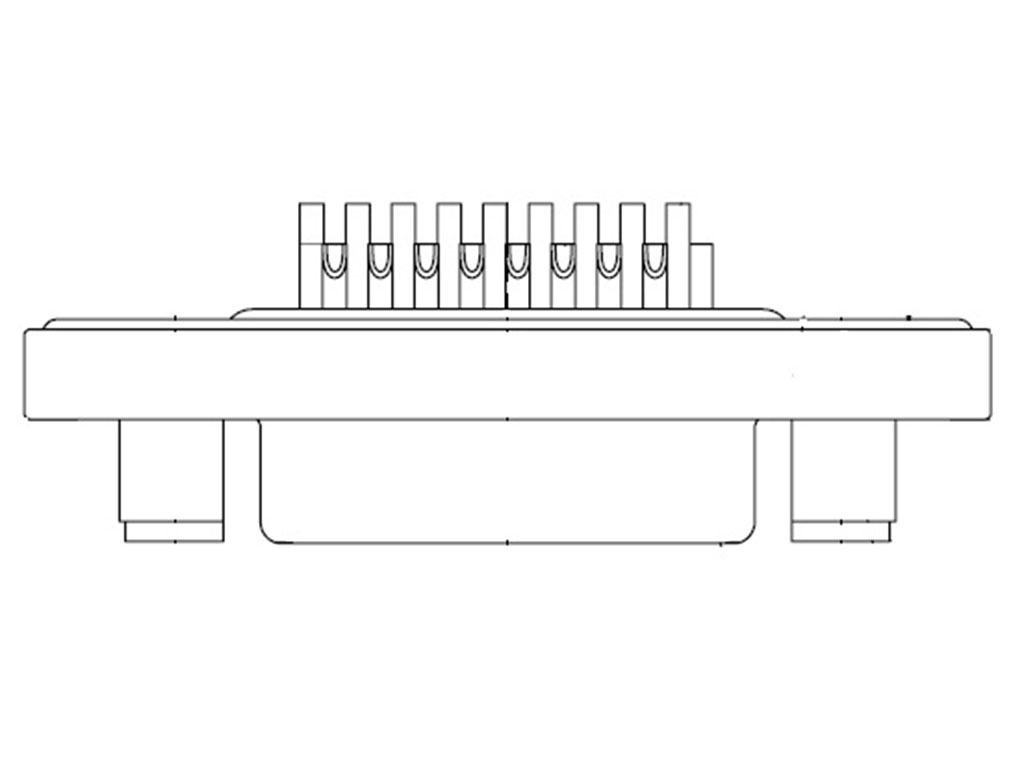

FCT High-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Metal Watertight Frame, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0036,
FWDRM09-15S-K1444 |
Where to Buy
Prices starting from US$20.03
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$29.51
|
117
in stock
|
Buy Now |
|
TME
from US$20.03
|
117
in stock
|
Buy Now |
|
Conrad
from US$39.09
|
117
in stock
|
Buy Now |
|
Farnell
from US$42.86
|
106
in stock
|
Buy Now |
|
RS
from US$38.65
|
0
in stock
|
Buy Now |
|
Compona
from US$25.69
|
0
in stock
|
Buy Now |
|
element14
from US$33.57
|
0
in stock
|
Buy Now |
|
Sager
from US$22.54
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 22.900/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 22 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub High Density Conn Fct Hd Dsub Sdr Rcpt 15 |Molex 173110-0036 | Newark Electronics |
| Connector: D-Sub | TME |
| Molex 1731100036 D-SUB Steckverbinder Polzahl: 15 Lötkelch 1 St. Bulk | Conrad |
| HD D SUB CONN, RCPT, DE, SOLDER CUP | Farnell |
| FCT from Molex 173110-0036 | RS |
| MOLEX FWDRM09-15S-K1444 Female connector HD 15p IP67 | Compona |
| HD-D SUB CONN, RCPT, DE, 15POS, SOLDER | element14 |
| D-Sub High Density Connectors FCT FWD DSUB SDR RCPT 15 RMNT MTL | Sager |
