1731100092 FCT Products by Molex

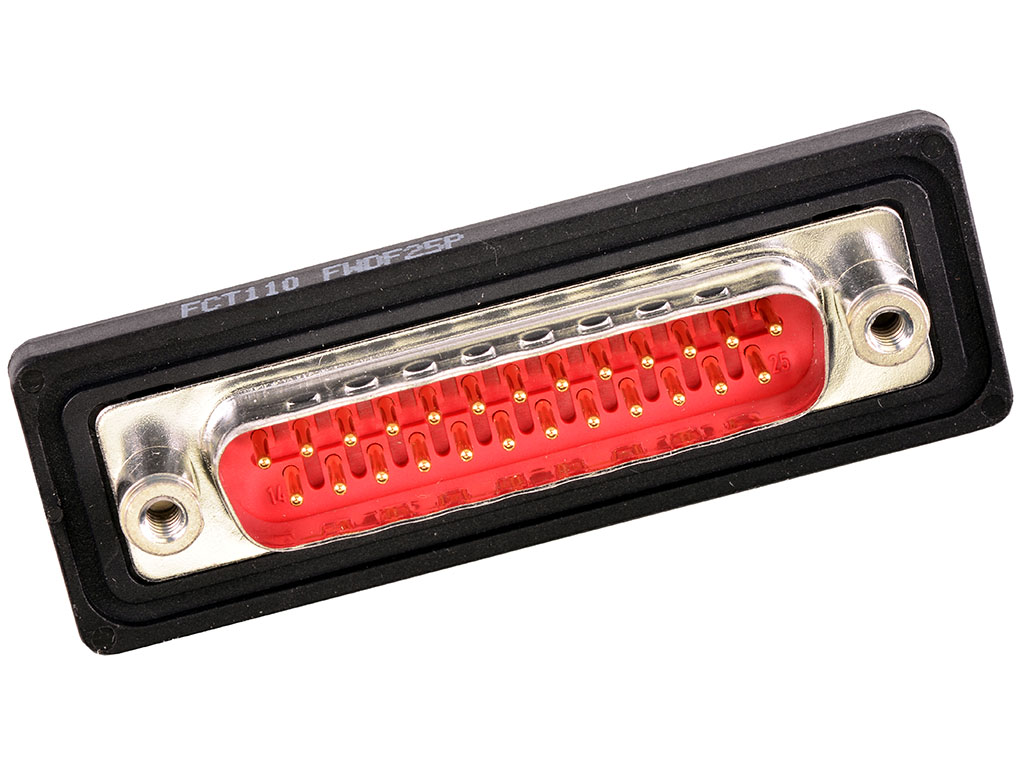

FCT Standard-Density Waterproof D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Front Panel Mount, Plastic Watertight Frame, 25 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0092,
FWDF25P |
Where to Buy
Prices starting from US$7.85
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$7.85
|
34
in stock
|
Buy Now |
|
element14
from US$25.00
|
34
in stock
|
Buy Now |
|
Farnell
from US$25.56
|
34
in stock
|
Buy Now |
|
RS
from US$24.32
|
32
in stock
|
Buy Now |
|
Rapid Electronics
from US$31.77
|
0
in stock
|
Buy Now |
|
TME
from US$25.25
|
0
in stock
|
Buy Now |
|
Compona
from US$19.08
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$23.11
|
0
in stock
|
Buy Now |
|
Sager
from US$19.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$21.66
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$19.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 18.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Front |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 22 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Dsub Sdr Plg 25 Pn Sld Fmnt Rohs Compliant: Yes |Molex/fct 173110-0092 | Newark Electronics |
| FCT DSUB SDR PLG 25 PN SLD FMNT 99AC5759 | element14 |
| FCT from Molex FWDF25P / 1731100092 | RS |
| Molex 1731100092 FCT D-sub Male Plug 25-pin Solder Cup Gold Watertight | Rapid Electronics |
| Connector: D-Sub | TME |
| MOLEX FWDF25P Connector male 25p IP67 | Compona |
| FCT FWD DSUB SDR | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB SDR PLG 25 PN FMNT | Sager |
| FWDF25P FCT DSUB SDR PLG 25 PN SLD FMNT | Heilind Americas |
