1731100100 FCT Products by Molex

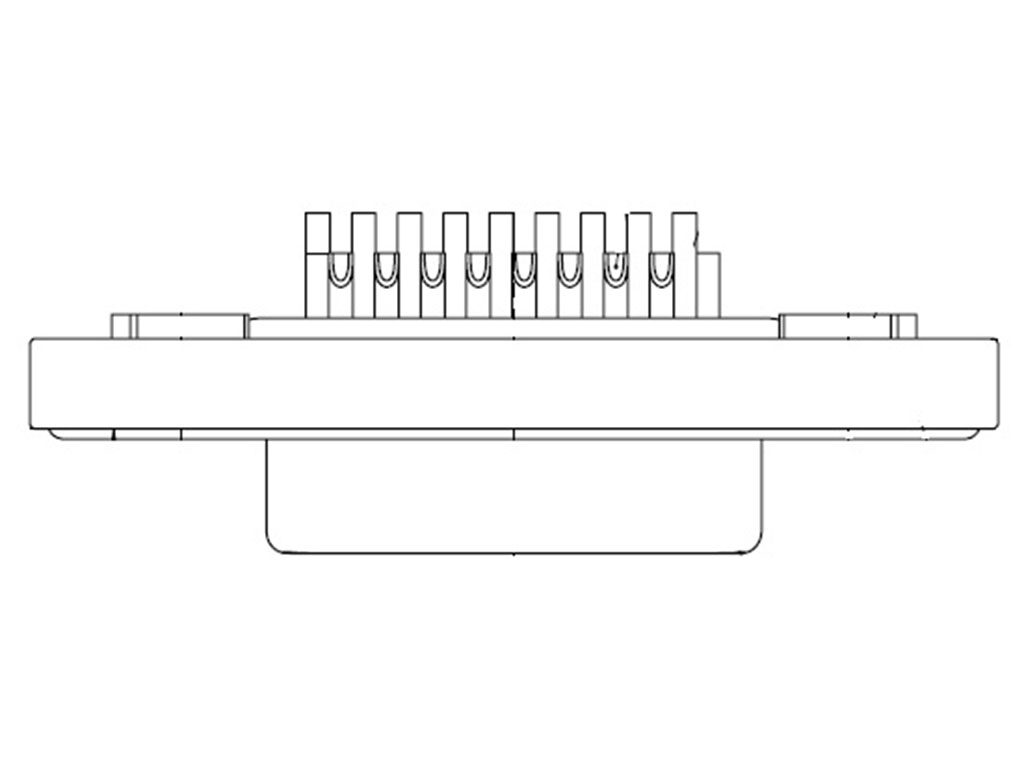

FCT High-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Metal Watertight Frame, 44 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0100,
FWDRM25-44S-K1444 |
Where to Buy
Prices starting from US$15.63
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$36.12
|
150
in stock
|
Buy Now |
|
Conrad
from US$67.26
|
150
in stock
|
Buy Now |
|
Farnell
from US$79.15
|
135
in stock
|
Buy Now |
|
Newark Electronics
from US$15.63
|
25
in stock
|
Buy Now |
|
element14
from US$45.76
|
22
in stock
|
Buy Now |
|
Avnet America
from US$42.10
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2,834.79
|
0
in stock
|
Buy Now |
|
Compona
from US$45.59
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$41.44
|
0
in stock
|
Buy Now |
|
Sager
from US$42.90
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$53.22
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$45.92
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 44 |
| Circuits Maximum | 44 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 34.700/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 22 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: D-Sub HD | TME |
| Molex 1731100100 D-SUB Buchse 1 St. | Conrad |
| HD D SUB CONN, RCPT, DB, SOLDER CUP | Farnell |
| Fct Hd Dsub Sdr Rcpt 44 Pn Sld Rmnt Rohs Compliant: Yes |Molex/fct 173110-0100 | Newark Electronics |
| HD-D SUB CONN, RCPT, DB, 44POS, SOLDER | element14 |
| STANDARD-DENSITY WATERPROOF D-SUB, MALE, STRAIGHT, SOLDER CUP, GOLD, 15 CIRCUIT | RS Americas |
| MOLEX FWDRM25-44S-K1444 Female connector HD 44p IP67 | Compona |
| DSUB WATERPROOF HD | TTI Americas |
| D-Sub High Density Connectors FCT FWD HD SDR RCPT 44 RMNT MTL | Sager |
| FWDRM25-44S-K1444 FCT HD DSUB SDR RCPT 44 PN SLD | Heilind Americas |
