1731100114 FCT Products by Molex

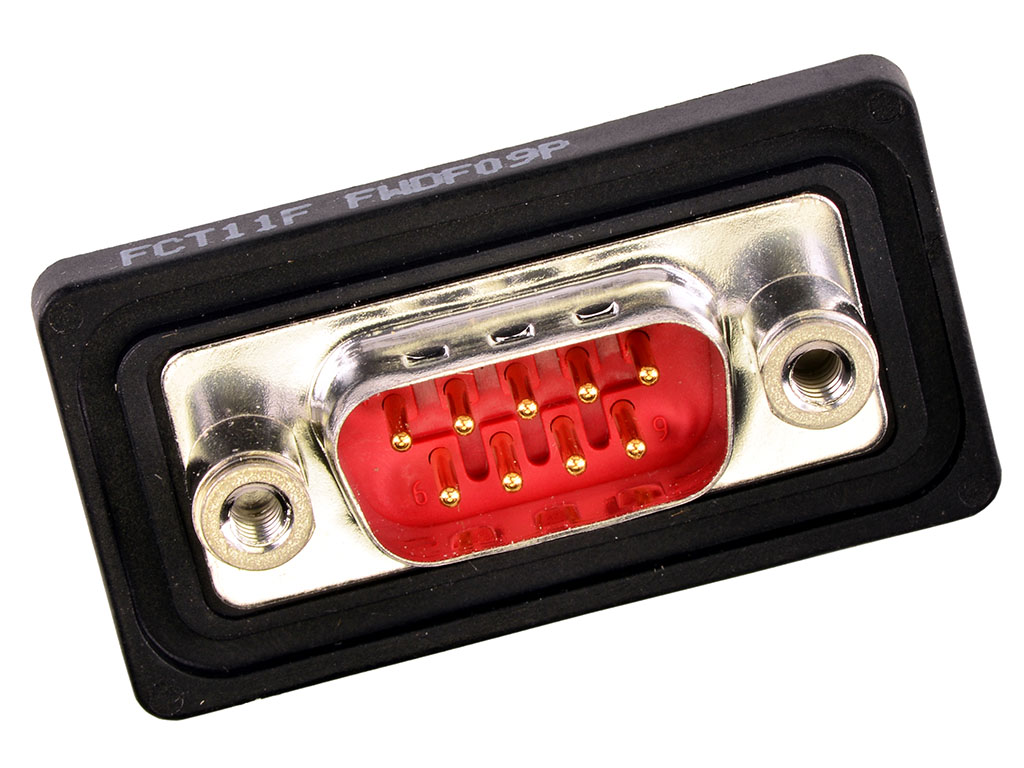

FCT Standard-Density Waterproof D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, Front Panel Mount, Plastic Watertight Frame, 9 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0114,
FWDF09P |
Where to Buy
Prices starting from US$10.71
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$31.73
|
266
in stock
|
Buy Now |
|
TTI Europe
from US$13.50
|
100
in stock
|
Buy Now |
|
Rapid Electronics
from US$24.72
|
20
in stock
|
Buy Now |
|
Conrad
from US$21.57
|
20
in stock
|
Buy Now |
|
Newark Electronics
from US$17.19
|
0
in stock
|
Buy Now |
|
TME
from US$14.89
|
0
in stock
|
Buy Now |
|
Compona
from US$11.31
|
0
in stock
|
Buy Now |
|
element14
from US$14.54
|
0
in stock
|
Buy Now |
|
Sager
from US$10.71
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$12.07
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.38
|
0
in stock
|
Buy Now |
|
Farnell
from US$15.74
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$11.45
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 9 |
| Circuits Maximum | 9 |
| Color Resin | Red |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 10.900/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Front |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT from Molex FWDF09P / 1731100114 | RS |
| FCT IP67 FWD SDR PLG 09 PN FMN | TTI Europe |
| Molex 1731100114 Waterproof D-sub Plug 9-pin Gold Male Solder Cup | Rapid Electronics |
| Molex 1731100114 D-SUB Stecker Polzahl: 9 Löten 1 St. Carton | Conrad |
| D Sub Conn, Plug, 9Pos, Solder Cup Rohs Compliant: Yes |Molex 173110-0114 | Newark Electronics |
| Connector: D-Sub | TME |
| MOLEX FWDF09P Connector male 9p IP67 | Compona |
| D SUB CONN, PLUG, 9POS, SOLDER CUP | element14 |
| D-Sub Standard Connectors FCT FWD DSUB SDR PLG 09 PN FMNT | Sager |
| FWDF09P FCT DSUB SDR PLG 09 PN FMNT | Heilind Americas |
| FCT WATERPROOF DSUB | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731100114?
Additional datasheets, footprints and schematics for 1731100114 are listed on our Part Details page. You can also find images and similar parts to 1731100114 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731100114 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731100114 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731100114 fall under?
The 1731100114 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731100114 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731100114 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731100114 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731100114 have stock available?
Authorised distributors including RS, TTI Europe, Rapid Electronics, Conrad and Newark Electronics have stock available or on a lead time for 1731100114.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731100114 often in real-time on the comparison pages.
What if I can't find stock of 1731100114?
You can fill out our help required form which you can use to request a quote for 1731100114 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
