1731100142 FCT Products by Molex

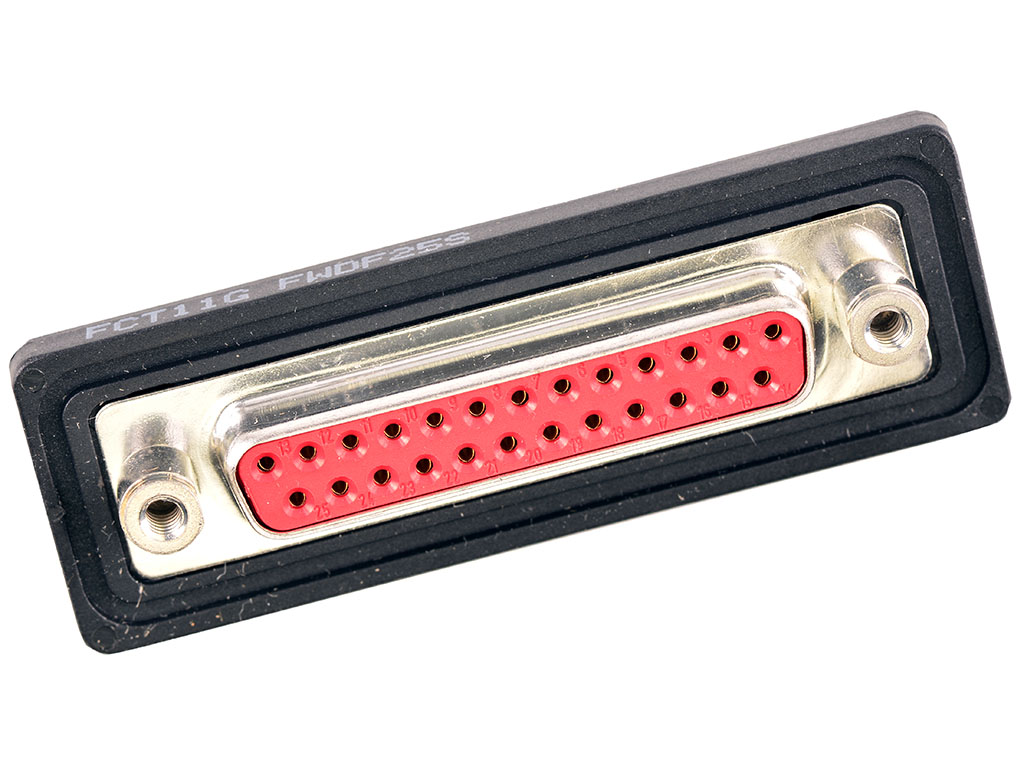

FCT Standard-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, Front Panel Mount, Plastic Watertight Frame, 25 Circuits, Red Insulator
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0142,
FWDF25S |
Where to Buy
Prices starting from US$19.90
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$44.01
|
607
in stock
|
Buy Now |
|
Farnell
from US$35.76
|
547
in stock
|
Buy Now |
|
RS
from US$42.08
|
27
in stock
|
Buy Now |
|
Offical Electronic
-
|
88
in stock
|
Buy Now |
|
Newark Electronics
from US$29.49
|
0
in stock
|
Buy Now |
|
TME
from US$30.78
|
0
in stock
|
Buy Now |
|
Compona
from US$21.11
|
0
in stock
|
Buy Now |
|
element14
from US$31.29
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$25.20
|
0
in stock
|
Buy Now |
|
Sager
from US$21.22
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$23.93
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$19.90
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | Red |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 38.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Panel Mount | Front |
| Panel Mount Method | Thread-In |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 1731100142 D-SUB Steckverbinder Polzahl: 25 Lötkelch 1 St. | Conrad |
| D SUB CONN, RCPT, DB, SOLDER CUP | Farnell |
| FCT from Molex FWDF25S / 1731100142 | RS |
| Fct Dsub Sdr Rcpt 25 Pn Fmnt Rohs Compliant: Yes |Molex/fct 173110-0142 | Newark Electronics |
| Connector: D-Sub | TME |
| MOLEX FWDF25S Connector female 25p IP67 | Compona |
| D SUB CONN, RCPT, 25POS, SOLDER CUP | element14 |
| FCT DSUB SDR RCPT 25 PN FMNT | TTI Europe |
| D-Sub Standard Connectors FCT FWD DSUB SDR RCPT 25 PN FMNT | Sager |
| FWDF25S FCT DSUB SDR RCPT 25 PN FMNT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731100142?
Additional datasheets, footprints and schematics for 1731100142 are listed on our Part Details page. You can also find images and similar parts to 1731100142 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731100142 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731100142 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731100142 fall under?
The 1731100142 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731100142 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731100142 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731100142 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731100142 have stock available?
Authorised distributors including Conrad, Farnell, RS, Offical Electronic and Newark Electronics have stock available or on a lead time for 1731100142.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731100142 often in real-time on the comparison pages.
What if I can't find stock of 1731100142?
You can fill out our help required form which you can use to request a quote for 1731100142 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
