1731100236 FCT Products by Molex

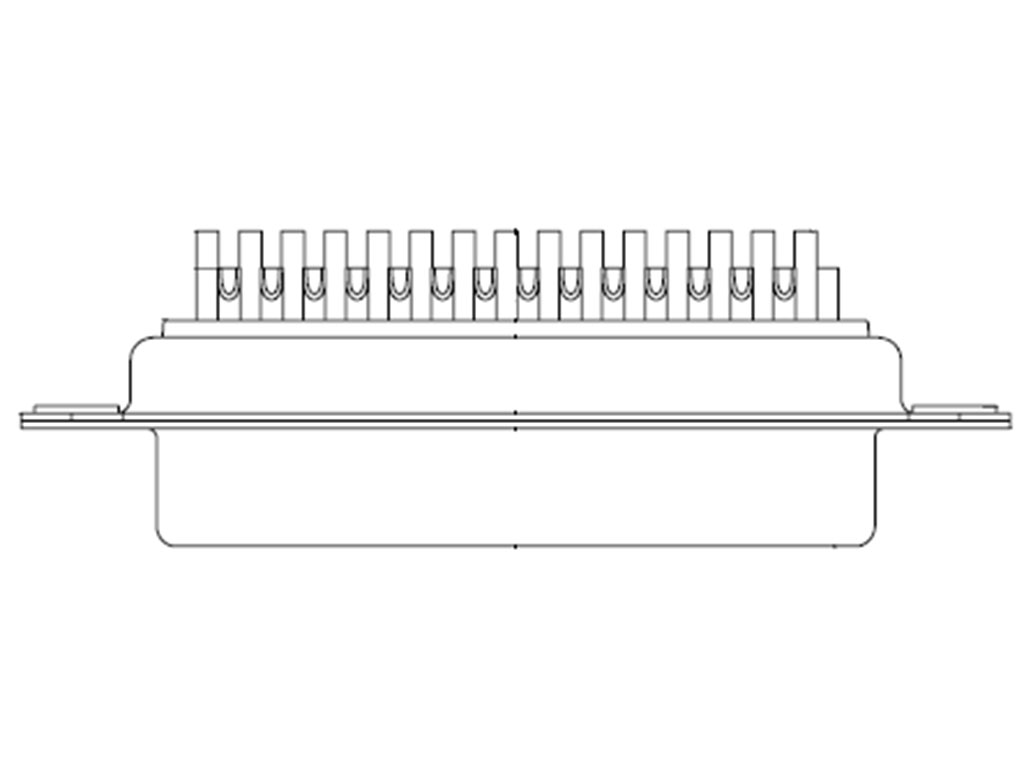

FCT High-Density Waterproof D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 44 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0236,
CT25-44S-2429 |
Where to Buy
Prices starting from US$50.07
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$64.65
|
0
in stock
|
Buy Now |
|
Compona
from US$56.31
|
0
in stock
|
Buy Now |
|
element14
from US$68.39
|
0
in stock
|
Buy Now |
|
Sager
from US$50.07
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$62.11
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$53.52
|
0
in stock
|
Buy Now |
|
Farnell
from US$81.67
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 44 |
| Circuits Maximum | 44 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 22 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Hd Dsub Sdr Rcpt 44 Pn Ip67 Rohs Compliant: Yes |Molex/fct 173110-0236 | Newark Electronics |
| MOLEX CT25-44S-2429 Female connector 44p HD | Compona |
| HD-D SUB CONN, RCPT, DB, 44POS, SOLDER | element14 |
| D-Sub High Density Connectors FCT WD HD DSUB SLD RCPT 44 PN | Sager |
| CT25-44S-2429 FCT HD DSUB SDR RCPT 44 PN IP6 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731100236?
Additional datasheets, footprints and schematics for 1731100236 are listed on our Part Details page. You can also find images and similar parts to 1731100236 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731100236 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731100236 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731100236 fall under?
The 1731100236 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731100236 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731100236 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731100236 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731100236 have stock available?
Authorised distributors including Newark Electronics, Compona, element14, Sager and Heilind Americas have stock available or on a lead time for 1731100236.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731100236 often in real-time on the comparison pages.
What if I can't find stock of 1731100236?
You can fill out our help required form which you can use to request a quote for 1731100236 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
