1731100247 FCT Products by Molex

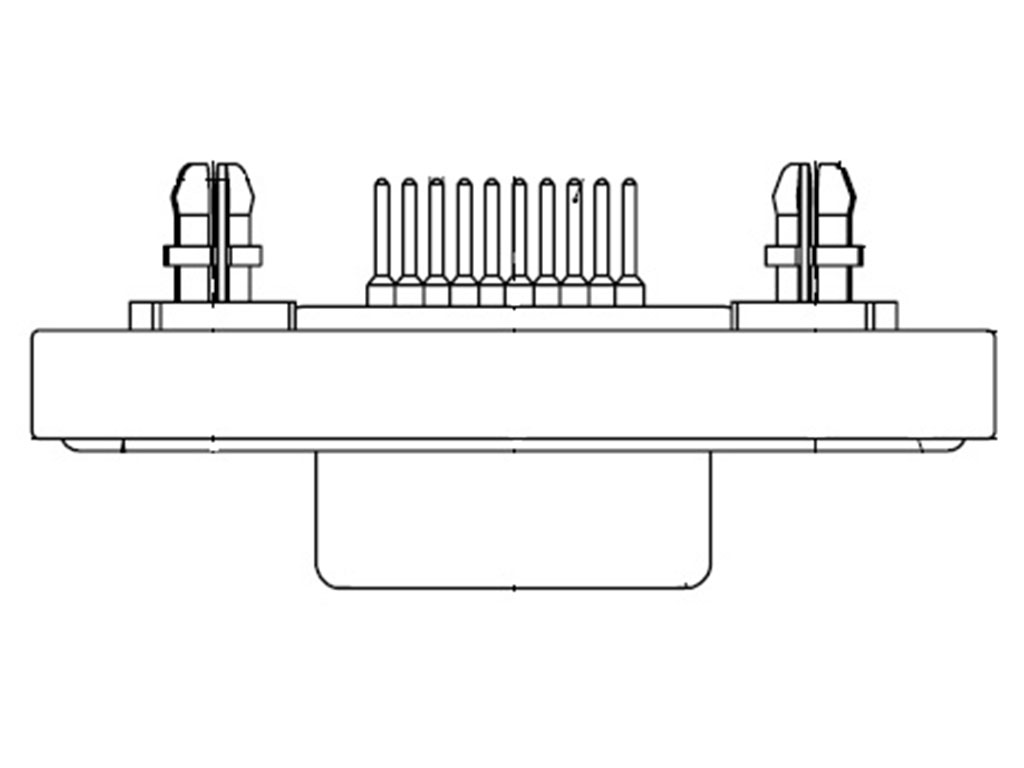

FCT High-Density Waterproof D-Sub Connector, Female, Straight, PCB Through Hole, Gold Plating, Metal Watertight Frame, Snap-in Bolt, 15 Circuits
| Status: | Active - Proprietary |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173110-0247,
FWDRM09-15S1-K1676 |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Brass |
| Net Weight | 23.000/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.80mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Hd Str Rcpt 15 Pn Sld Rmnt Rohs Compliant: Yes |Molex/fct 173110-0247 | Newark Electronics |
| HD-D SUB CONNECTOR, RCPT, DE, 15POS, TH | element14 |
| D-Sub High Density Connectors FCT FWD DSUB STR PC RCPT 15 RMNT MTL | Sager |
