1731110062 FCT Products by Molex

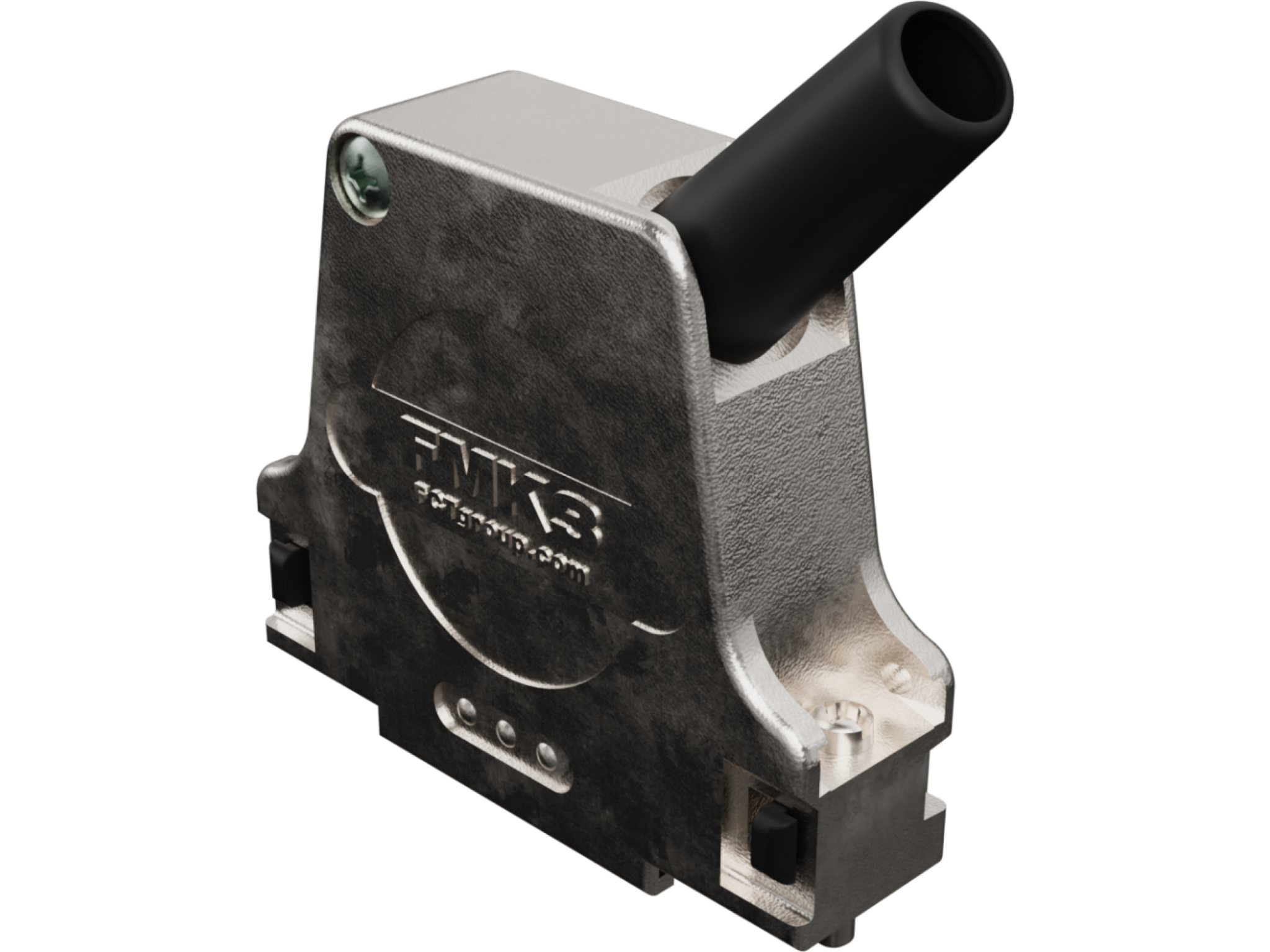

FCT Metal Backshell for D-Sub Connector, Shell Size 3, 45° Angle Large Diameter Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173111-0062,
FMK3-K201 |
Where to Buy
Prices starting from US$4.02
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$4.17
|
4,508
in stock
|
Buy Now |
|
RS
from US$11.68
|
358
in stock
|
Buy Now |
|
Newark Electronics
from US$7.17
|
272
in stock
|
Buy Now |
|
element14
from US$5.12
|
272
in stock
|
Buy Now |
|
Farnell
from US$6.91
|
272
in stock
|
Buy Now |
|
TTI Europe
from US$4.02
|
90
in stock
|
Buy Now |
|
TME
from US$5.77
|
31
in stock
|
Buy Now |
|
Rapid Electronics
from US$7.19
|
11
in stock
|
Buy Now |
|
Conrad
from US$4.67
|
11
in stock
|
Buy Now |
|
Offical Electronic
-
|
2,041
in stock
|
Buy Now |
|
Compona
from US$4.29
|
0
in stock
|
Buy Now |
|
Sager
from US$4.50
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$5.44
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$4.13
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
| Shield Type | Solid Metal |
Physical |
|
|---|---|
| Cable Diameter | 8.50-12.50mm |
| Material Backshell | Zinc Die-cast |
| Material Bushing | TPE |
| Material Screw | Steel |
| Mounting Style | Locking Screw |
| Orientation | 45° Angle |
| Plating Back Shell | Nickel |
| Temperature Range Operating | -35° to +100°C |
| Thread Size | 4-40 UNC |
| Thread Type | Standard |
| Tightening Test Torque | 40 Ncm |
| Waterproof Dustproof | No |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FMK3-K201 FCT HOOD S3 45 DEG MTL W/SCRWLCK | Heilind Europe |
| 25 way metal D-con hood, 12.5mm 45deg | RS |
| D-Sub Backshell, Db, 45Deg, Zinc | Newark Electronics |
| D-SUB BACKSHELL, DB, 45DEG, ZINC | element14 |
| D-SUB METAL BACKSHELL | TTI Europe |
| Connector: D-Sub | TME |
| Molex 1731110062 D-sub Backshell 45° Large Cable Rubber Bushing | Rapid Electronics |
| Molex 1731110062 D-SUB Gehäuse 1 St. | Conrad |
| MOLEX FMK3-K201 Hood D-Sub metal size 3 (25p) 180° cable outlet 8-12.5mm | Compona |
| D-Sub Backshells FCT HOOD S3 45 DEG MTL W/SCRWLCK | Sager |
| FCT HOOD S3 45 DEG MTL W/SCRWL | TTI Asia |
