1731120465 FCT Products by Molex

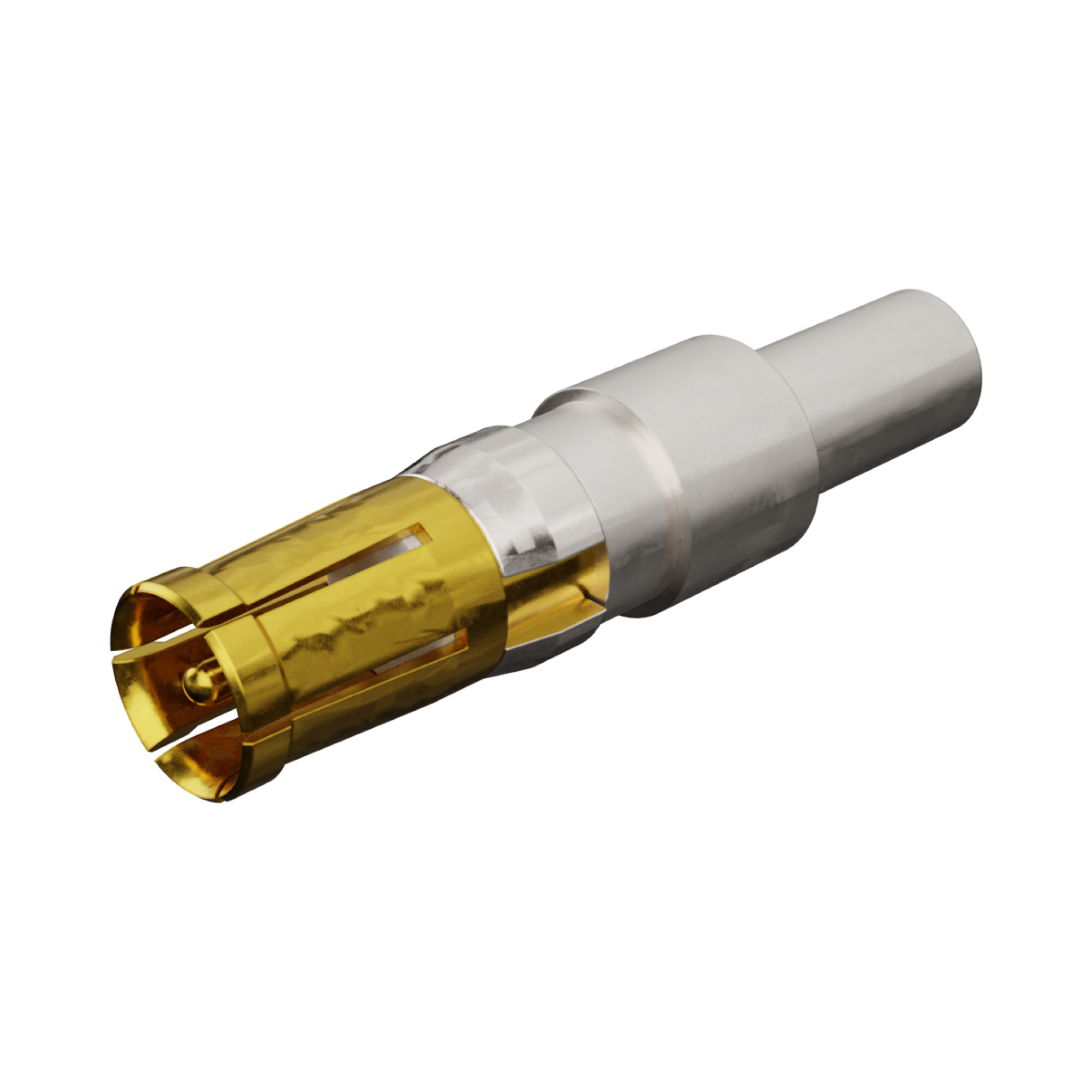

FCT Coaxial Contact, Female, Straight, Crimp, 50 Ohms, 0.20µm Gold Plating, for RG-174U, RG-188AU, or RG-316U Cable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173112-0465,
FMS001S101 |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Impedance | 50Ω |
Physical |
|
|---|---|
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel |
| Material Plating Termination | Tin over Nickel |
| Net Weight | 1.500/g |
| Orientation | Straight |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 5.000µm |
| Temperature Range Operating | -55° to +135°C |
| Termination Style | Crimp |
| Wire Cable Type | RG-174U, RG-188AU, RG-316U |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub Contact, Socket, Crimp | Newark Electronics |
| D-Sub Contacts FCT TERM HFREQ STR CRP RCPT 50 OHM | Sager |
| FMS001S101 D-SUB COAXIAL CRIMP/CRIMP | Heilind Americas |
| FCT TERM HFREQ STR CRP RCPT 50 OHM | Farnell |
