1731120576 FCT Products by Molex

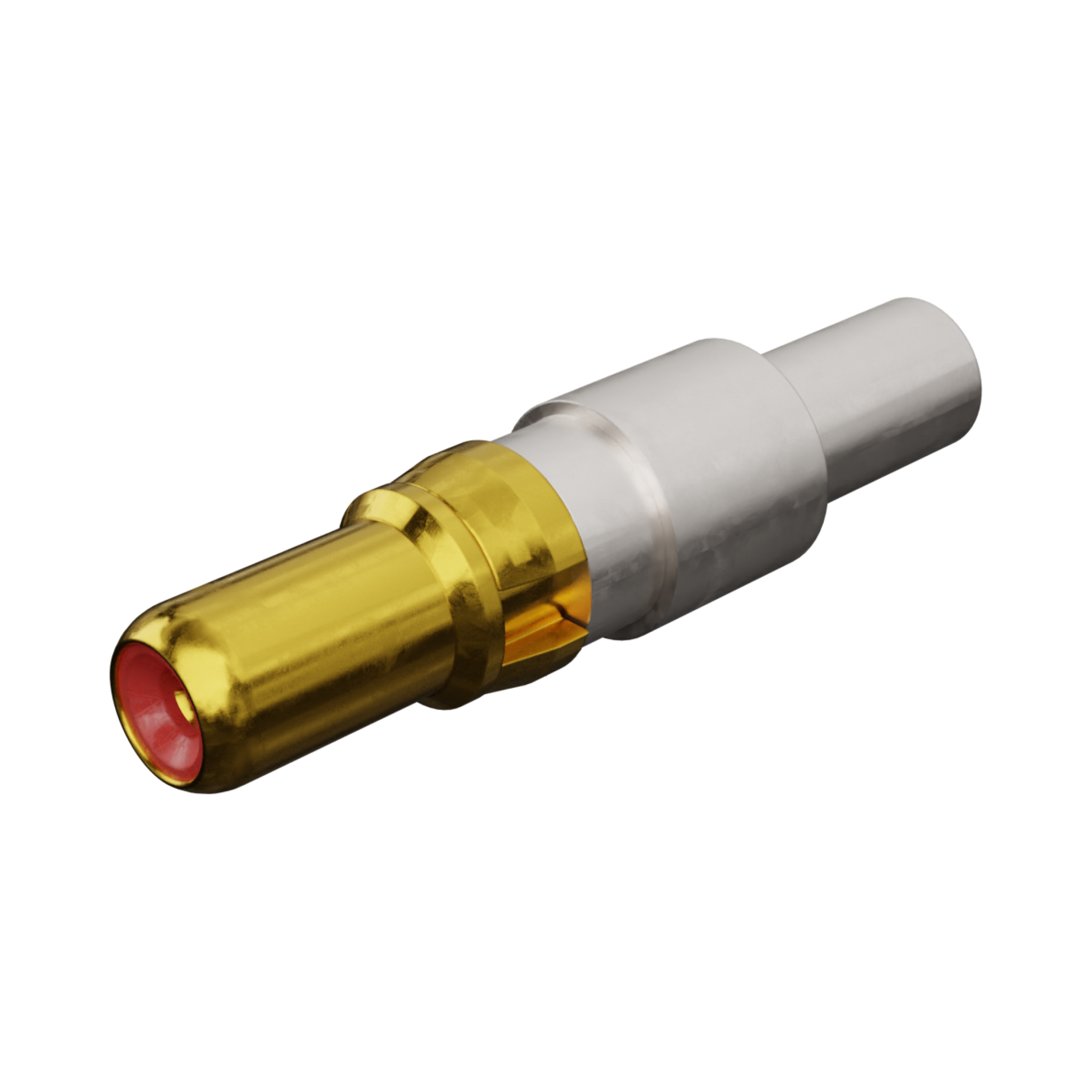

FCT Coaxial Contact, Male, Straight, Crimp, 75 Ohms, 0.20µm Gold Plating, for RG-179BU or RG-187AU Cable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173112-0576,
FMS002P101 |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Impedance | 75Ω |
Physical |
|
|---|---|
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel |
| Material Plating Termination | Tin over Nickel |
| Net Weight | 1.600/g |
| Orientation | Straight |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 5.000µm |
| Temperature Range Operating | -55° to +135°C |
| Termination Style | Crimp |
| Wire Cable Type | RG-179BU, RG-187AU |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub Contact, Pin, Crimp | Newark Electronics |
| D-Sub Contacts FCT TERM HFREQ STR CRP PLG 75 OHM | Sager |
| FMS002P101 FCT TERM HFREQ STR CRP PLG 75 OHM | Heilind Americas |
| FCT TERM HFREQ STR CRP PLG 75 OHM | Farnell |
