1731120626 FCT Products by Molex

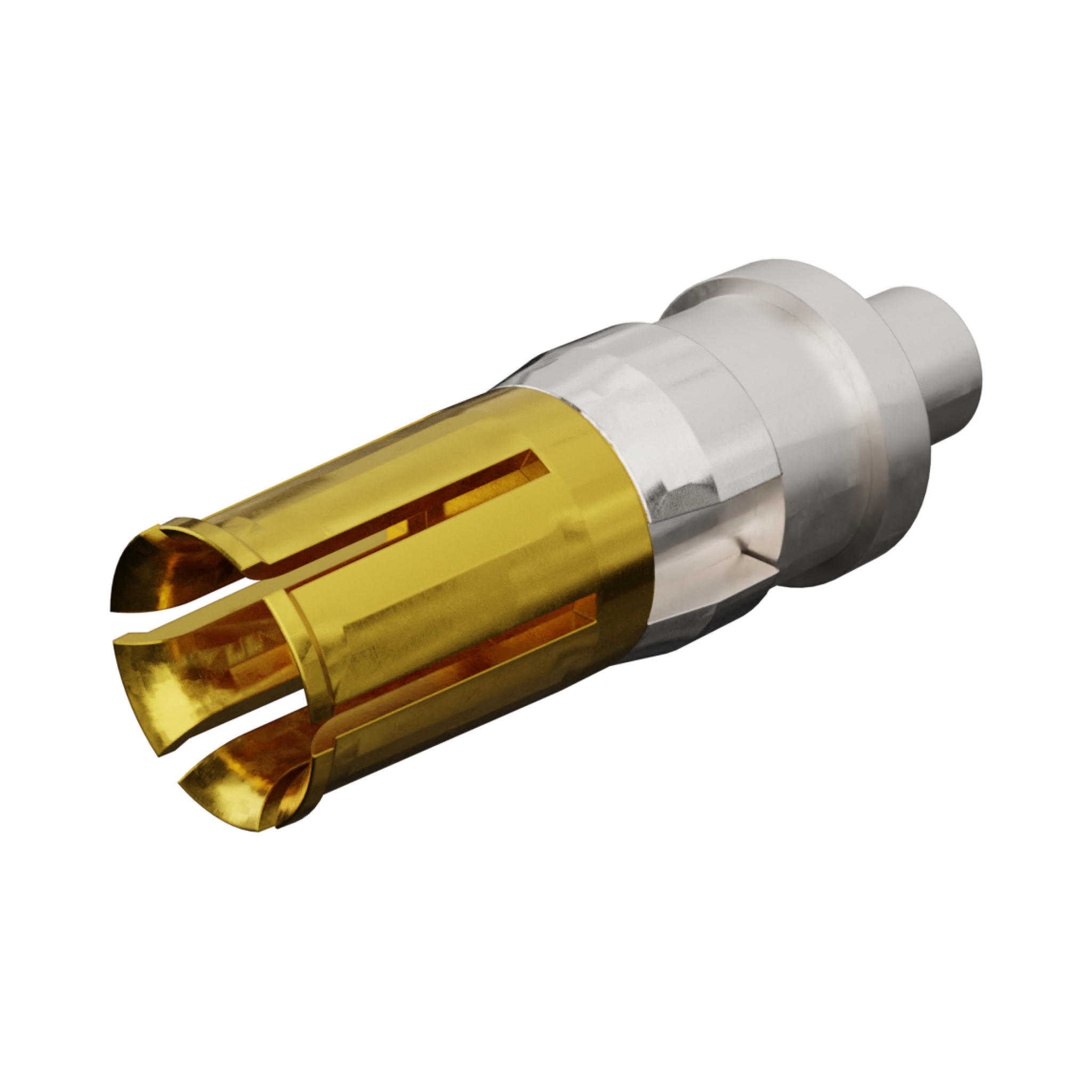

FCT High Power Contact, Female, Straight, PCB Through Hole, 0.20µm Gold Mating Plating, 5.00µm Tin Termination Plating, Split Tine, 20.0A, 3.15mm PCB Drilling Diameter
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173112-0626,
FMP010S105 |
Where to Buy
Prices starting from US$1.33
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$1.71
|
18
in stock
|
Buy Now |
|
Offical Electronic
-
|
719
in stock
|
Buy Now |
|
Newark Electronics
from US$1.99
|
0
in stock
|
Buy Now |
|
Compona
from US$1.74
|
0
in stock
|
Buy Now |
|
element14
from US$2.14
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.88
|
0
in stock
|
Buy Now |
|
Sager
from US$1.33
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$1.65
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.81
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 20.0A |
Physical |
|
|---|---|
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel |
| Material Plating Termination | Tin over Nickel |
| Material Retaining Clip | Copper Alloy |
| Net Weight | 1.400/g |
| Orientation | Straight |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 5.000µm |
| Temperature Range Operating | -55° to +155°C |
| Termination Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FMP010S105 FCT TERM HPWR STR PC RCPT 20 AMP | Heilind Europe |
| D-Sub Contact, Socket, Through Hole | Newark Electronics |
| MOLEX FMP010S105 D-Sub high current socket 20A low cost | Compona |
| FCT TERM HPWR STR PC RCPT 20AM | TTI Europe |
| D-Sub Contacts FCT TERM HPWR STR PC RCPT 20 AMP | Sager |
| FCT TERM HPWR STR PC RCPT 20 AMP | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731120626?
Additional datasheets, footprints and schematics for 1731120626 are listed on our Part Details page. You can also find images and similar parts to 1731120626 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731120626 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731120626 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731120626 fall under?
The 1731120626 is listed under D-Sub Contacts.
Can I view similar or alternative parts?
You can view similar parts to 1731120626 when available in the D-Sub Contacts range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731120626 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731120626 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731120626 have stock available?
Authorised distributors including Heilind Europe, Offical Electronic, Newark Electronics, Compona and element14 have stock available or on a lead time for 1731120626.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731120626 often in real-time on the comparison pages.
What if I can't find stock of 1731120626?
You can fill out our help required form which you can use to request a quote for 1731120626 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
