1731120821 FCT Products by Molex

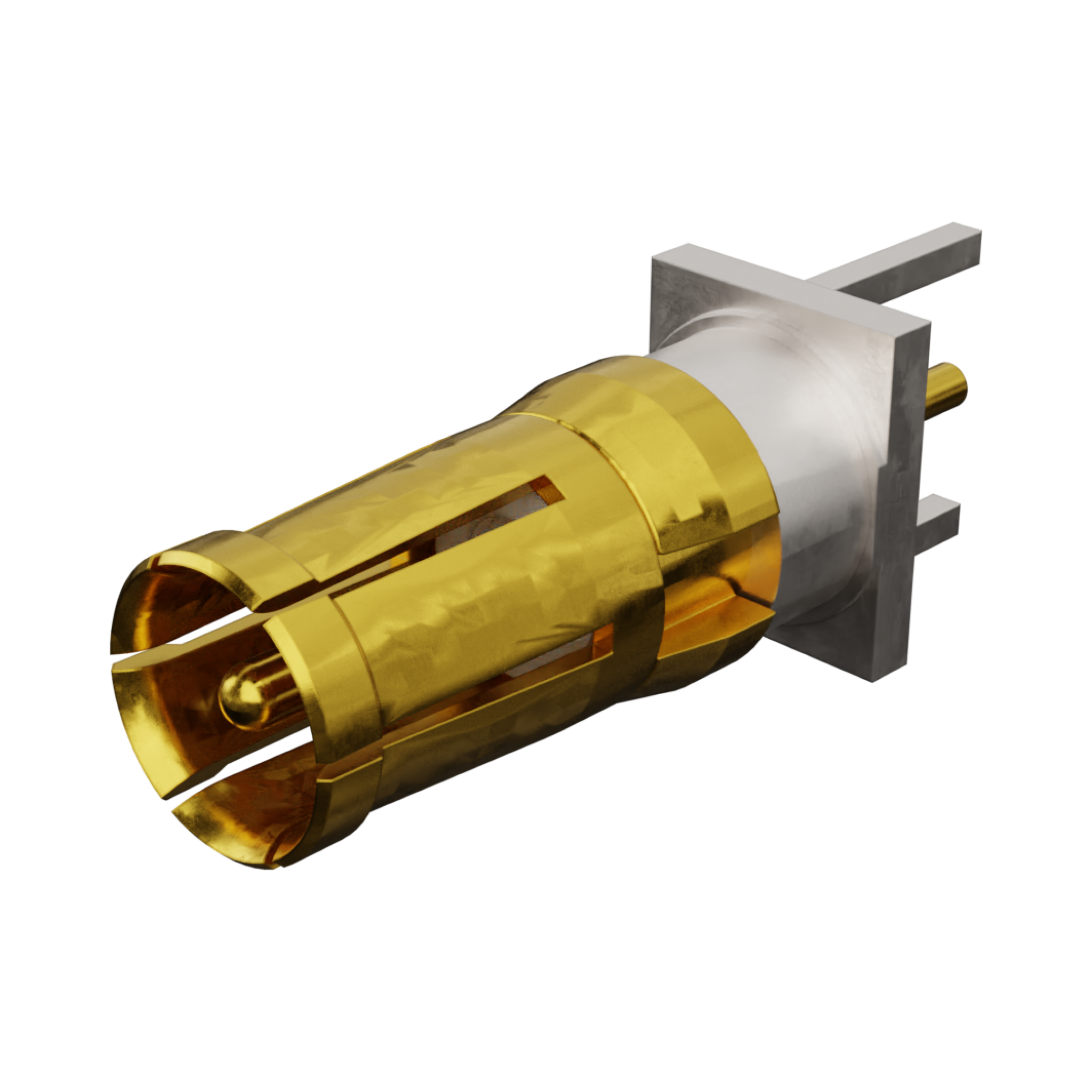

FCT Coaxial Contact, 3 Pins, Female, Straight, PCB Through Hole, 75 Ohms, 0.20µm Gold Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173112-0821,
FME005S101 |
Where to Buy
Prices starting from US$1.54
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Impedance | 75Ω |
Physical |
|
|---|---|
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel |
| Material Plating Termination | Tin over Nickel |
| Net Weight | 3.600/g |
| Orientation | Straight |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 5.000µm |
| Temperature Range Operating | -55° to +135°C |
| Termination Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub Contact, Socket, Through Hole | Newark Electronics |
| D-SUB CONTACT, SOCKET, THROUGH HOLE | element14 |
| D-Sub Contacts FCT TERM HFREQ STR PC RCPT 75 OHM | Sager |
| FME005S101 FCT TERM HFREQ | Heilind Americas |
