1731120914 FCT Products by Molex

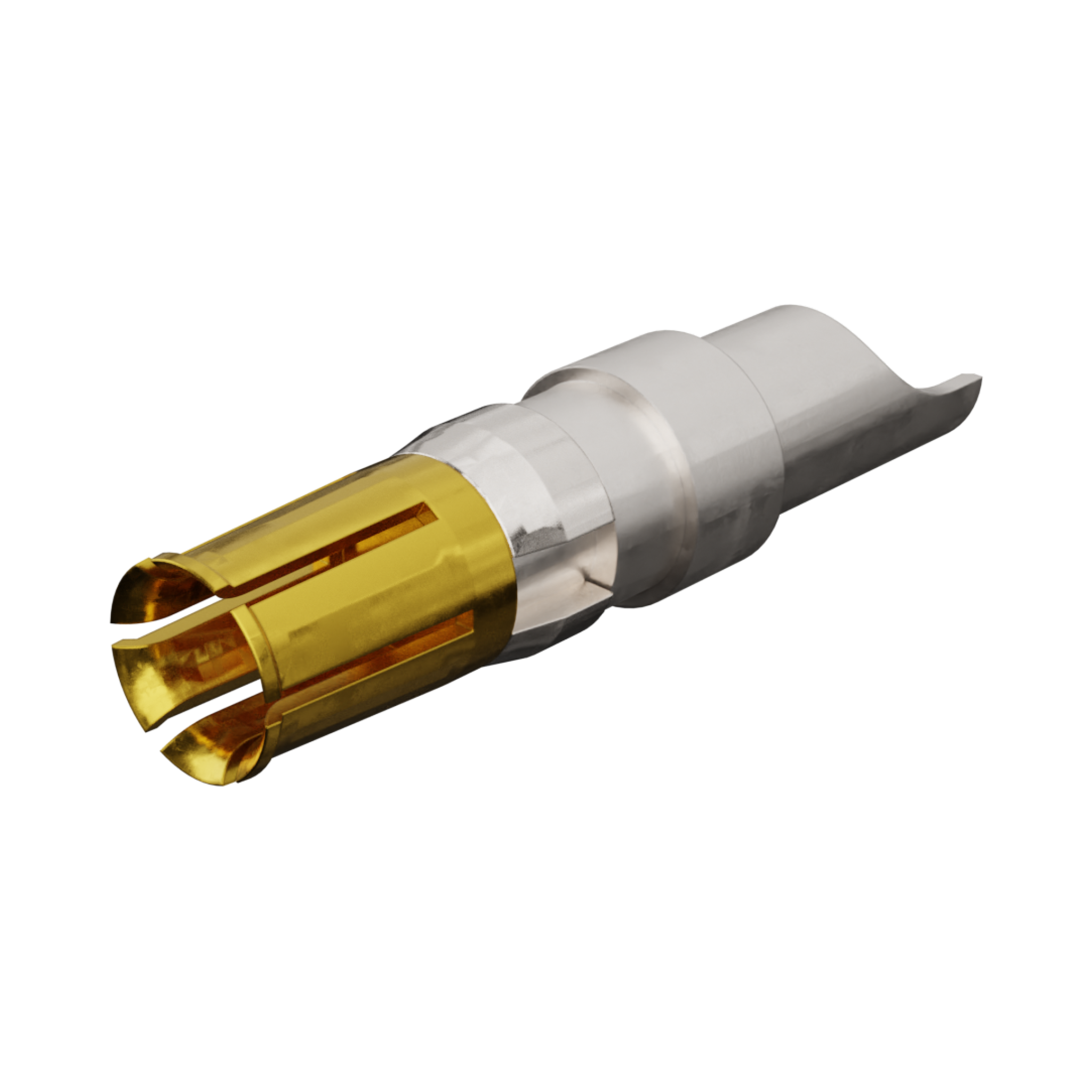

FCT High Power Contact, Female, Straight, Solder Cup, 0.20µm Gold Mating Plating, 5.00µm Tin Termination Plating, Split Tine, 30.0A, 12-10 AWG
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173112-0914,
FMP105S105 |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
Physical |
|
|---|---|
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel |
| Material Plating Termination | Tin over Nickel |
| Material Retaining Clip | Copper Alloy |
| Net Weight | 1.900/g |
| Orientation | Straight |
| Plating Min Mating | 0.200µm |
| Plating Min Termination | 5.000µm |
| Temperature Range Operating | -55° to +155°C |
| Termination Style | Solder Cup |
| Wire Size Awg | 10, 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D-Sub Contact, Socket, Solder | Newark Electronics |
| D-Sub Contacts FCT TERM HPWR SDR RCPT 30 AMP 10-12 AWG | Sager |
| FMP105S105 FCT TERM HPWR | Heilind Americas |
| FCT TERM HPWR SDR RCPT 30 AMP 10-12 AWG | Farnell |
