1731121063 FCT Products by Molex

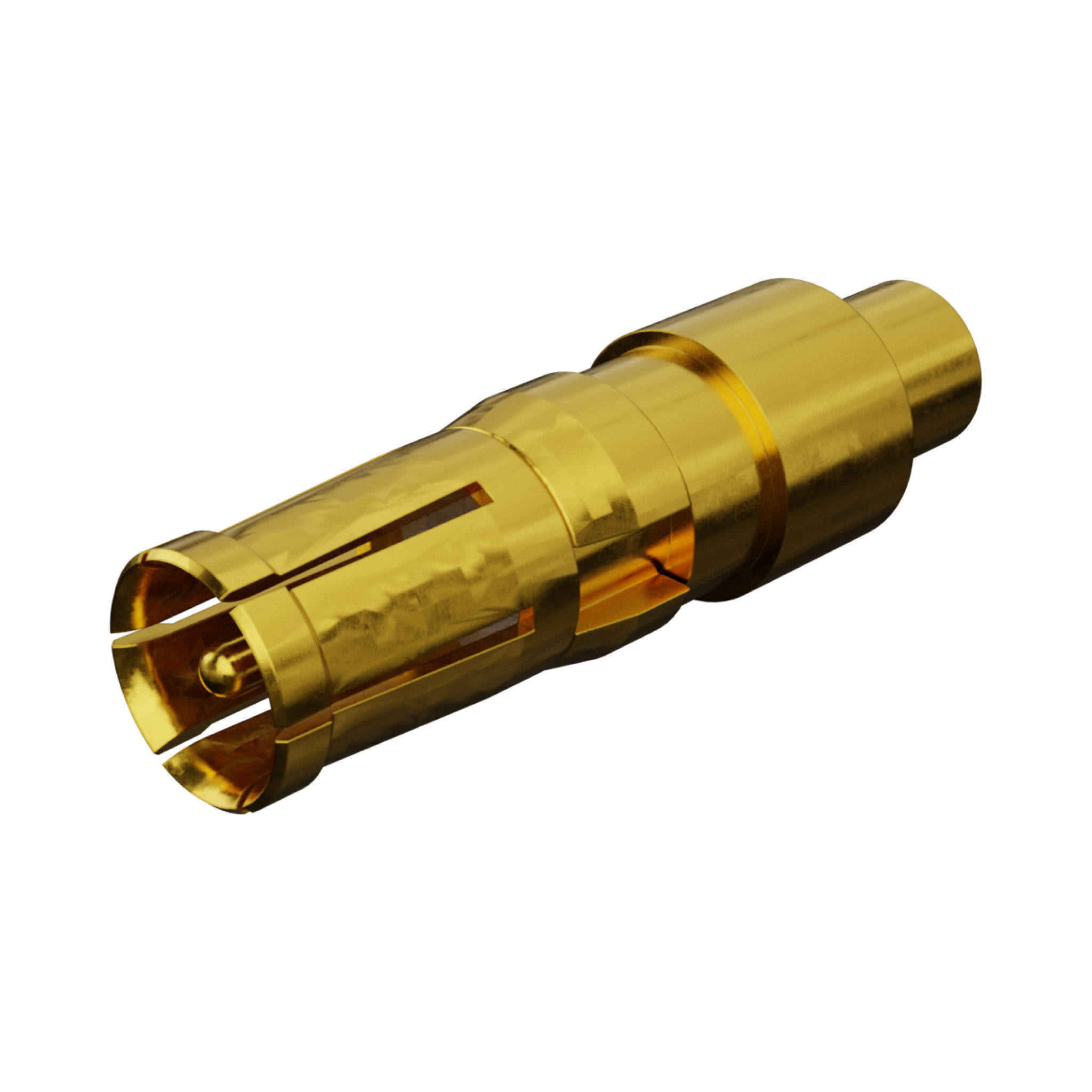

FCT Coaxial Contact, Female, Straight, Solder Cable Termination, 75 Ohms, 0.10µm Gold over Nickel Phosphorus Plating, Short Version, for RG-179BU or RG-187AU Cable
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Unknown |
| Aliases: |
173112-1063,
FMX002S202 |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.0A |
| Impedance | 75Ω |
Physical |
|
|---|---|
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Plating Mating | Gold over Nickel Phosphorus |
| Material Plating Termination | Gold over Nickel |
| Net Weight | 2.500/g |
| Orientation | Straight |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.200µm |
| Temperature Range Operating | -55° to +135°C |
| Termination Style | Solder/Crimp |
| Wire Cable Type | RG-179BU, RG-187AU |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Term Hfreq Sdr/Crp Rcpt 75 Ohm |Molex 173112-1063 | Newark Electronics |
| Molex FCT TERM HFREQ SDR/CRP RCPT 75 OHM | Sager |
| D-SUB CONTACT, SOCKET, SOLDER | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731121063?
Additional datasheets, footprints and schematics for 1731121063 are listed on our Part Details page. You can also find images and similar parts to 1731121063 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731121063 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731121063 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731121063 fall under?
The 1731121063 is listed under D-Sub Contacts.
Can I view similar or alternative parts?
You can view similar parts to 1731121063 when available in the D-Sub Contacts range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731121063 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731121063 RoHS compliant?
This part has not been flagged as RoHS Compliant.
Which authorised distributors for 1731121063 have stock available?
Authorised distributors including Newark Electronics, Sager and Farnell have stock available or on a lead time for 1731121063.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731121063 often in real-time on the comparison pages.
What if I can't find stock of 1731121063?
You can fill out our help required form which you can use to request a quote for 1731121063 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
