1731130001 FCT Products by Molex

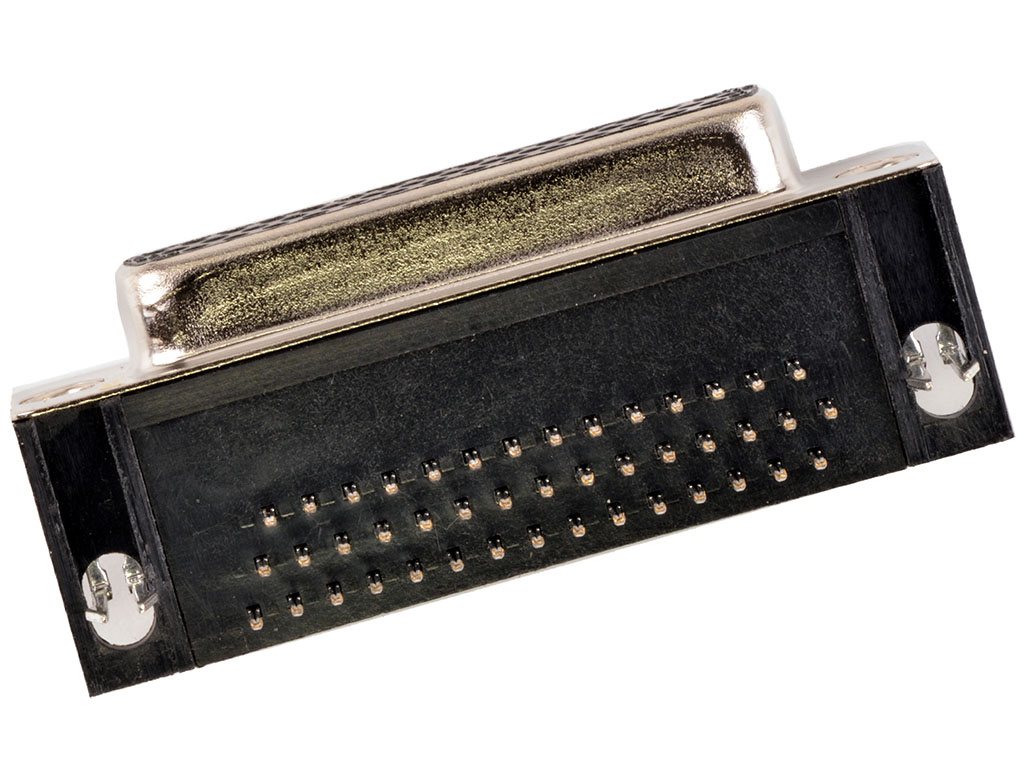

FCT High-Density D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Grounding Bracket with Snap-in, 44 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0001,
CT25-44S5-L228 |
Where to Buy
Prices starting from US$2.32
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$6.78
|
75
in stock
|
Buy Now |
|
Farnell
from US$10.85
|
68
in stock
|
Buy Now |
|
Newark Electronics
from US$2.32
|
37
in stock
|
Buy Now |
|
Offical Electronic
-
|
48
in stock
|
Buy Now |
|
Compona
from US$4.47
|
0
in stock
|
Buy Now |
|
element14
from US$6.13
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$5.23
|
0
in stock
|
Buy Now |
|
Sager
from US$4.25
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.77
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 44 |
| Circuits Maximum | 44 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Number Of Rows | 3 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.55mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: D-Sub HD | TME |
| D SUB CONNECTORS D SUBMINIATURE | Farnell |
| Fct Hd Dsub Ra Pc Rcpt 44 Pn W/Snapin Rohs Compliant: Yes |Molex/fct 173113-0001 | Newark Electronics |
| MOLEX CT25-44S5-L228 D-Sub Connector female HD 44p, 90° | Compona |
| HD-D SUB CONNECTOR, RCPT, DB, 44POS, TH | element14 |
| FCT HD DSUB RA PC RCPT 44 PN | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB RA PC RCPT 44 PN W/CLINCH | Sager |
| CT25-44S5-L228 FCT HD DSUB RA PC RCPT 44 PN W/SNAPIN | Heilind Americas |
