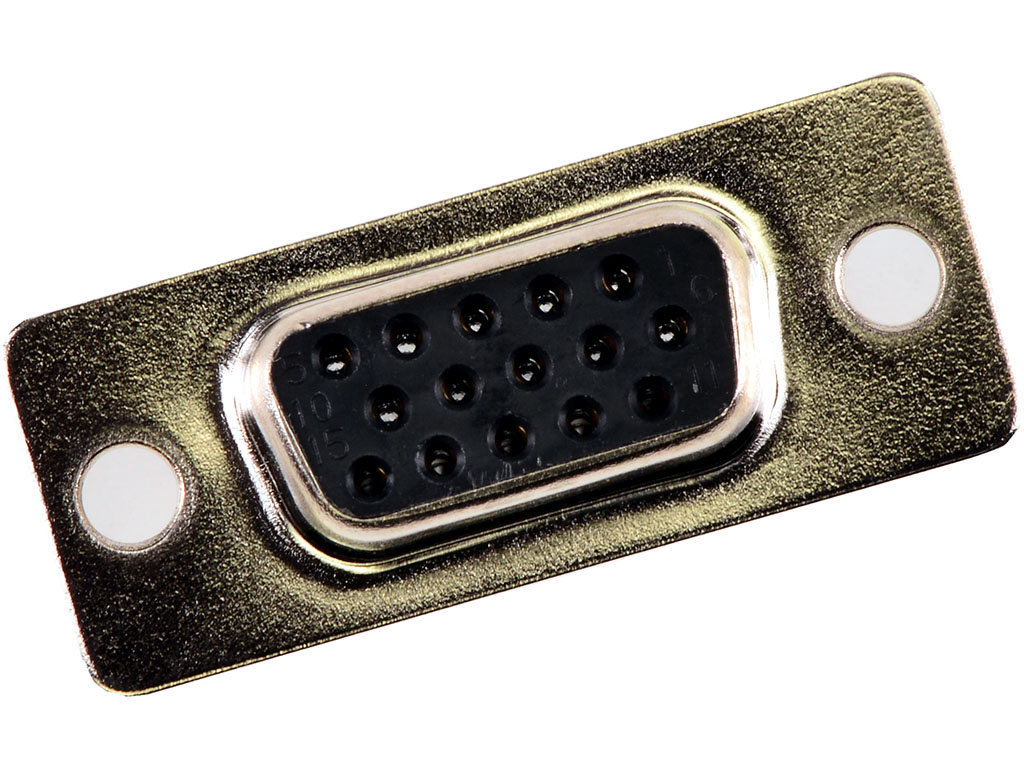

1731130059 FCT Products by Molex
FCT High-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0059,
CT09-15S |
Where to Buy
Prices starting from US$0.74
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$0.95
|
4,871
in stock
|
Buy Now |
|
TME
from US$1.17
|
464
in stock
|
Buy Now |
|
Rapid Electronics
from US$2.31
|
201
in stock
|
Buy Now |
|
Conrad
from US$2.52
|
201
in stock
|
Buy Now |
|
element14
from US$1.30
|
25
in stock
|
Buy Now |
|
Offical Electronic
-
|
2,631
in stock
|
Buy Now |
|
Rutronik
from US$0.74
|
0
in stock
|
Buy Now |
|
RS
from US$3.15
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$1.43
|
0
in stock
|
Buy Now |
|
Compona
from US$0.87
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.33
|
0
in stock
|
Buy Now |
|
Sager
from US$0.85
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$0.87
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.05
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 6.000/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 22 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CT09-15S FCT HD DSUB SDR RCPT 15 PN | Heilind Europe |
| Connector: D-Sub | TME |
| Molex 1731130059 D-sub Plug 15 Pins Female Gold Plating Solder Cup | Rapid Electronics |
| Molex 1731130059 D-SUB Stecker Polzahl: 15 Löten 1 St. | Conrad |
| HD-D SUB CONN, RCPT, DE, 15POS, SOLDER | element14 |
| 15P D-Sub HD | Rutronik |
| FCT from Molex CT09-15S / 1731130059 | RS |
| Hd-D Sub Conn, Rcpt, De, 15Pos, Solder | Newark Electronics |
| MOLEX CT09-15S D-Sub Connector female HD 15p | Compona |
| SOLD. POT D-SUB HD | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB REC 15P | Sager |
| FCT HD DSUB SDR RCPT 15 PN | Farnell |
