1731130062 FCT Products by Molex

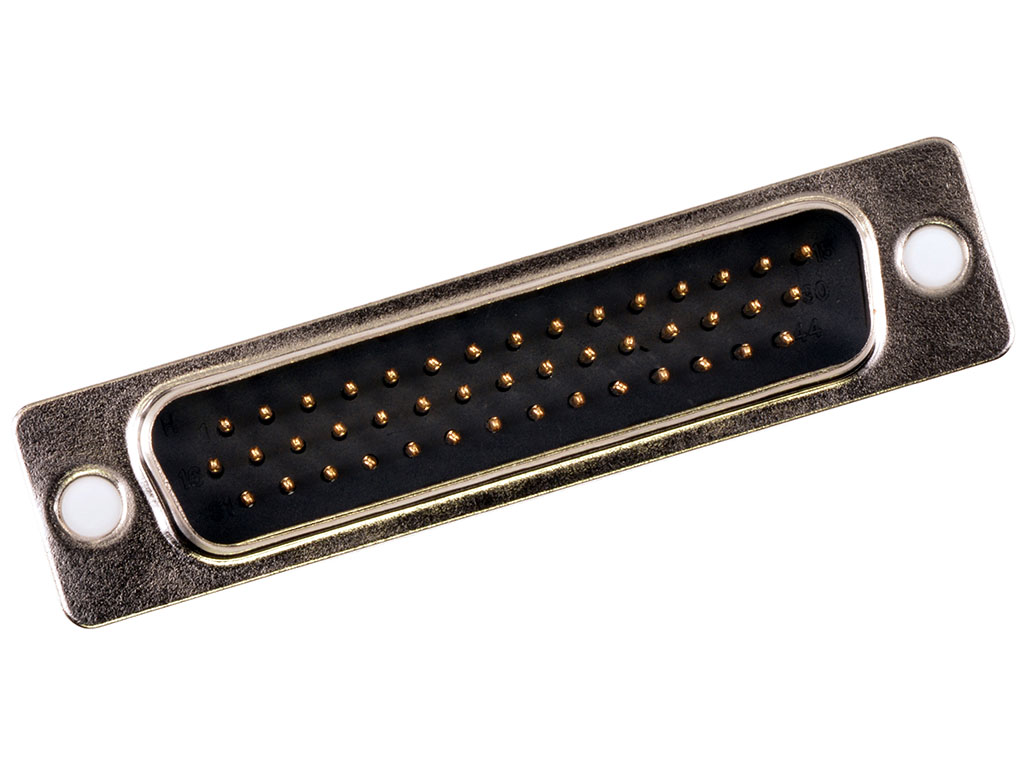

FCT High-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 44 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0062,
CT25-44P |
Where to Buy
Prices starting from US$2.20
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$2.70
|
80
in stock
|
Buy Now |
|
Newark Electronics
from US$3.75
|
42
in stock
|
Buy Now |
|
element14
from US$3.43
|
42
in stock
|
Buy Now |
|
Farnell
from US$4.09
|
42
in stock
|
Buy Now |
|
Offical Electronic
-
|
293
in stock
|
Buy Now |
|
RS
from US$7.18
|
0
in stock
|
Buy Now |
|
Compona
from US$2.20
|
0
in stock
|
Buy Now |
|
Conrad
from US$5.00
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.62
|
0
in stock
|
Buy Now |
|
Sager
from US$2.29
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$2.34
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 44 |
| Circuits Maximum | 44 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 22 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CT25-44P FCT HD DSUB SDR PLG 44 PN | Heilind Europe |
| Hd-D Sub Conn, Plug, Db, 44Pos, Solder | Newark Electronics |
| HD-D SUB CONN, PLUG, DB, 44POS, SOLDER | element14 |
| FCT from Molex CT25-44P / 1731130062 | RS |
| MOLEX CT25-44P D-Sub Male connector HD 44p | Compona |
| Molex 1731130062 D-SUB Steckverbinder Polzahl: 44 Lötkelch 1 St. | Conrad |
| FCT HD DSUB SDR PLG 44 PN | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB SDR PLG 44 PN | Sager |
