1731130065 FCT Products by Molex

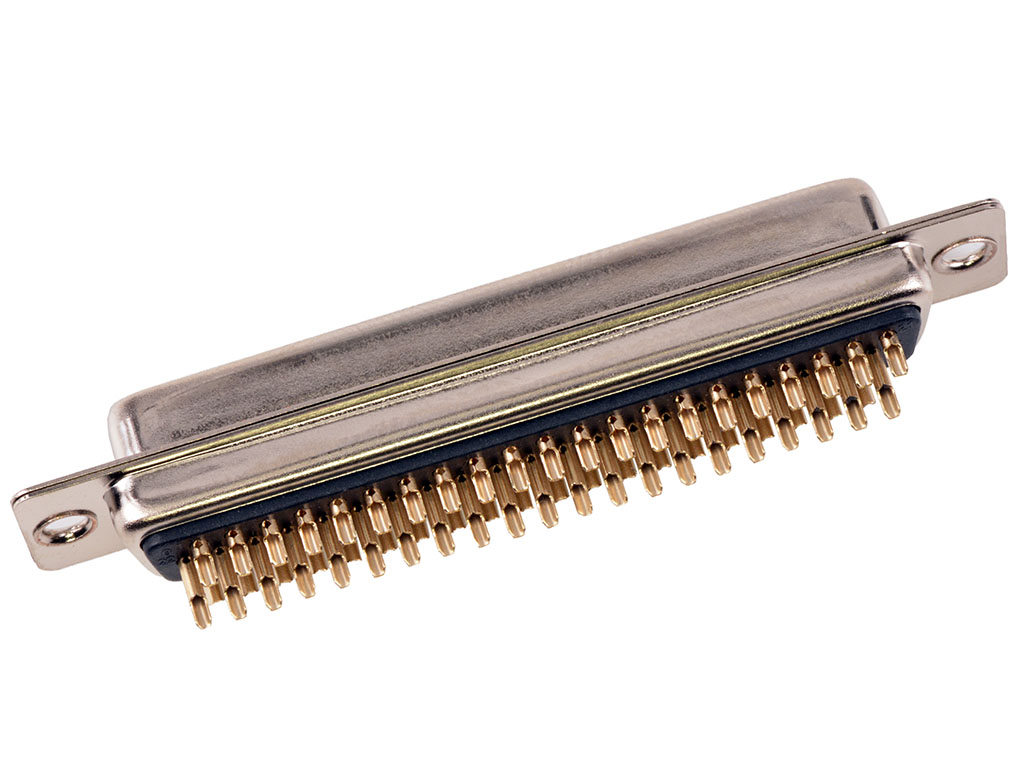

FCT High-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 62 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0065,
CT37-62S |
Where to Buy
Prices starting from US$3.02
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$3.49
|
715
in stock
|
Buy Now |
|
Farnell
from US$6.83
|
644
in stock
|
Buy Now |
|
Newark Electronics
from US$4.60
|
24
in stock
|
Buy Now |
|
element14
from US$6.24
|
24
in stock
|
Buy Now |
|
Offical Electronic
-
|
1,964
in stock
|
Buy Now |
|
RS
from US$6.08
|
0
in stock
|
Buy Now |
|
Compona
from US$3.02
|
0
in stock
|
Buy Now |
|
Sager
from US$3.12
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.40
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 62 |
| Circuits Maximum | 62 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 16.000/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 22 |
| Shell Size | 4 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: D-Sub HD | TME |
| FCT HD DSUB SDR RCPT 62 PN | Farnell |
| Hd-D Sub Conn, Rcpt, Dc, 62Pos, Solder | Newark Electronics |
| HD-D SUB CONN, RCPT, DC, 62POS, SOLDER | element14 |
| Molex 173113-0065 | RS |
| MOLEX CT37-62S D-Sub Female connector HD 62p | Compona |
| D-Sub High Density Connectors FCT HD DSUB SDR RCPT 62 PN | Sager |
| CT37-62S FCT HD DSUB SDR RCPT 62 PN | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731130065?
Additional datasheets, footprints and schematics for 1731130065 are listed on our Part Details page. You can also find images and similar parts to 1731130065 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731130065 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731130065 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731130065 fall under?
The 1731130065 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731130065 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731130065 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731130065 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731130065 have stock available?
Authorised distributors including TME, Farnell, Newark Electronics, element14 and Offical Electronic have stock available or on a lead time for 1731130065.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731130065 often in real-time on the comparison pages.
What if I can't find stock of 1731130065?
You can fill out our help required form which you can use to request a quote for 1731130065 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
