1731130066 FCT Products by Molex

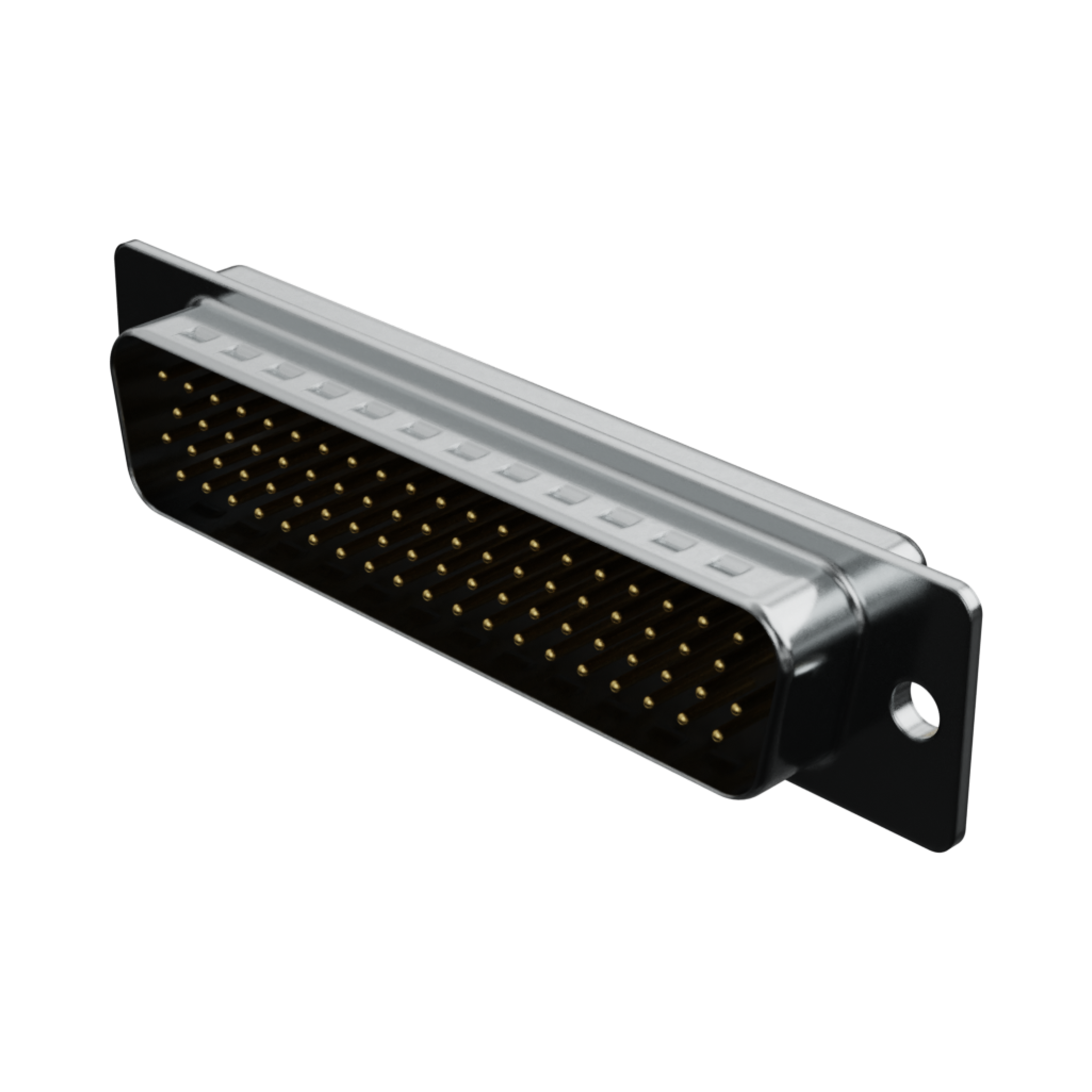

FCT High-Density D-Sub Connector, Male, Straight, Solder Cup, Gold Plating, 78 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0066,
CT50-78P |
Where to Buy
Prices starting from US$5.28
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.28
|
189
in stock
|
Buy Now |
|
TME
from US$8.59
|
42
in stock
|
Buy Now |
|
Conrad
from US$13.06
|
42
in stock
|
Buy Now |
|
Farnell
from US$14.14
|
38
in stock
|
Buy Now |
|
Offical Electronic
-
|
535
in stock
|
Buy Now |
|
Compona
from US$5,758.61
|
0
in stock
|
Buy Now |
|
element14
from US$9.07
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$6.98
|
0
in stock
|
Buy Now |
|
Sager
from US$6.44
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$6.80
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.94
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 78 |
| Circuits Maximum | 78 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 18.000/g |
| Number Of Rows | 4 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.08mm |
| Pitch Termination Interface | 2.08mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 22 |
| Shell Size | 5 |
