1731130067 FCT Products by Molex

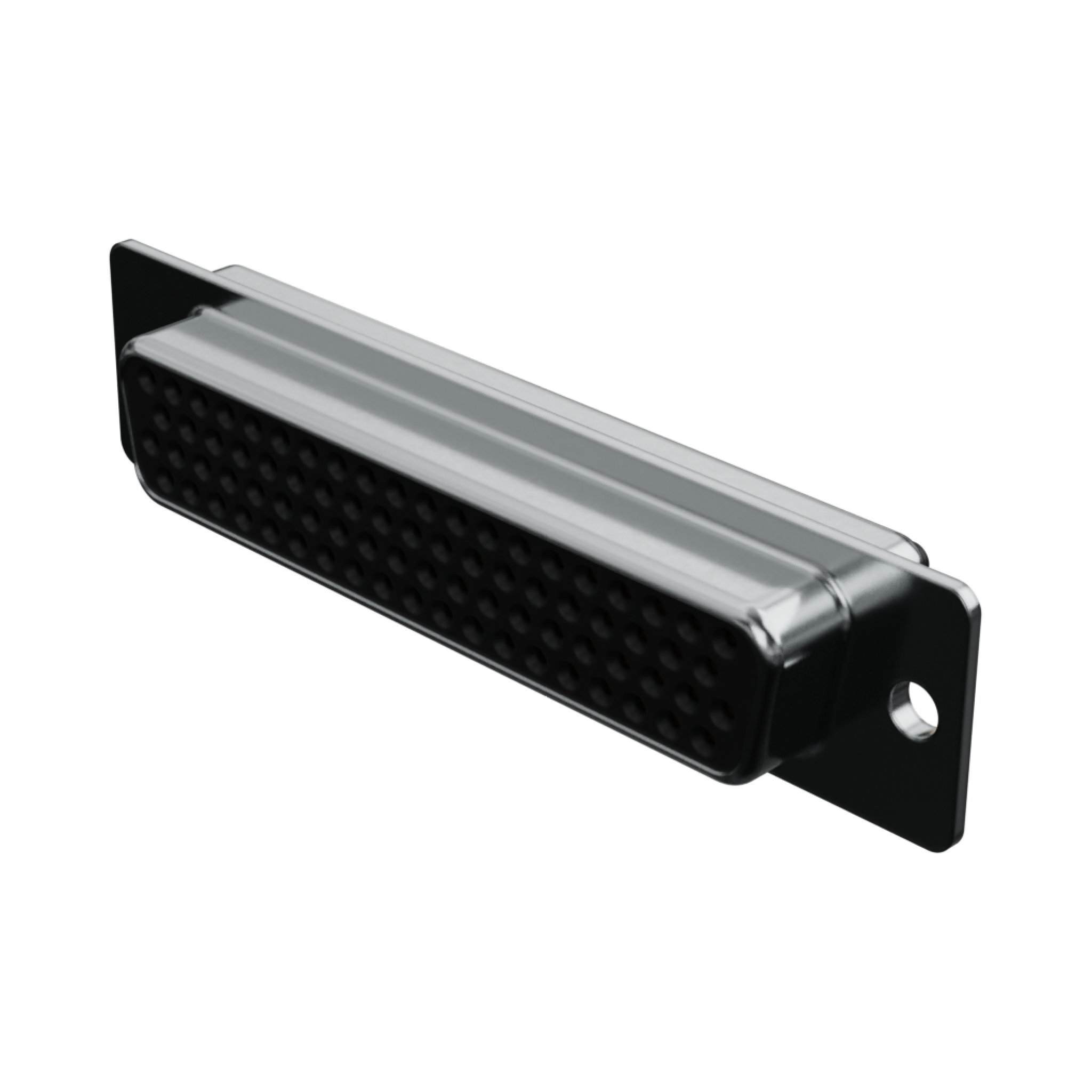

FCT High-Density D-Sub Connector, Female, Straight, Solder Cup, Gold Plating, 78 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0067,
CT50-78S |
Where to Buy
Prices starting from US$5.10
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$5.70
|
330
in stock
|
Buy Now |
|
RS
from US$13.00
|
37
in stock
|
Buy Now |
|
Rapid Electronics
from US$13.15
|
13
in stock
|
Buy Now |
|
Conrad
from US$6.37
|
13
in stock
|
Buy Now |
|
Newark Electronics
from US$8.68
|
2
in stock
|
Buy Now |
|
element14
from US$6.99
|
2
in stock
|
Buy Now |
|
Farnell
from US$8.36
|
2
in stock
|
Buy Now |
|
Offical Electronic
-
|
171
in stock
|
Buy Now |
|
Compona
from US$5.10
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$5.87
|
0
in stock
|
Buy Now |
|
Sager
from US$5.43
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$5.57
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 78 |
| Circuits Maximum | 78 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Number Of Rows | 4 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 2.08mm |
| Pitch Termination Interface | 2.08mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Solder Cup |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 22 |
| Shell Size | 5 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CT50-78S FCT HD DSUB SDR RCPT 78 PN | Heilind Europe |
| FCT HD DSUB SDR RCPT 78 PN | RS |
| Molex 1731130067 D-sub Connector High-density Female Straight 78-pin | Rapid Electronics |
| Molex 1731130067 D-SUB Steckverbinder 1 St. | Conrad |
| Hd-D Sub Conn, Rcpt, Dd, 78Pos, Solder | Newark Electronics |
| HD-D SUB CONN, RCPT, DD, 78POS, SOLDER | element14 |
| MOLEX CT50-78S D-Sub Female connector HD 78p | Compona |
| SOLD. POT D-SUB HD | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB SDR RCPT 78 PN | Sager |
