1731130078 FCT Products by Molex

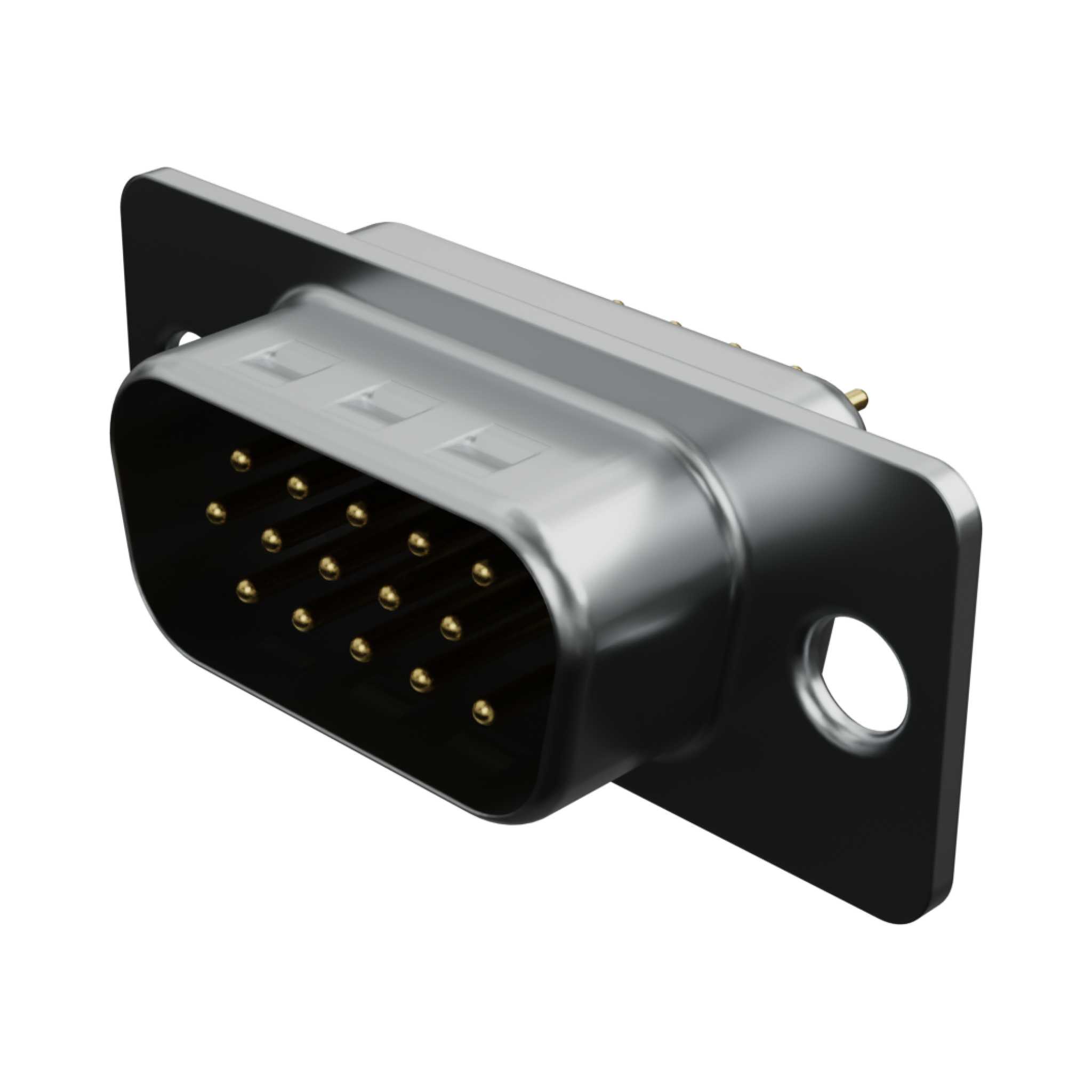

FCT High-Density D-Sub Connector, Male, Straight, PCB Through Hole, Gold Plating, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0078,
CT09-15P1 |
Where to Buy
Prices starting from US$0.98
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$2.21
|
415
in stock
|
Buy Now |
|
Conrad
from US$5.83
|
415
in stock
|
Buy Now |
|
Farnell
from US$3.90
|
374
in stock
|
Buy Now |
|
Newark Electronics
from US$0.98
|
184
in stock
|
Buy Now |
|
Offical Electronic
-
|
60
in stock
|
Buy Now |
|
RS
from US$4.84
|
0
in stock
|
Buy Now |
|
Compona
from US$2.03
|
0
in stock
|
Buy Now |
|
element14
from US$2.72
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$2.26
|
0
in stock
|
Buy Now |
|
Sager
from US$1.97
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.01
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 5.000/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.50mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
