1731130080 FCT Products by Molex

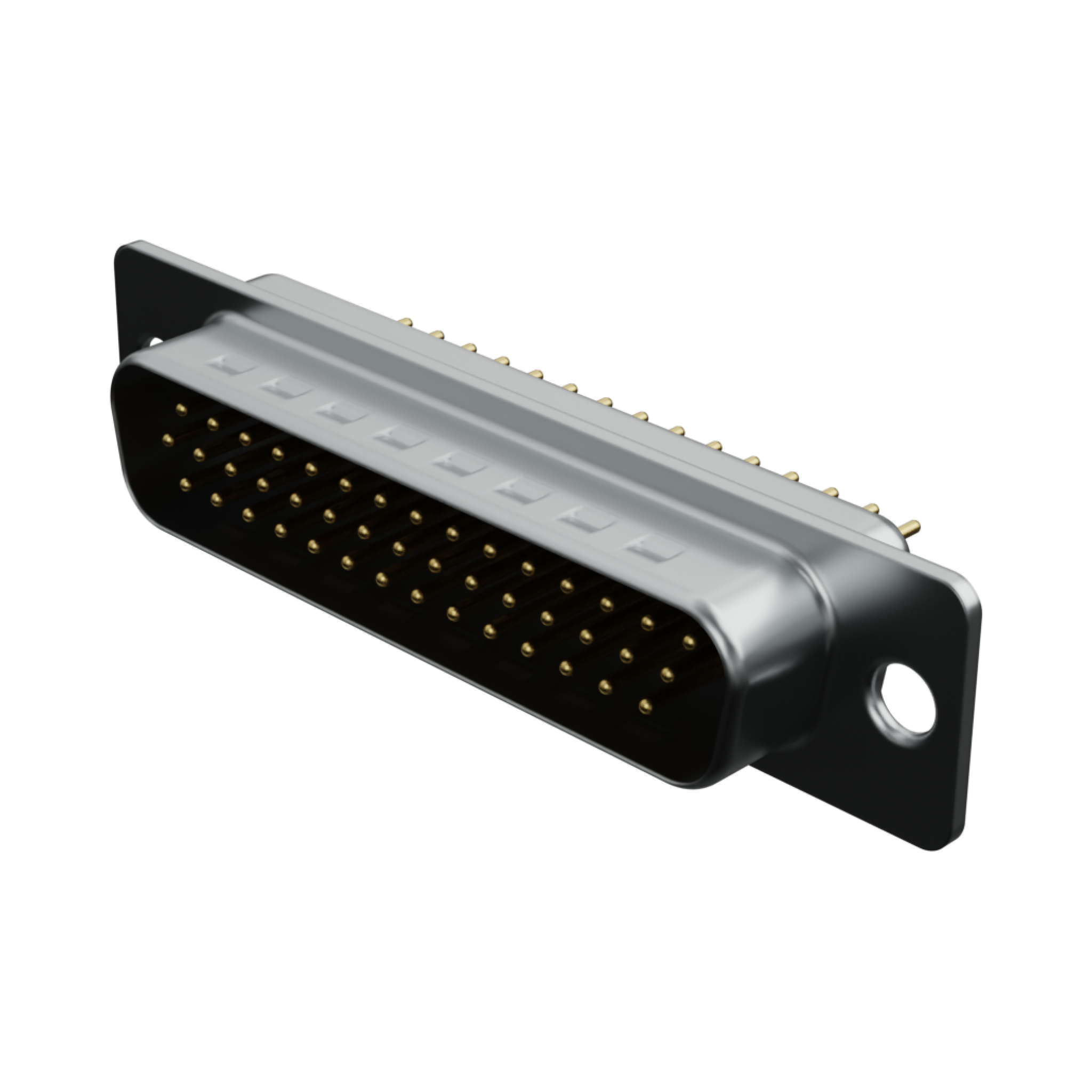

FCT High-Density D-Sub Connector, Male, Straight, PCB Through Hole, Gold Plating, 44 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0080,
CT25-44P1 |
Where to Buy
Prices starting from US$5.23
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$5.80
|
150
in stock
|
Buy Now |
|
Newark Electronics
from US$9.66
|
100
in stock
|
Buy Now |
|
element14
from US$7.40
|
100
in stock
|
Buy Now |
|
Farnell
from US$9.60
|
100
in stock
|
Buy Now |
|
Conrad
from US$10.72
|
0
in stock
|
Buy Now |
|
Sager
from US$5.34
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.47
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.23
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 44 |
| Circuits Maximum | 44 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 11.000/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.50mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FCT HD DSUB STR PC PLG 44 PN | TTI Europe |
| Hd-D Sub Connector, Plug, Db, 44Pos, Th | Newark Electronics |
| HD-D SUB CONNECTOR, PLUG, DB, 44POS, TH | element14 |
| Molex 1731130080 D-SUB Steckverbinder Polzahl: 44 Lötpins 1 St. | Conrad |
| D-Sub High Density Connectors FCT HD DSUB STR PC PLG 44 PN | Sager |
| CT25-44P1 FCT HD DSUB STR PC PLG 44 PN | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731130080?
Additional datasheets, footprints and schematics for 1731130080 are listed on our Part Details page. You can also find images and similar parts to 1731130080 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731130080 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731130080 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731130080 fall under?
The 1731130080 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731130080 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731130080 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731130080 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731130080 have stock available?
Authorised distributors including TTI Europe, Newark Electronics, element14, Farnell and Conrad have stock available or on a lead time for 1731130080.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731130080 often in real-time on the comparison pages.
What if I can't find stock of 1731130080?
You can fill out our help required form which you can use to request a quote for 1731130080 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
