1731130099 FCT Products by Molex

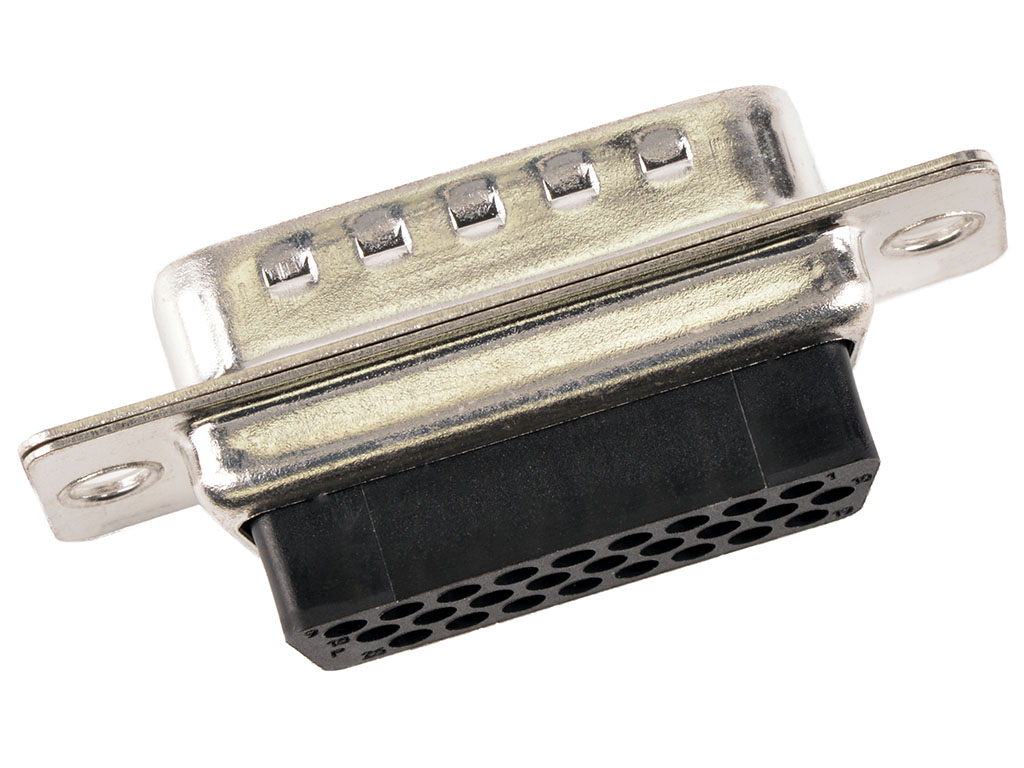

FCT High-Density D-Sub Crimp Housing, Male, 26 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0099,
FL15-26P7 |
Where to Buy
Prices starting from US$1.39
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$1.66
|
600
in stock
|
Buy Now |
|
RS
from US$4.41
|
115
in stock
|
Buy Now |
|
Heilind Americas
from US$1.76
|
6
in stock
|
Buy Now |
|
Newark Electronics
from US$2.19
|
0
in stock
|
Buy Now |
|
Compona
from US$1.39
|
0
in stock
|
Buy Now |
|
element14
from US$1.99
|
0
in stock
|
Buy Now |
|
Sager
from US$1.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.39
|
0
in stock
|
Buy Now |
|
Farnell
from US$1.65
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.19
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 0 |
| Circuits Maximum | 26 |
| Color Resin | Black |
| Gender | Male |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 5.300/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Flange |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Crimp |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Wire Size Awg | 22, 24, 26, 28 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| HPD HIGH-DENSITY D-SUB 26CIRCU | TTI Europe |
| FCT from Molex FL15-26P7 / 1731130099 | RS |
| FL15-26P7 FCT HD DSUB CRP PLG 26 PN | Heilind Americas |
| Hd D-Sub Housing, Plug, 26Pos, Steel | Newark Electronics |
| MOLEX FL15-26P7 D-Sub High density 26p male | Compona |
| HD D-SUB HOUSING, PLUG, 26POS, STEEL | element14 |
| D-Sub High Density Connectors FCT HD DSUB CRP PLG 26 PN | Sager |
| FCT HD DSUB CRP PLG 26 PN | Farnell |
| FCT HD DSUB | TTI Asia |
