1731130133 FCT Products by Molex

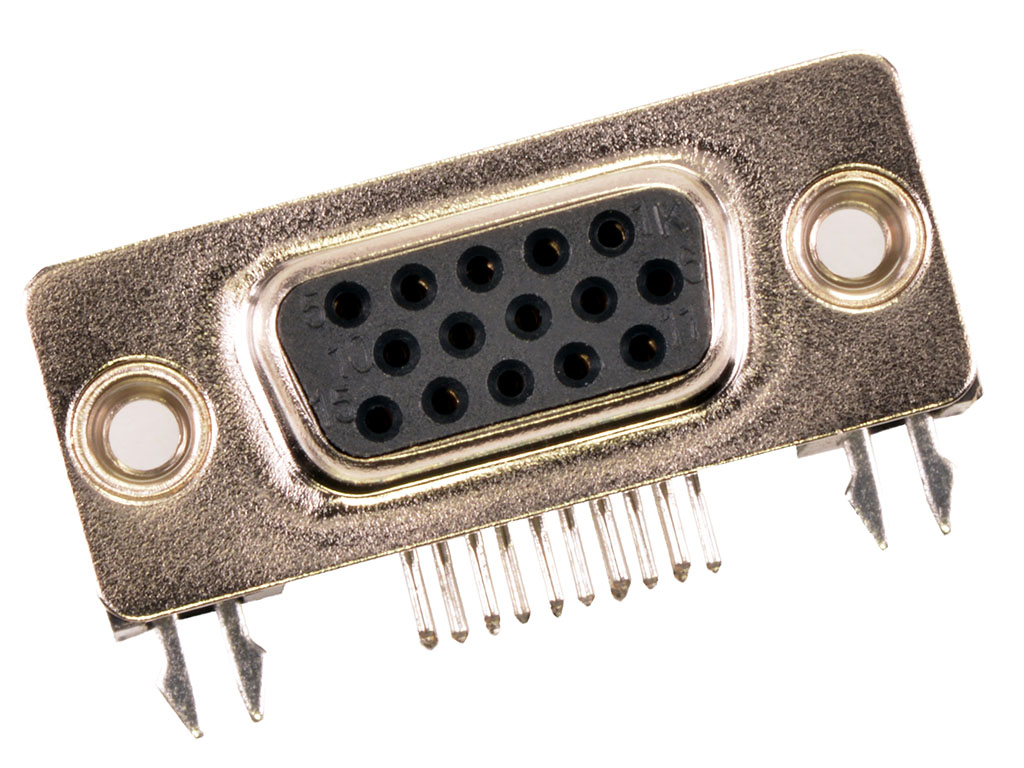

FCT High-Density D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Grounding Bracket with Snap-in, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0133,
CT09-15S5-L228 |
Where to Buy
Prices starting from US$0.89
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.82
|
370
in stock
|
Buy Now |
|
Farnell
from US$2.43
|
370
in stock
|
Buy Now |
|
Conrad
from US$1.43
|
10
in stock
|
Buy Now |
|
Offical Electronic
-
|
70
in stock
|
Buy Now |
|
Avnet America
from US$0.89
|
0
in stock
|
Buy Now |
|
TME
from US$1.31
|
0
in stock
|
Buy Now |
|
RS Americas
from US$3.08
|
0
in stock
|
Buy Now |
|
Compona
from US$0.99
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.08
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.16
|
0
in stock
|
Buy Now |
|
Sager
from US$0.92
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.95
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.94
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 11.000/g |
| Number Of Rows | 3 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.55mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Hd-D Sub Connector, Rcpt, De, 15Pos, Th | Newark Electronics |
| HD-D SUB CONNECTOR, RCPT, DE, 15POS, TH | Farnell |
| Molex 1731130133 D-SUB Stecker Polzahl: 15 Löten 1 St. | Conrad |
| Conn High Density D Subminiature SKT 15 POS RA Solder Snap-In PCB Mount | Avnet America |
| Connector: D-Sub | TME |
| PLASTIC BACKSHELL FOR D-SUB, SHIELDED, SHELL SIZE 1, 70 ANGLE CABLE, LOCK SCREW | RS Americas |
| MOLEX CT09-15S5-L228 D-Sub Connector female HD 15p, 90° | Compona |
| FCT HD DSUB | TTI Americas |
| PCB ANGL. HIGH DENSITSY D-SUB | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB RA PC RCPT 15 PN W/CLINCH | Sager |
| CT09-15S5-L228 FCT HD DSUB RA PC RCPT 15 PN W/CLINCH | Heilind Americas |
