1731130140 FCT Products by Molex

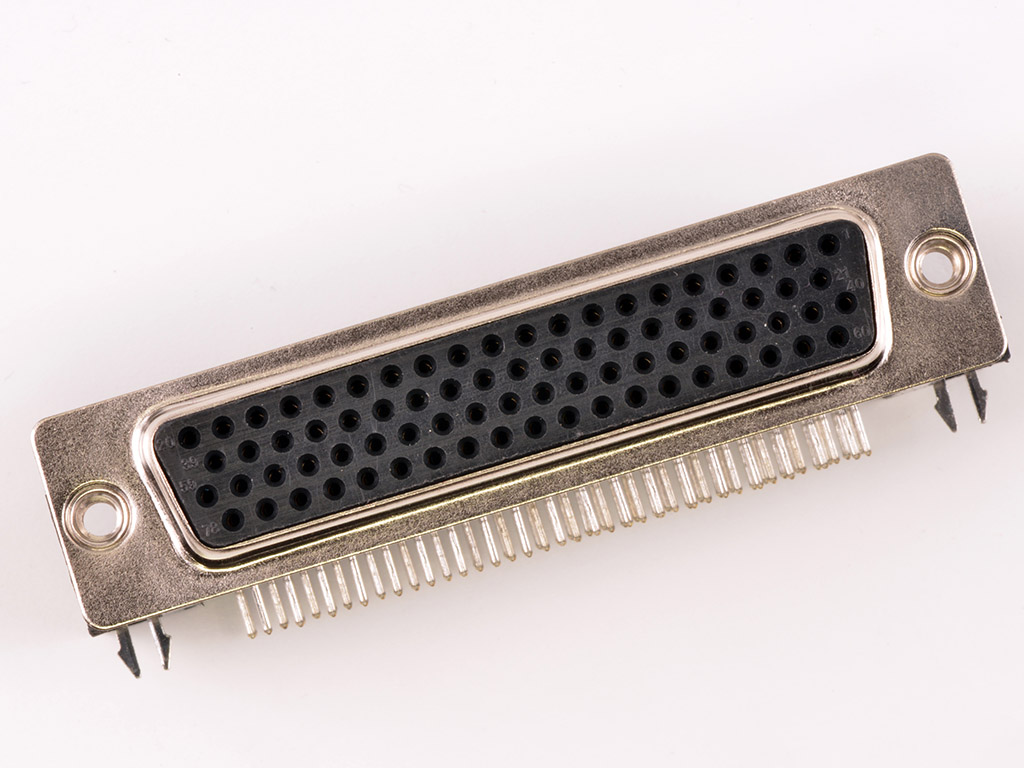

FCT High-Density D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Grounding Bracket with Snap-in, 78 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0140,
CT50-78S5-L228 |
Where to Buy
Prices starting from US$25.04
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$52.56
|
99
in stock
|
Buy Now |
|
Farnell
from US$52.23
|
90
in stock
|
Buy Now |
|
Newark Electronics
from US$38.41
|
23
in stock
|
Buy Now |
|
element14
from US$35.66
|
23
in stock
|
Buy Now |
|
RS
from US$37.04
|
0
in stock
|
Buy Now |
|
TME
from US$33.42
|
0
in stock
|
Buy Now |
|
Compona
from US$25.17
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$28.36
|
0
in stock
|
Buy Now |
|
Sager
from US$28.09
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$30.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$25.04
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 78 |
| Circuits Maximum | 78 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Number Of Rows | 3 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 10.88mm |
| Pitch Mating Interface | 2.08mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 5 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 1731130140 D-SUB Steckverbinder Polzahl: 78 Lötpins 1 St. Bulk | Conrad |
| HD D SUB CONN, RCPT, DD, SOLDER | Farnell |
| Hd-D Sub Connector, Rcpt, Dd, 78Pos, Th | Newark Electronics |
| HD-D SUB CONNECTOR, RCPT, DD, 78POS, TH | element14 |
| FCT from Molex 1731130140 | RS |
| Connector: D-Sub HD | TME |
| MOLEX CT50-78S5-L228 D-Sub Connector female HD 78p, 90° | Compona |
| PCB ANGL. HIGH DENSITSY D-SUB | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB RA PC RCPT 78 PN W/CLINCH | Sager |
| CT50-78S5-L228 FCT HD DSUB RA PC RCPT 78 PN W/CLINCH | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731130140?
Additional datasheets, footprints and schematics for 1731130140 are listed on our Part Details page. You can also find images and similar parts to 1731130140 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731130140 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731130140 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731130140 fall under?
The 1731130140 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731130140 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731130140 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731130140 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
