1731130173 FCT Products by Molex

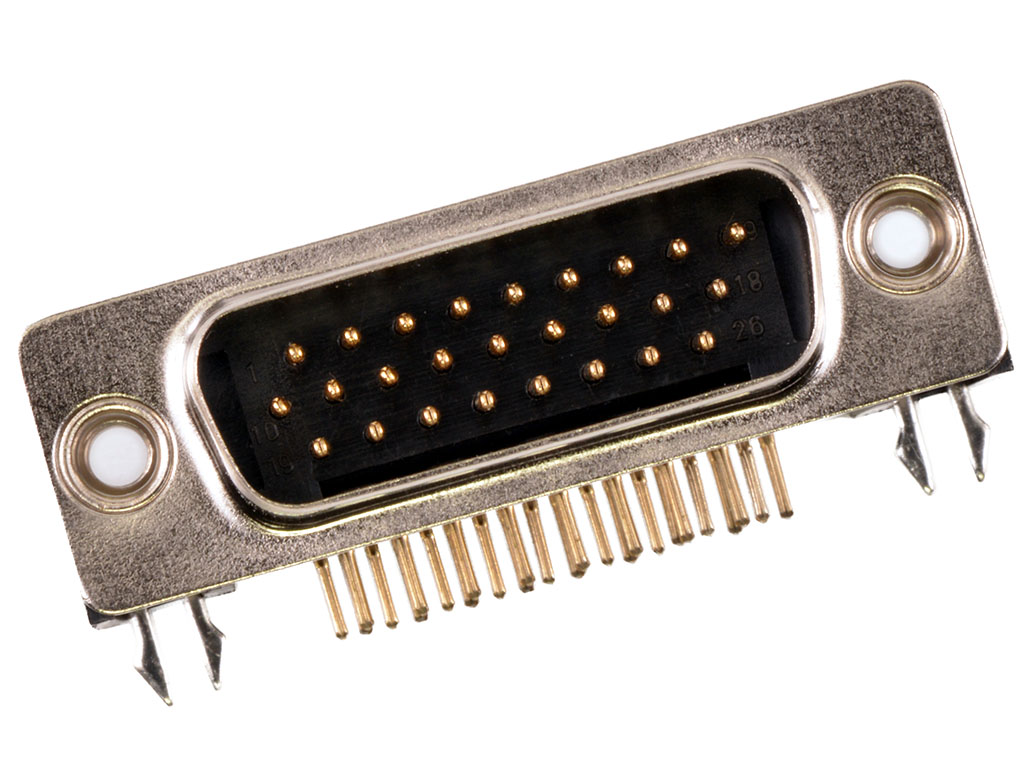

FCT High-Density D-Sub Connector, Male, Right-Angle, PCB Through Hole, Gold Plating, Grounding Bracket with Snap-in, 26 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0173,
CT15-26P5-L228 |
Where to Buy
Prices starting from US$8.68
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Europe
from US$8.68
|
1,390
in stock
|
Buy Now |
|
Newark Electronics
from US$12.41
|
420
in stock
|
Buy Now |
|
TME
from US$10.89
|
345
in stock
|
Buy Now |
|
Conrad
from US$10.85
|
345
in stock
|
Buy Now |
|
Farnell
from US$16.98
|
311
in stock
|
Buy Now |
|
Offical Electronic
-
|
14
in stock
|
Buy Now |
|
RS
from US$14.47
|
0
in stock
|
Buy Now |
|
Compona
from US$8.87
|
0
in stock
|
Buy Now |
|
element14
from US$11.50
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$10.03
|
0
in stock
|
Buy Now |
|
Sager
from US$8.70
|
0
in stock
|
Buy Now |
|
|
Heilind Americas
from US$9.82
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 26 |
| Circuits Maximum | 26 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 14.000/g |
| Number Of Rows | 3 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.55mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CT15-26P5-L228 FCT HD DSUB RA PC PLG 26 PN W/CLINCH | Heilind Europe |
| D-Sub High Density Conn Fct Hd Dsub Ra Pc Plug 26 |Molex 173113-0173 | Newark Electronics |
| Connector: D-Sub HD | TME |
| Molex 173113-0173 1 St. Bulk | Conrad |
| HD D SUB CONN, PLUG, DA, SOLDER | Farnell |
| FCT from Molex 173113-0173 | RS |
| MOLEX CT15-26P5-L228 D-Sub Connector male HD 26p, 90° | Compona |
| HD-D SUB CONNECTOR, PLUG, DA, 26POS, TH | element14 |
| FCT HD DSUB RA PC PLG 26 | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB RA PC PLG 26 PN W/CLINCH | Sager |
