1731130182 FCT Products by Molex

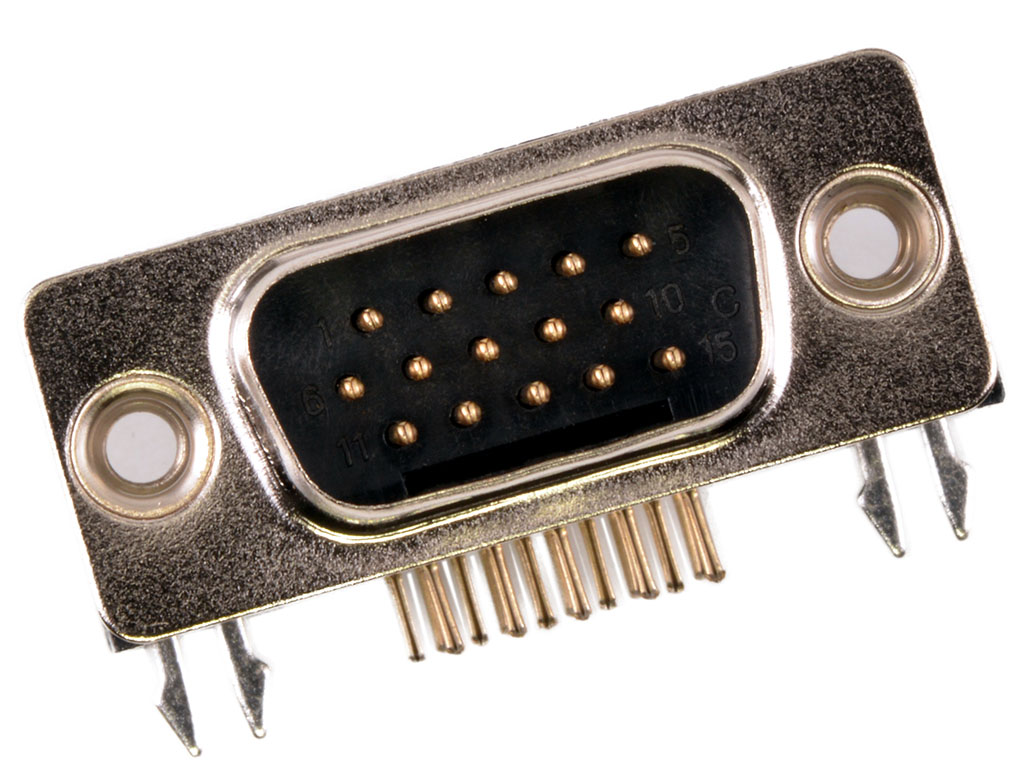

FCT High-Density D-Sub Connector, Male, Right-Angle, PCB Through Hole, Gold Plating, Grounding Bracket with Snap-in, 15 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0182,
CT09-15P5-L228 |
Where to Buy
Prices starting from US$3.13
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$7.58
|
165
in stock
|
Buy Now |
|
TTI Americas
from US$5.19
|
81
in stock
|
Buy Now |
|
Newark Electronics
from US$3.90
|
47
in stock
|
Buy Now |
|
Conrad
from US$6.55
|
12
in stock
|
Buy Now |
|
TME
from US$4.10
|
11
in stock
|
Buy Now |
|
Offical Electronic
-
|
79
in stock
|
Buy Now |
|
RS
from US$9.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.13
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$20.85
|
0
in stock
|
Buy Now |
|
Compona
from US$3.18
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.81
|
0
in stock
|
Buy Now |
|
Sager
from US$3.33
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.41
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.21
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$5.03
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 11.000/g |
| Number Of Rows | 3 |
| Orientation | Right Angle |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.55mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 2.54mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Nickel |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 1 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| HD D SUB CONN, PLUG, DE, SOLDER | Farnell |
| FCT HD DSUB | TTI Americas |
| Fct Hd Dsub Ra Pc Plg 15 Pn W/Clinch Rohs Compliant: Yes |Molex/fct 173113-0182 | Newark Electronics |
| Molex 1731130182 D-SUB Stecker Polzahl: 15 Löten 1 St. Tray | Conrad |
| Connector: D-Sub | TME |
| FCT from Molex 173113-0182 | RS |
| Conn High Density D Subminiature PIN 15 POS RA Solder Snap-In PCB Mount | Avnet America |
| HIGH-DENSITY WATERPROOF D-SUB, MALE, STRAIGHT, SOLDER CUP, GOLD, 26 CIRCUITS | RS Americas |
| MOLEX CT09-15P5-L228 D-Sub Connector male HD 15p, 90° | Compona |
| PCB ANGL. HIGH DENSITSY D-SUB | TTI Europe |
| D-Sub High Density Connectors FCT HD DSUB RA PC PLG 15 PN W/CLINCH | Sager |
| CT09-15P5-L228 FCT HD DSUB RA PC PLG 15 PN W/CLINCH | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731130182?
Additional datasheets, footprints and schematics for 1731130182 are listed on our Part Details page. You can also find images and similar parts to 1731130182 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731130182 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731130182 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731130182 fall under?
The 1731130182 is listed under D-Sub Connectors.
Can I view similar or alternative parts?
You can view similar parts to 1731130182 when available in the D-Sub Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731130182 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731130182 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731130182 have stock available?
Authorised distributors including Farnell, TTI Americas, Newark Electronics, Conrad and TME have stock available or on a lead time for 1731130182.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731130182 often in real-time on the comparison pages.
What if I can't find stock of 1731130182?
You can fill out our help required form which you can use to request a quote for 1731130182 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
