1731130236 FCT Products by Molex

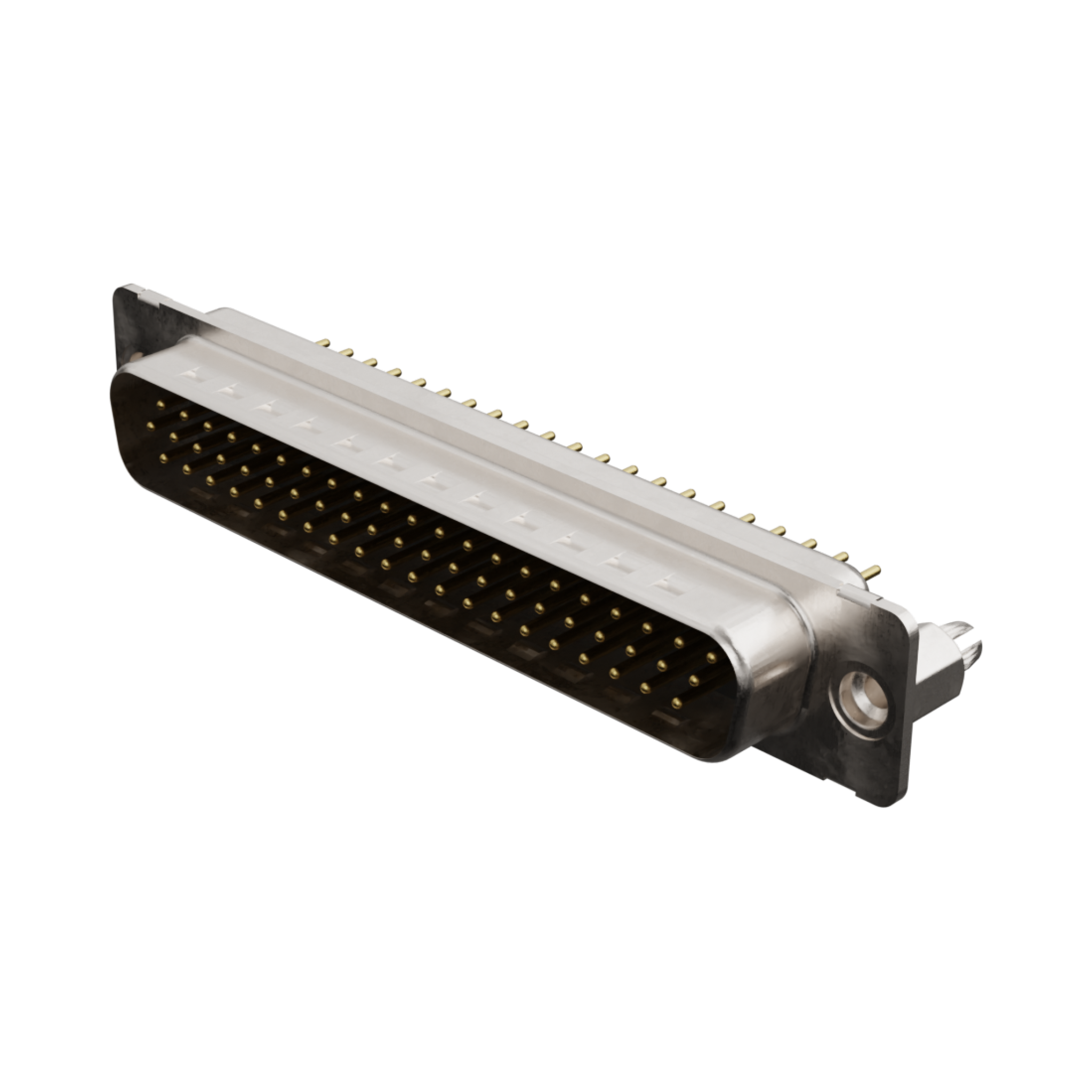

FCT High-Density D-Sub Connector, Male, Straight, PCB Through Hole, Gold Plating, 5.60mm Snap-in Bolt, 62 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0236,
CT37-62P1-0981 |
Where to Buy
Prices starting from US$7.75
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$13.68
|
36
in stock
|
Buy Now |
|
Farnell
from US$11.31
|
36
in stock
|
Buy Now |
|
TME
from US$10.80
|
23
in stock
|
Buy Now |
|
Conrad
from US$10.31
|
23
in stock
|
Buy Now |
|
Avnet America
from US$7.75
|
0
in stock
|
Buy Now |
|
RS Americas
from US$21.76
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$8.24
|
0
in stock
|
Buy Now |
|
Sager
from US$9.85
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$10.66
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$8.87
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 62 |
| Circuits Maximum | 62 |
| Color Resin | Black |
| Gender | Male |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 17.600/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.50mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 4 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Hd-D Sub Connector, Plug, Dc, 62Pos, Th | Newark Electronics |
| HD-D SUB CONNECTOR, PLUG, DC, 62POS, TH | Farnell |
| Connector: D-Sub HD | TME |
| Molex 1731130236 D-SUB Steckverbinder Polzahl: 62 Lötpins 1 St. Bulk | Conrad |
| HIGH VOLTAGE CONTACT, MALE, STRAIGHT, SOLDER CUP, GOLD, 20 AWG OR SMALLER | RS Americas |
| FCT HD DSUB | TTI Americas |
| D-Sub High Density Connectors FCT HD DSUB STR PC PLG 62 PN W/SNAPIN | Sager |
