1731130237 FCT Products by Molex

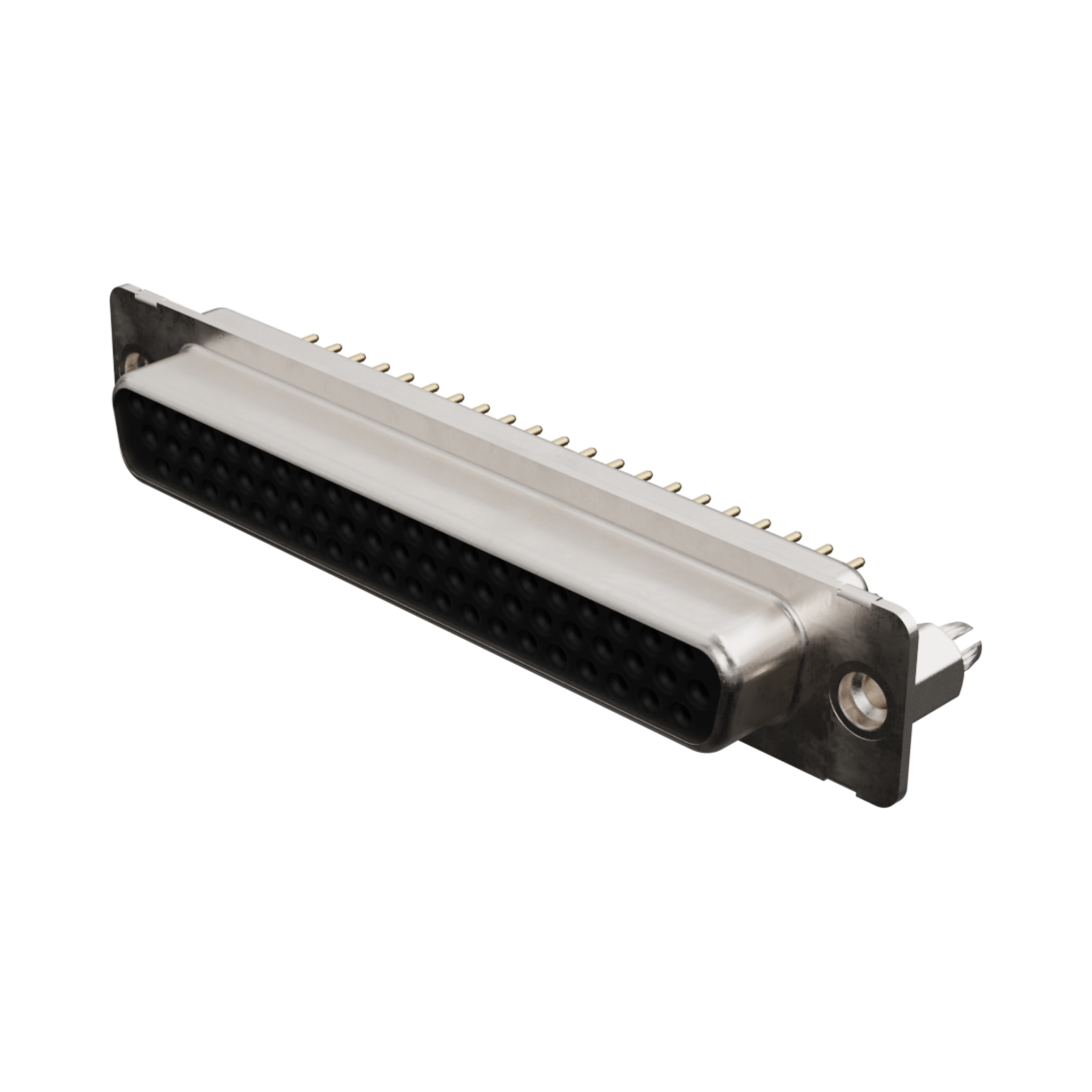

FCT High-Density D-Sub Connector, Female, Straight, PCB Through Hole, Gold Plating, 5.60mm Snap-in Bolt, 62 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173113-0237,
CT37-62S1-0981 |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Shielded | Yes |
Physical |
|
|---|---|
| Circuits Loaded | 62 |
| Circuits Maximum | 62 |
| Color Resin | Black |
| Gender | Female |
| Material Contact | Copper Alloy |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Shell | Steel |
| Net Weight | 17.000/g |
| Number Of Rows | 3 |
| Orientation | Straight |
| Panel Mount | Rear |
| Panel Mount Method | Thread-In |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pc Tail Length | 9.50mm |
| Pitch Mating Interface | 1.98mm |
| Pitch Termination Interface | 1.98mm |
| Plating Contact | Gold over Nickel |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Ports | 1 |
| Temperature Range Operating | -55° to +105°C |
| Termination Style | Through Hole |
| Waterproof Dustproof | No |
| Waterproof Dustproof Type | IP20 |
| Shell Size | 4 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Fct Hd Dsub Str Pc Rcpt 62 Pn W/Snapin Rohs Compliant: Yes |Molex/fct 173113-0237 | Newark Electronics |
| Molex 1731130237 D-SUB Steckverbinder Polzahl: 62 Lötpins 1 St. Bulk | Conrad |
| D-Sub High Density Connectors FCT HD DSUB STR PC RCPT 62 PN W/SNAPIN | Sager |
| CT37-62S1-0981 FCT HD DSUB STR PC RCPT 62 PN | Heilind Americas |
