1731140388 FCT Products by Molex

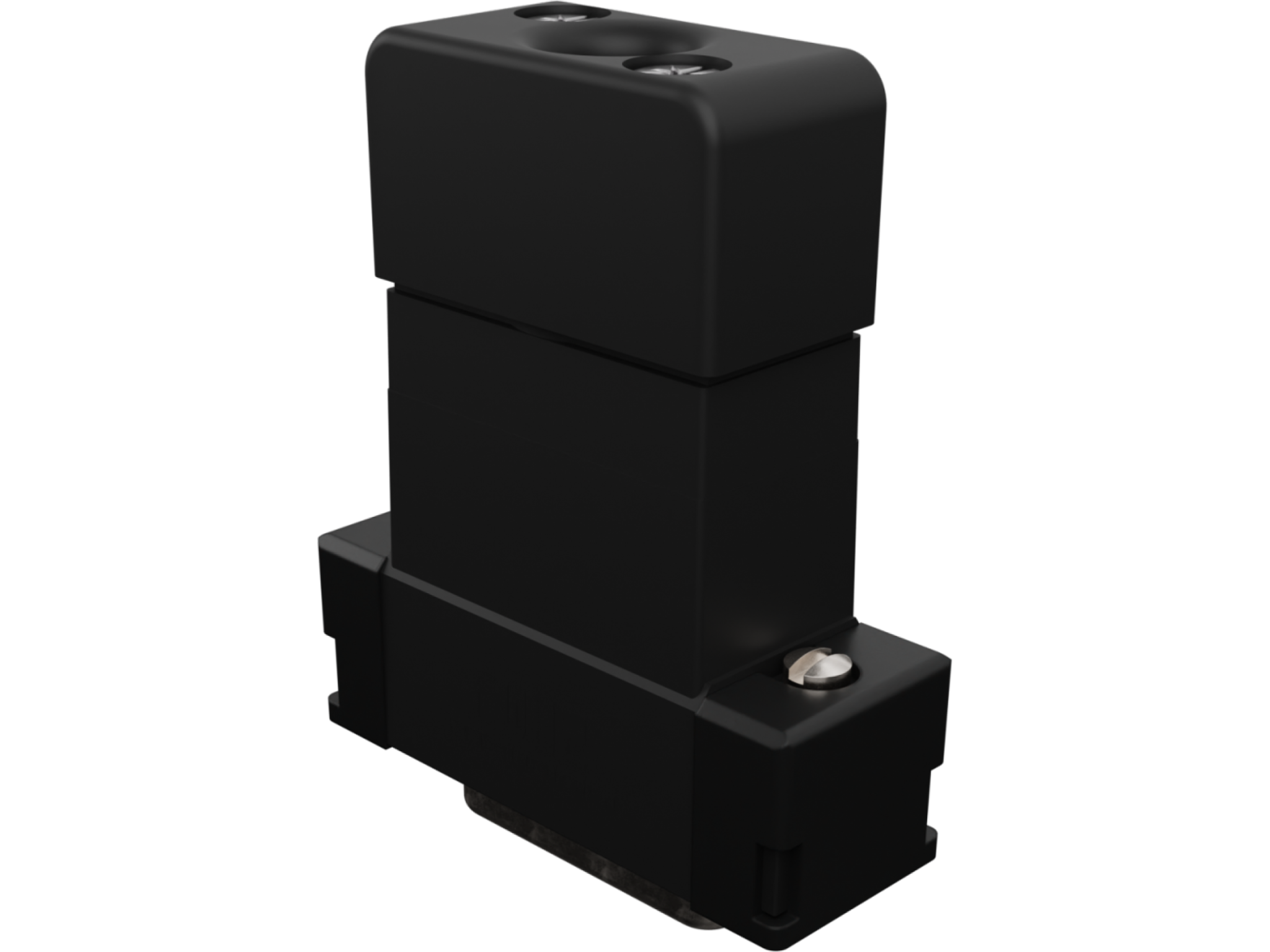

FCT Backshell Connector Kit, Black Plastic Backshell, Female Standard Density D-Sub Connector, 15 Circuits, Straight Cable Outlet, IP67 Waterproof
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173114-0388,
FWH2-15S-3649 |
Where to Buy
Prices starting from US$5.00
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | No |
| Shield Type | None |
Physical |
|
|---|---|
| Cable Diameter | 6.00-8.00mm |
| Circuits Loaded | 15 |
| Circuits Maximum | 15 |
| Color Resin | Red, Black |
| Gender | Female |
| Material Backshell | Polyester |
| Material Contact | Brass |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Screw | Brass |
| Material Seal | Elastomer |
| Material Shell | Brass |
| Mounting Style | Locking Screw |
| Net Weight | 25.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Back Shell | None |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.800µm |
| Plating Min Termination | 0.100µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Thread Size | 4-40 UNC |
| Thread Type | Standard |
| Tightening Test Torque | 40 Ncm |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 2 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D SUB BACKSHELL, 180DEG, SIZE DA, IP67 | element14 |
| Fct Connector Hood Kit Rohs Compliant: Yes |Molex/fct 173114-0388 | Newark Electronics |
| FCT CONNECTOR HOOD KIT | RS |
| Backshell for Female D-Sub Connector Size 2 Straight ABS/Polycarbonate Black IP67 Waterproof | Avnet America |
| D-Sub Backshells FCT CONNECTOR HOOD KIT | Sager |
