1731140394 FCT Products by Molex

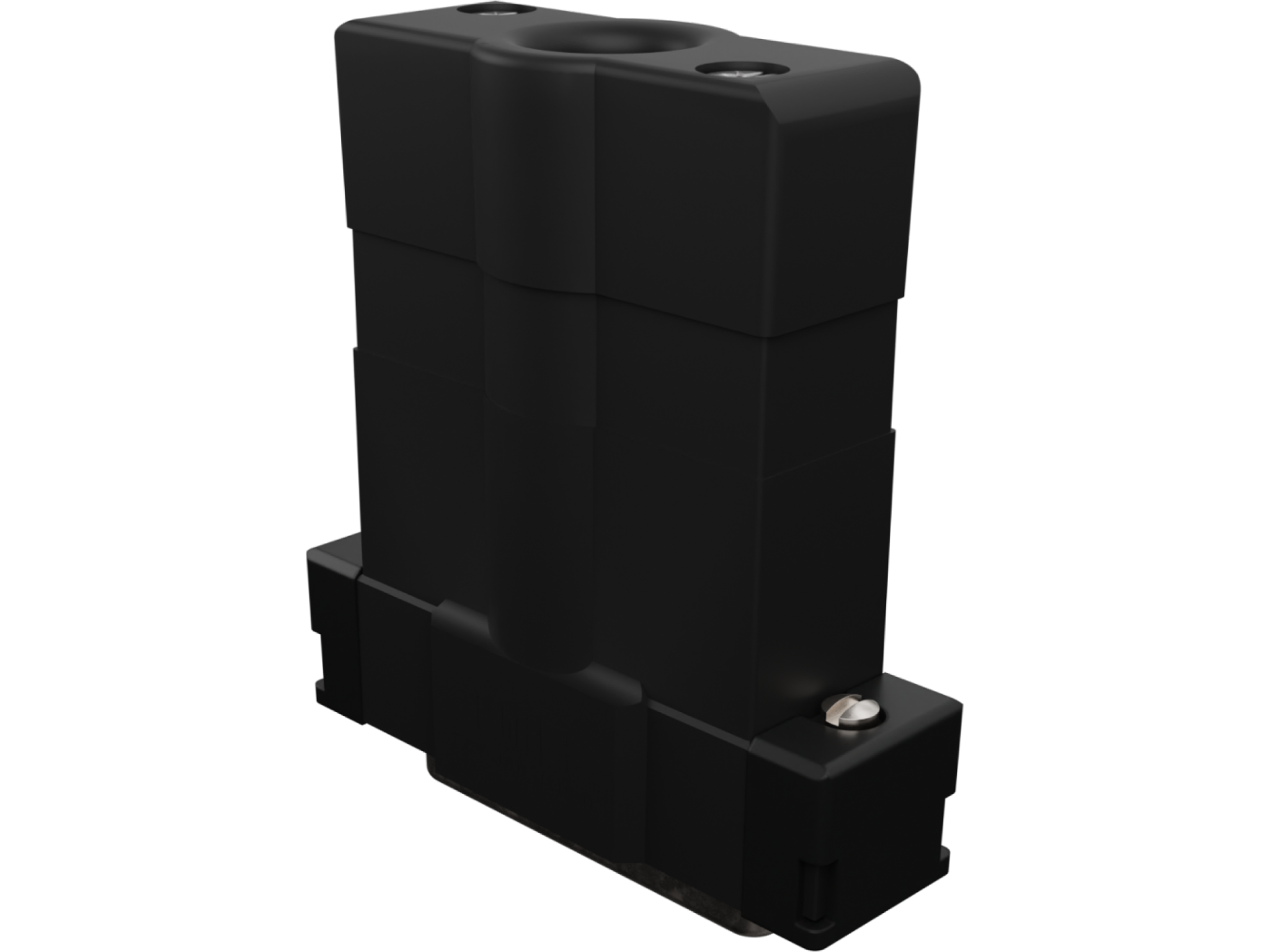

FCT Backshell Connector Kit, Black Plastic Backshell, Female Standard Density D-Sub Connector, 25 Circuits, Straight Cable Outlet, IP67 Waterproof
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
173114-0394,
FWH3-25S-3649 |
Where to Buy
Prices starting from US$18.89
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$34.55
|
197
in stock
|
Buy Now |
|
element14
from US$26.03
|
197
in stock
|
Buy Now |
|
Farnell
from US$24.40
|
197
in stock
|
Buy Now |
|
RS
from US$30.09
|
0
in stock
|
Buy Now |
|
Avnet America
from US$18.89
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$267.17
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$24.51
|
0
in stock
|
Buy Now |
|
Sager
from US$22.00
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | FCT Products |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 7.5A |
| Shielded | No |
| Shield Type | None |
Physical |
|
|---|---|
| Cable Diameter | 8.00-10.50mm |
| Circuits Loaded | 25 |
| Circuits Maximum | 25 |
| Color Resin | Red, Black |
| Gender | Female |
| Material Backshell | Polyester |
| Material Contact | Brass |
| Material Resin | Polybutylene Terephthalate (PBT) |
| Material Screw | Brass |
| Material Seal | Elastomer |
| Material Shell | Brass |
| Mounting Style | Locking Screw |
| Net Weight | 35.000/g |
| Number Of Rows | 2 |
| Orientation | Straight |
| Pitch Mating Interface | 2.84mm |
| Pitch Termination Interface | 2.84mm |
| Plating Back Shell | None |
| Plating Contact | Gold over Nickel |
| Plating Min Mating | 0.800µm |
| Plating Min Termination | 0.100µm |
| Plating Shell | Tin |
| Polarized To Mating Part | Yes |
| Ports | 1 |
| Temperature Range Operating | -25° to +70°C |
| Termination Style | Solder Cup |
| Thread Size | 4-40 UNC |
| Thread Type | Standard |
| Tightening Test Torque | 40 Ncm |
| Waterproof Dustproof | Yes |
| Waterproof Dustproof Type | IP67 |
| Wire Size Awg | 20 |
| Shell Size | 3 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| D Sub Backshell, 180Deg, Size Db, Ip67 Rohs Compliant: Yes |Molex/fct 173114-0394 | Newark Electronics |
| D SUB BACKSHELL, 180DEG, SIZE DB, IP67 | element14 |
| CARCASA POSTERIOR SUB D, 180º, DB, IP67 | Farnell |
| FCT CONNECTOR HOOD KIT | RS |
| Backshell for Female D-Sub Connector Size 3 Straight ABS/Polycarbonate Black IP67 Waterproof | Avnet America |
| CONNECTOR HOOD KIT | RS Americas |
| FCT HOOD | TTI Americas |
| D-Sub Backshells FCT CONNECTOR HOOD KIT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 1731140394?
Additional datasheets, footprints and schematics for 1731140394 are listed on our Part Details page. You can also find images and similar parts to 1731140394 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 1731140394 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 1731140394 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 1731140394 fall under?
The 1731140394 is listed under D-Sub Connector Kits.
Can I view similar or alternative parts?
You can view similar parts to 1731140394 when available in the D-Sub Connector Kits range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 1731140394 you can contact the distributor directly for product support, shipping queries etc.
Is the 1731140394 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 1731140394 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS and Avnet America have stock available or on a lead time for 1731140394.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 1731140394 often in real-time on the comparison pages.
What if I can't find stock of 1731140394?
You can fill out our help required form which you can use to request a quote for 1731140394 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
