2002411117 Mega-Fit by Molex

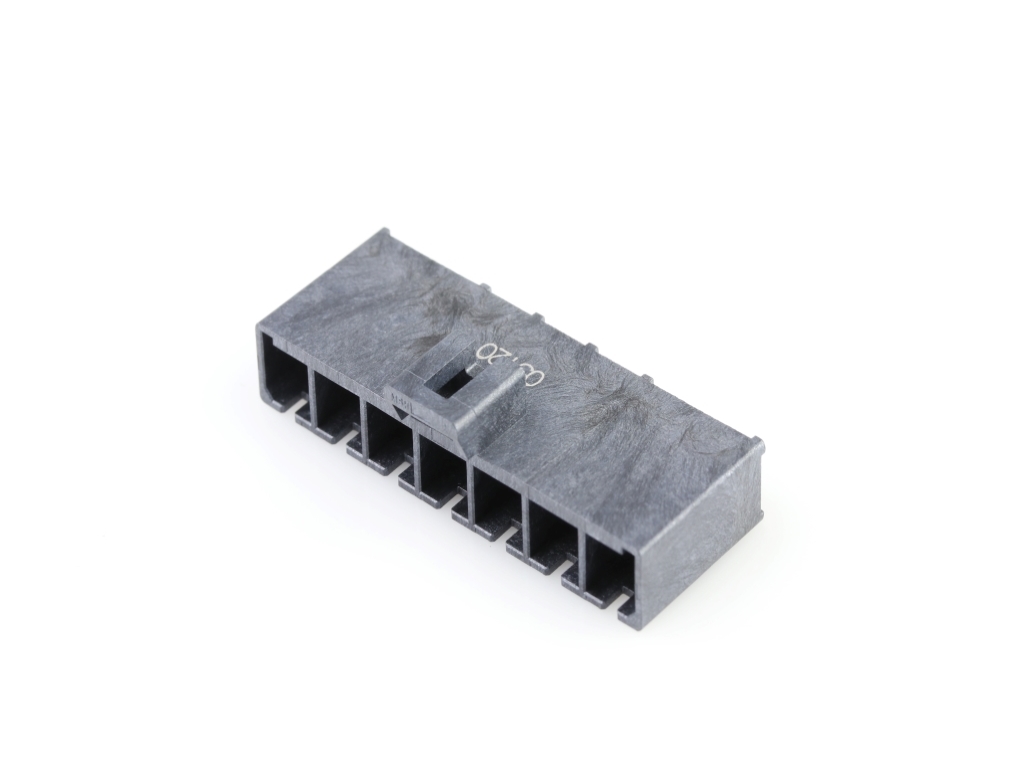

Mega-Fit Vertical Header, 5.70mm Pitch, Single Row, 7 Circuits, Matte Tin (Sn) Plating, Glow-Wire Capable, Tray, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200241-1117 |
Where to Buy
Prices starting from US$1.59
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 26.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 7 |
| Circuits Maximum | 7 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 4.460/g |
| Number Of Rows | 1 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.23mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
