2002411215 Mega-Fit by Molex

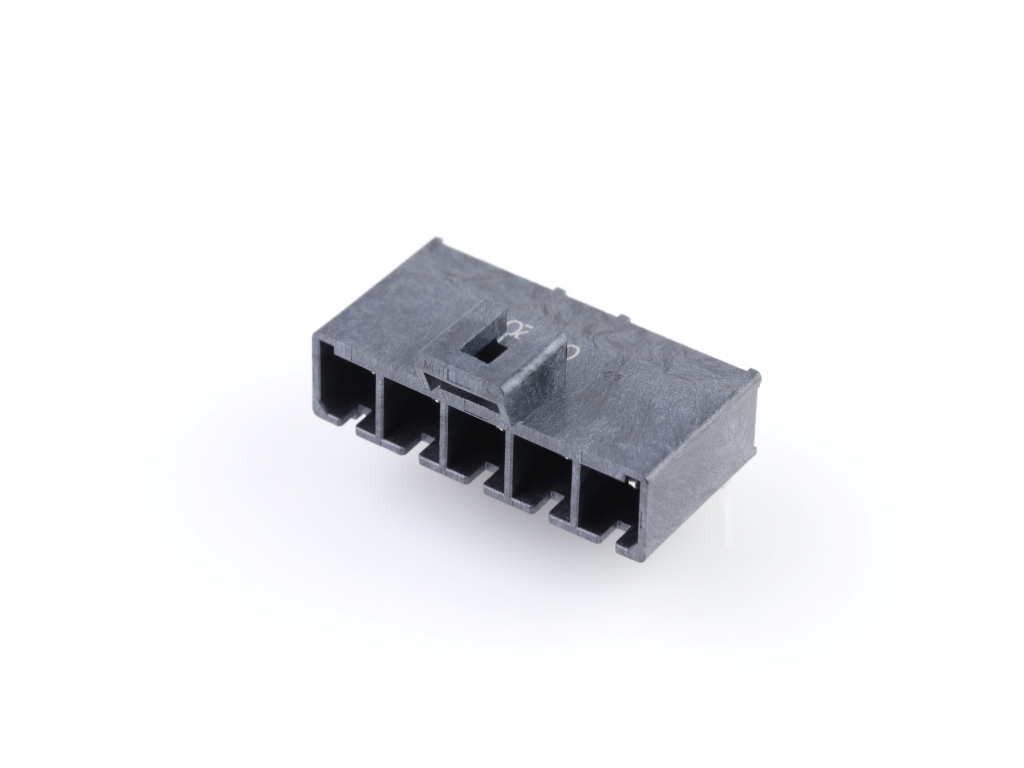

Mega-Fit Right-Angle Header, 5.70mm Pitch, Single Row, 5 Circuits, Matte Tin (Sn) Plating, Glow-Wire Capable, Tray, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200241-1215 |
Where to Buy
Prices starting from US$1.35
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.58
|
4,400
in stock
|
Buy Now |
|
Conrad
from US$2.53
|
4,400
in stock
|
Buy Now |
|
Farnell
from US$2.09
|
3,960
in stock
|
Buy Now |
|
element14
from US$2.16
|
1,643
in stock
|
Buy Now |
|
Newark Electronics
from US$2.41
|
1,071
in stock
|
Buy Now |
|
Avnet America
from US$1.79
|
0
in stock
|
Buy Now |
|
RS Americas
from US$2.03
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.58
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.65
|
0
in stock
|
Buy Now |
|
Sager
from US$1.46
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.54
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.35
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$2.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 26.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 5 |
| Circuits Maximum | 5 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 3.550/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
