2002411216 Mega-Fit by Molex

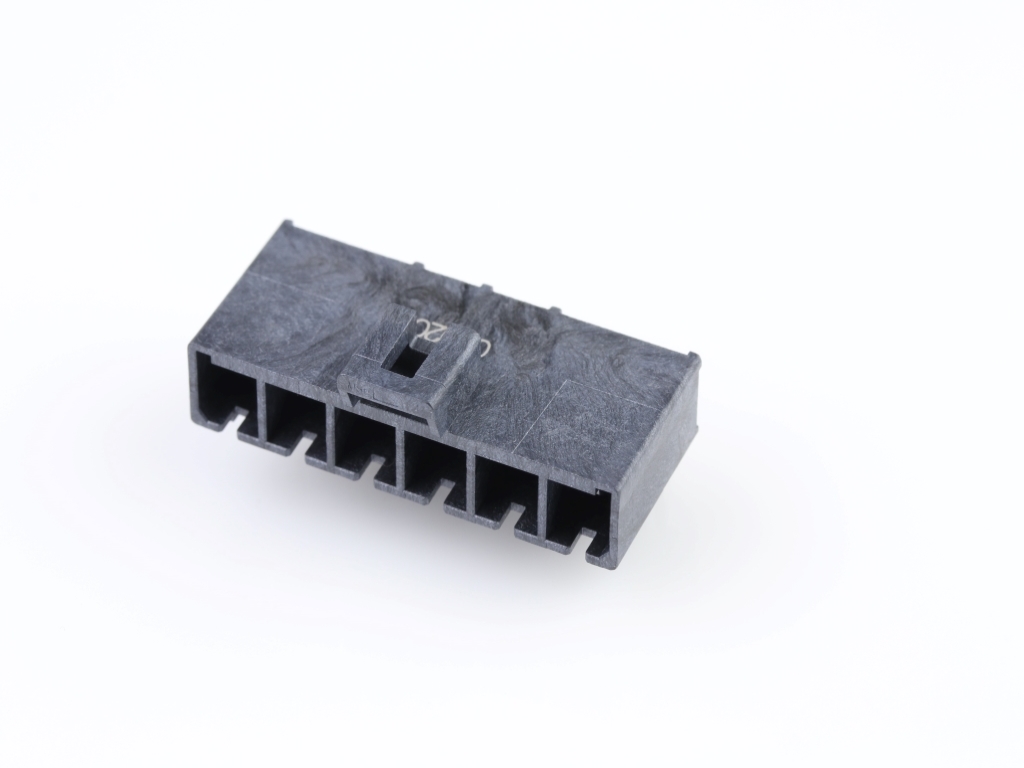

Mega-Fit Right-Angle Header, 5.70mm Pitch, Single Row, 6 Circuits, Matte Tin (Sn) Plating, Glow-Wire Capable, Tray, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200241-1216 |
Where to Buy
Prices starting from US$0.98
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.69
|
4,065
in stock
|
Buy Now |
|
Conrad
from US$2.99
|
4,065
in stock
|
Buy Now |
|
Farnell
from US$3.18
|
3,659
in stock
|
Buy Now |
|
Newark Electronics
from US$0.98
|
490
in stock
|
Buy Now |
|
TTI Americas
from US$2.13
|
189
in stock
|
Buy Now |
|
RS
from US$2.27
|
118
in stock
|
Buy Now |
|
Avnet America
from US$1.65
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.64
|
0
in stock
|
Buy Now |
|
Sager
from US$1.90
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.00
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.54
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 26.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 4.200/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Buchsengehäuse-Platine Polzahl Gesamt 6 Rastermaß: 5.70 mm 2002411216 1 St. Tray | Conrad |
| CONN, HEADER, 6POS, 1ROW, 5.7MM | Farnell |
| Connector Systems:Wire-To-Board | Newark Electronics |
| MEGA-FIT HDR 01X06P BLK RA SN | TTI Americas |
| Molex 200241-1216 PCB Header | RS |
| MEGA-FIT RA SR TH HDR TIN 6CKT BLK | RS Americas |
| Headers & Wire Housings MEGA-FIT HDR 01X06P BLK RA SN | Sager |
| MEGAFIT R/A TOP LATCH ASSY T N 6CKT BLK | Heilind Americas |
