2002411222 Mega-Fit by Molex

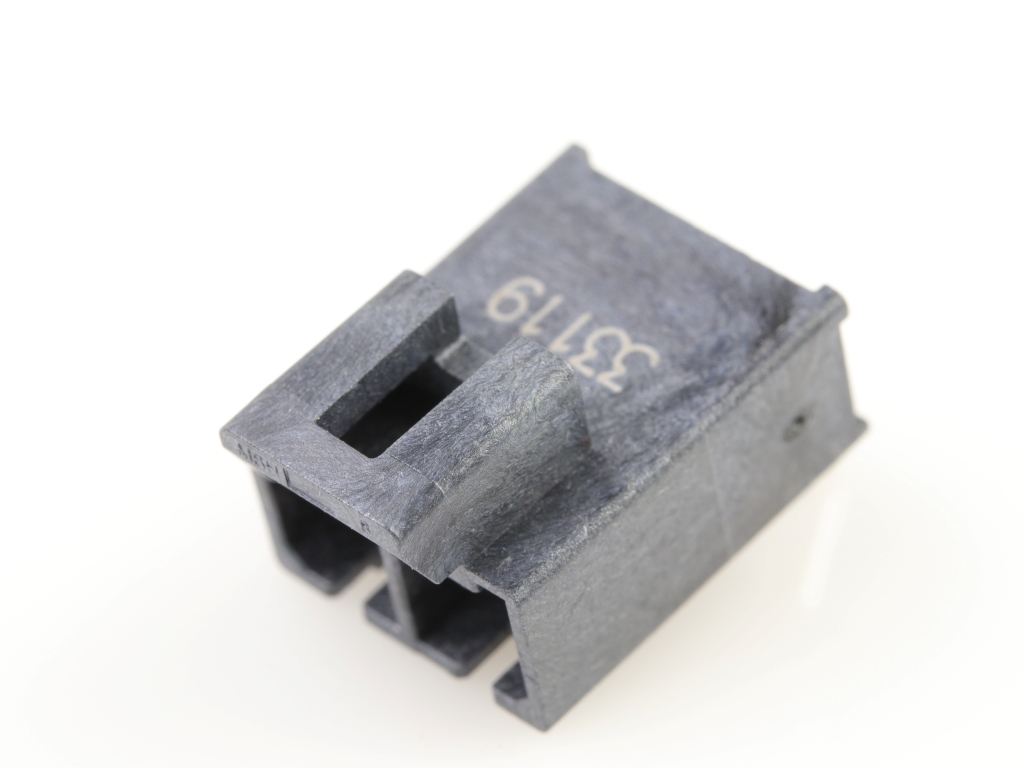

Mega-Fit Right-Angle Header, 5.70mm Pitch, Single Row, 2 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Tray, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200241-1222 |
Where to Buy
Prices starting from US$1.88
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.84
|
30
in stock
|
Buy Now |
|
Rutronik
from US$1.95
|
0
in stock
|
Buy Now |
|
element14
from US$2.39
|
0
in stock
|
Buy Now |
|
Sager
from US$2.09
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.05
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.88
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.38
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.96
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 1.600/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector Systems:Wire-To-Board | Newark Electronics |
| 02P Mega-Fit Header AU 5,70MM GLOW | Rutronik |
| WTB CONN, HEADER, 2POS, 1ROW, 5.7MM | element14 |
| Headers & Wire Housings Mega-FIT RA SR TH HDR 15?Gold 2ckt BLK | Sager |
| MEGAFIT R/A TOP LATCH ASSY 15 G 2CKT BLK | Heilind Americas |
| MEGA-FIT RA SR TH HDR 15U | TTI Asia |
