2002411223 Mega-Fit by Molex

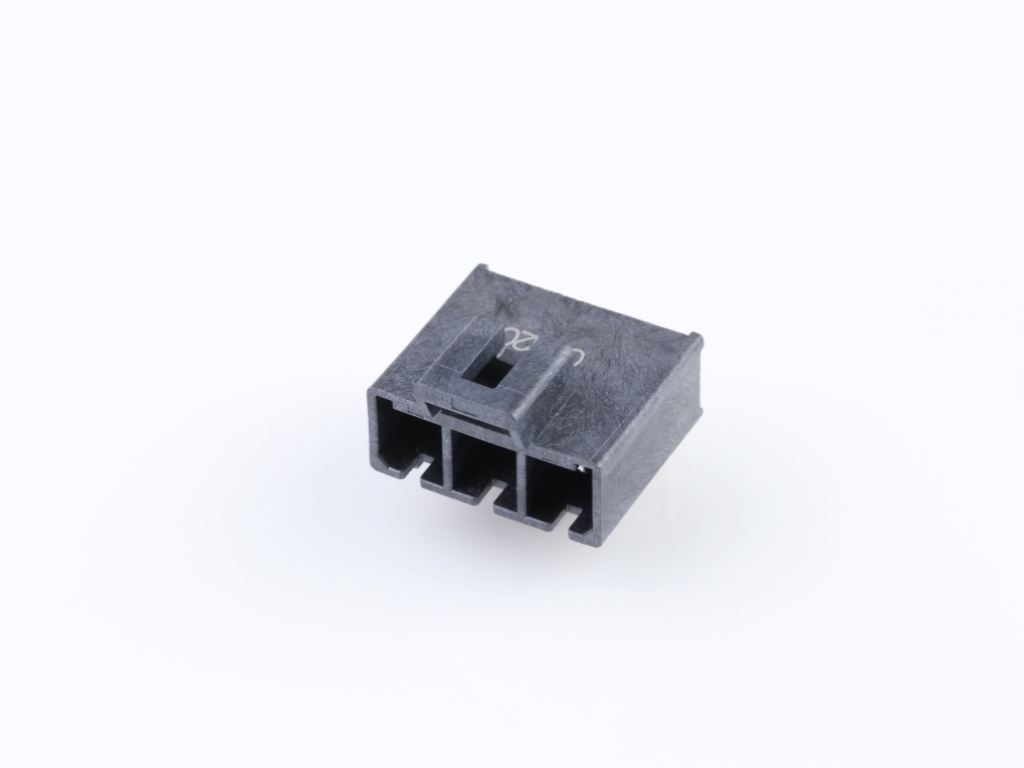

Mega-Fit Right-Angle Header, 5.70mm Pitch, Single Row, 3 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Tray, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200241-1223 |
Where to Buy
Prices starting from US$1.69
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.69
|
1,589
in stock
|
Buy Now |
|
Rutronik
from US$2.52
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.93
|
0
in stock
|
Buy Now |
|
RS Americas
from US$3.08
|
0
in stock
|
Buy Now |
|
Sager
from US$2.72
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.67
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 26.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Durability Mating Cycles Max | 200 |
| First Mate Last Break | No |
| Gender | Male |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Mounting Style | Through Hole |
| Net Weight | 2.260/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 0.380µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +120°C |
| Termination Interface Style | Through Hole |
