2002414214 Mega-Fit by Molex

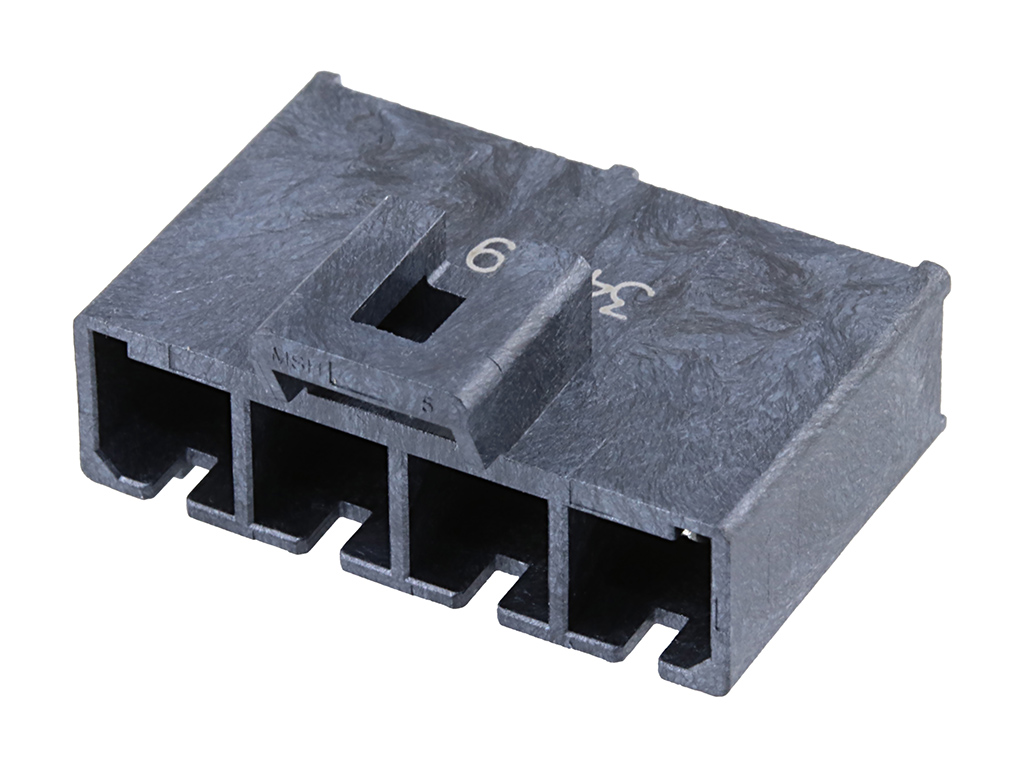

Mega-Fit Right-Angle Header, 5.70mm Pitch, Single Row, 4 Circuits, Matte Tin (Sn) Plating, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200241-4214 |
Where to Buy
Prices starting from US$1.24
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.70
|
700
in stock
|
Buy Now |
|
Conrad
from US$2.49
|
700
in stock
|
Buy Now |
|
RS
from US$2.85
|
85
in stock
|
Buy Now |
|
Rutronik
from US$1.63
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$2.22
|
0
in stock
|
Buy Now |
|
element14
from US$1.69
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.47
|
0
in stock
|
Buy Now |
|
Sager
from US$1.27
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.24
|
0
in stock
|
Buy Now |
|
Farnell
from US$2.08
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 600V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 25 |
| First Mate Last Break | No |
| Glow Wire Capable | Yes |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | Yes |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 2.900/g |
| Number Of Rows | 1 |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.58mm, 2.36mm |
| Pc Tail Length | 3.60mm |
| Pitch Mating Interface | 5.70mm |
| Pitch Termination Interface | 5.70mm |
| Plating Min Mating | 1.520µm |
| Plating Min Termination | 1.520µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Buchsengehäuse-Platine Polzahl Gesamt 4 Rastermaß: 5.70 mm 2002414214 1 St. Tray | Conrad |
| Molex 200241-4214 PCB Header | RS |
| 04P Mega-Fit Header 5,70MM GLOW | Rutronik |
| Wtb Conn, Header, 4Pos, 1Row, 5.7Mm Rohs Compliant: Yes |Molex 200241-4214 | Newark Electronics |
| WTB CONN, HEADER, 4POS, 1ROW, 5.7MM | element14 |
| MEGAF R/ATOPLATCHASSYTIN 4CKT | TTI Europe |
| Headers & Wire Housings MEGA-FIT HDR 01X04P BLK RA SN | Sager |
| MEGA-FIT R/ATOP LATCH ASSY B K TIN 4CKT | Heilind Americas |
