2004490001 EdgeLock by Molex

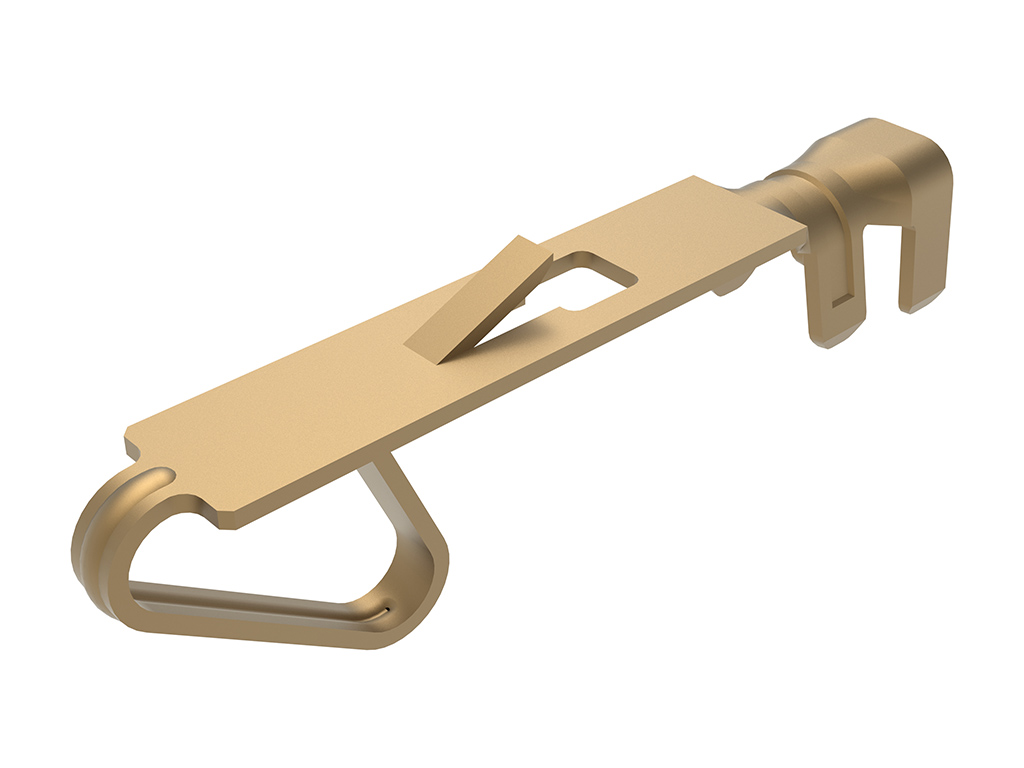

2.00mm Pitch EdgeLock Crimp Terminal, Phosphor Bronze, Tin (Sn) Plating,Reel
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200449-0001 |
Where to Buy
Prices starting from US$0.0200
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$0.05
|
73,400
in stock
|
Buy Now |
|
|
RS Americas
from US$0.0200
|
40,000
in stock
|
Buy Now |
|
Conrad
from US$287.50
|
32,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.06
|
30,724
in stock
|
Buy Now |
|
Farnell
from US$0.10
|
30,724
in stock
|
Buy Now |
|
TTI Americas
from US$0.05
|
6,150
in stock
|
Buy Now |
|
Heilind Americas
from US$0.0342
|
6,000
in stock
|
Buy Now |
|
Offical Electronic
-
|
511
in stock
|
Buy Now |
|
Avnet America
from US$0.0261
|
0
in stock
|
Buy Now |
|
TME
from US$0.0398
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.0396
|
0
in stock
|
Buy Now |
|
Sager
from US$0.0312
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.0312
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EdgeLock |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 3.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | N/A |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 47.042/mg |
| Plating Min Mating | 1.000µm |
| Plating Min Termination | 1.000µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.10-1.40mm |
| Wire Size Awg | 22, 24 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 200449-0001 Crimp Terminal | RS |
| 2.00MM PITCH EDGELOCK CRIMP TERMINAL, PHOSPHOR BRONZE, TIN (SN) PLATING, REEL | RS Americas |
| Molex 2004490001 2.00 mm D-CL Termina 2004490001 Molex Inhalt: 8000 St. | Conrad |
| Contact, Crimp, 24Awg-22Awg Product Rangeedgelock 200449 Series Contact Gender- Contact Termination Typecrimp For Use Withmolex Edgelock 200890 Series Edge Card Housing Connectors Wire Size Awg Max22Awg Wire Size Awg Rohs Compliant: Yes |Molex 200449-0001 | Newark Electronics |
| CONTACT, CRIMP, 24AWG-22AWG | Farnell |
| EDGELOCK CRMP TERM SN | TTI Americas |
| EDGELOCK CRIMP TRML TIN PLATED | Heilind Americas |
| Connector: card edge | TME |
| 2.00MM PITCH EDGELOCK CRIMP | TTI Europe |
| Terminals EDGELOCK CRMP TERM SN | Sager |
