2004531005 Mini-Fit Sigma by Molex

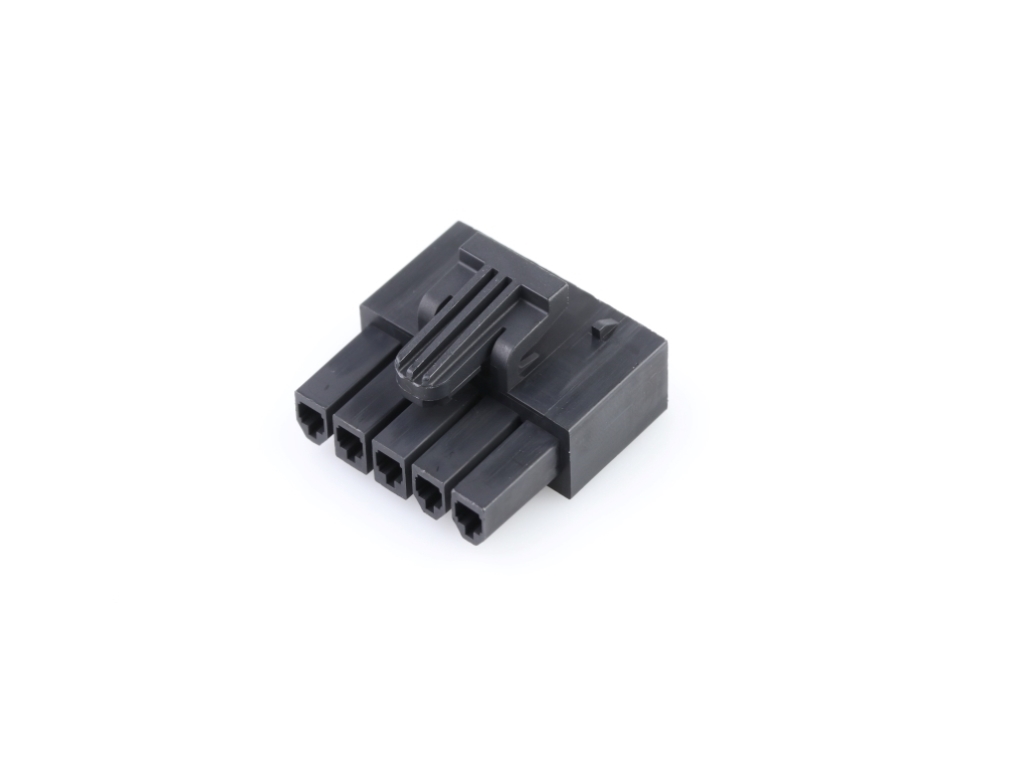

Mini-Fit Sigma Receptacle Housing, 4.20mm Pitch, Single Row, Glow-Wire Capable, 5 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200453-1005 |
Where to Buy
Prices starting from US$0.33
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$0.51
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.37
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.61
|
0
in stock
|
Buy Now |
|
element14
from US$0.48
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.42
|
0
in stock
|
Buy Now |
|
Sager
from US$0.33
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.37
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.38
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.53
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Sigma |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 5 |
| Color Resin | Black |
| Flammability | 94V-0 |
| Gender | Receptacle |
| Glow Wire Capable | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 1.800/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Receptacle Housing, 5Pos, 4.2Mm, Black | Newark Electronics |
| Conn Housing Wire to Board RCP 5 POS 4.2mm ST Cable Mount Bag | Avnet America |
| CONNECTOR, MINI-FIT SIGMA RECEPTACLE HOUSING, 4.2MM PITCH, SINGLE ROW,5 CIRCUIT | RS Americas |
| RECEPTACLE HOUSING, 5POS, 4.2MM, BLACK | element14 |
| MINI-FIT SIGMA REC 01X05P | TTI Americas |
| Headers & Wire Housings MINI-FIT SIGMA REC 01X05P | Sager |
| MINI-FIT SIGMA SR REC HSG 1X5C | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2004531005?
Additional datasheets, footprints and schematics for 2004531005 are listed on our Part Details page. You can also find images and similar parts to 2004531005 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2004531005 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2004531005 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2004531005 fall under?
The 2004531005 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 2004531005 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2004531005 you can contact the distributor directly for product support, shipping queries etc.
Is the 2004531005 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2004531005 have stock available?
Authorised distributors including Newark Electronics, Avnet America, RS Americas, element14 and TTI Americas have stock available or on a lead time for 2004531005.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2004531005 often in real-time on the comparison pages.
What if I can't find stock of 2004531005?
You can fill out our help required form which you can use to request a quote for 2004531005 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
