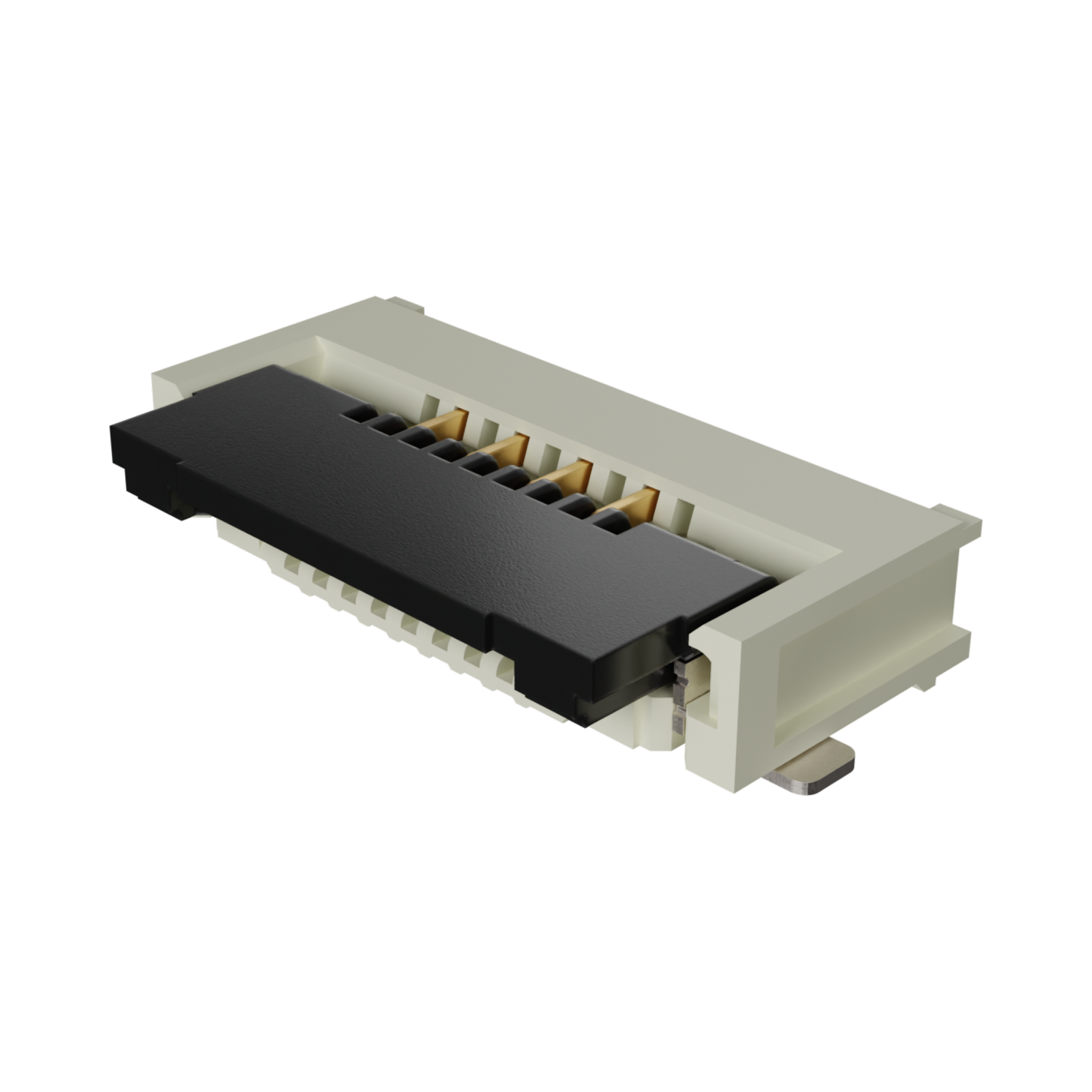

2005280040 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 4 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200528-0040 |
Where to Buy
Prices starting from US$0.22
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.22
|
18,000
in stock
|
Buy Now |
|
TTI Europe
from US$0.27
|
18,000
in stock
|
Buy Now |
|
|
TTI Americas
from US$0.28
|
12,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.43
|
9,000
in stock
|
Buy Now |
|
TME
from US$0.35
|
9,000
in stock
|
Buy Now |
|
Farnell
from US$0.32
|
9,000
in stock
|
Buy Now |
|
RS
from US$0.42
|
380
in stock
|
Buy Now |
|
|
RS Americas
from US$0.40
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.53
|
0
in stock
|
Buy Now |
|
Sager
from US$0.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.27
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.92
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 4 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 86.784/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FFC / FPC Board Connector, R/A, 1 mm, 4 Contacts, Receptacle, Easy-On 200528, Surface Mount, Bottom | Avnet America |
| 1.0 FPC ZIF BTM CONT EMBT PKG | TTI Europe |
| 1.00MM EASY-ON 04P RA SMT | TTI Americas |
| Connector, Ffc/Fpc, 4Pos, 1Row, 1Mm Rohs Compliant: Yes |Molex 200528-0040 | Newark Electronics |
| Connector: FFC/FPC | TME |
| CONNECTOR, FFC/FPC, 4POS, 1ROW, 1MM | Farnell |
| Molex 2005280040 FPC Connector | RS |
| 1.0 FPC ZIF BTM CONT EMBT PKG 4CKT | RS Americas |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 4 Rastermaß: 1 mm 2005280040 1 St. Tape on Full reel | Conrad |
| FFC & FPC Connectors 1.00MM EASY-ON 04P RA SMT | Sager |
| 1.00MM EASY ON FFC/FPC 6CIRCUI | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2005280040?
Additional datasheets, footprints and schematics for 2005280040 are listed on our Part Details page. You can also find images and similar parts to 2005280040 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2005280040 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2005280040 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2005280040 fall under?
The 2005280040 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 2005280040 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2005280040 you can contact the distributor directly for product support, shipping queries etc.
Is the 2005280040 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2005280040 have stock available?
Authorised distributors including Avnet America, TTI Europe, TTI Americas, Newark Electronics and TME have stock available or on a lead time for 2005280040.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2005280040 often in real-time on the comparison pages.
What if I can't find stock of 2005280040?
You can fill out our help required form which you can use to request a quote for 2005280040 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
