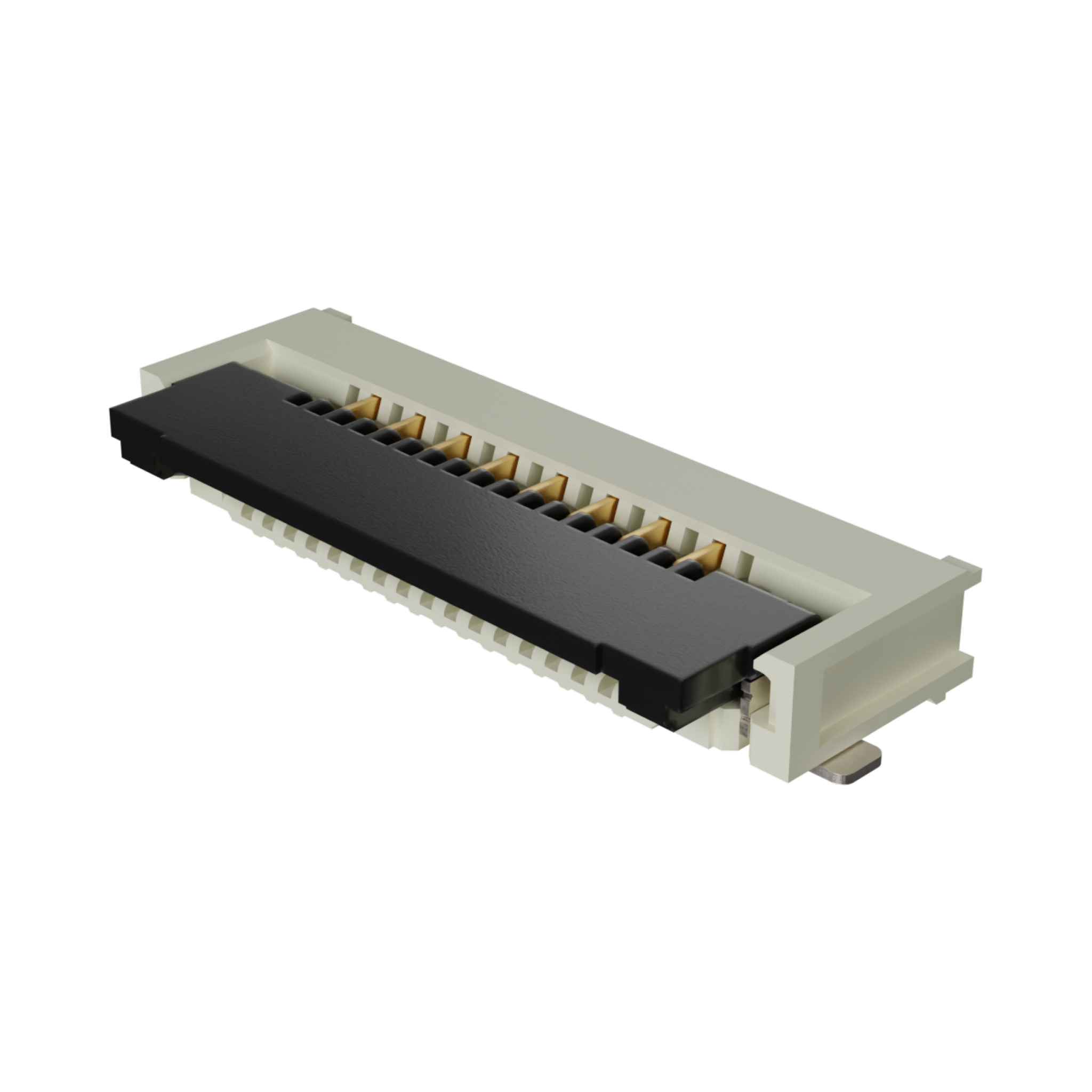

2005280080 Easy-On by Molex
Easy-On FFC/FPC Connector, 1.00mm Pitch, FD19 Series, Right-Angle, Bottom Contact, 1.90mm Height, 8 Circuits, Gold over Nickel Plating
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200528-0080 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
Avnet America
from US$0.22
|
54,000
in stock
|
Buy Now |
|
Conrad
from US$0.58
|
48,000
in stock
|
Buy Now |
|
Farnell
from US$0.39
|
43,500
in stock
|
Buy Now |
|
Newark Electronics
from US$0.09
|
3,000
in stock
|
Buy Now |
|
TTI Americas
from US$0.25
|
1,175
in stock
|
Buy Now |
|
RS
from US$0.72
|
0
in stock
|
Buy Now |
|
TME
from US$0.45
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.34
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.40
|
0
in stock
|
Buy Now |
|
Sager
from US$0.31
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.09
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 8 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 127.880/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| FFC / FPC Board Connector, ZIF, 1 mm, 8 Contacts, Receptacle, Easy-On 200528 Series, Surface Mount | Avnet America |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 1 mm 2005280080 1 St. Tape on Full reel | Conrad |
| FPC CONN, RCPT, 8POS, 1ROW, 1MM | Farnell |
| Connector, Ffc/Fpc, 8Pos, 1Row, 1Mm Rohs Compliant: Yes |Molex 200528-0080 | Newark Electronics |
| 1.00MM EASY-ON 08P RA SMT | TTI Americas |
| Molex 200528-0080 FPC Connector | RS |
| Connector: FFC/FPC | TME |
| 1.0 FPC ZIF BTM CONT EMBT PKG 8CKT | RS Americas |
| 1.00MM EASY ON FFC/FPC 8CIRCUI | TTI Europe |
| FFC & FPC Connectors 1.00MM EASY-ON 08P RA SMT | Sager |
