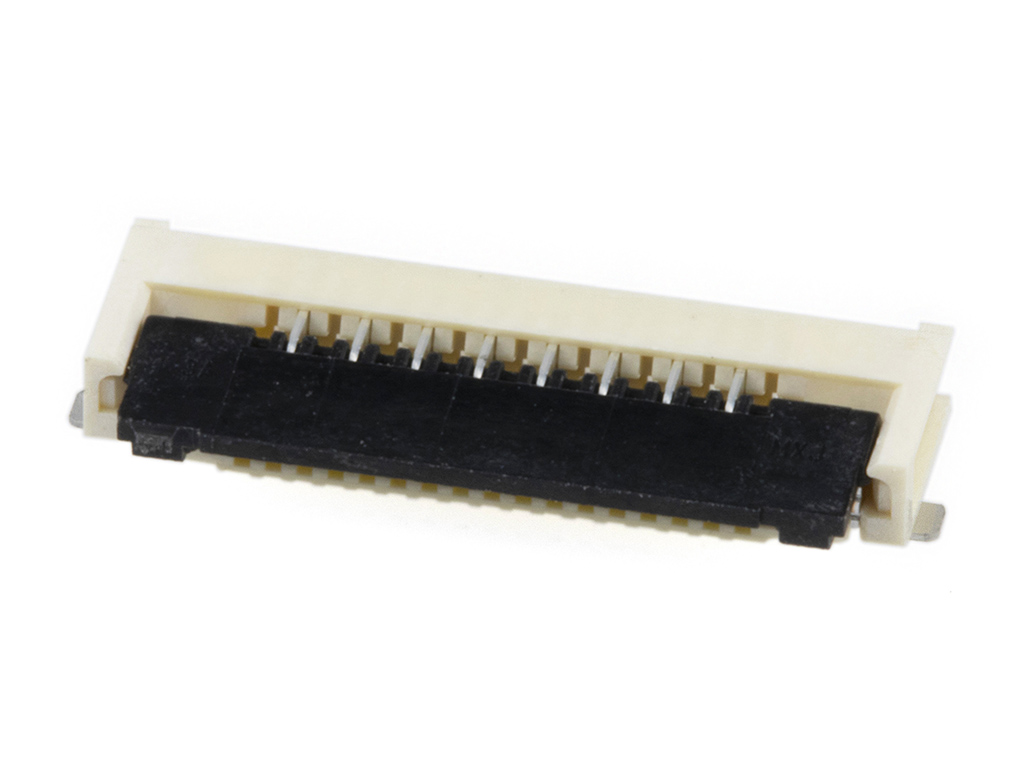

2005290080 Easy-On by Molex
1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 8 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200529-0080 |
Where to Buy
Prices starting from US$0.23
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.33
|
10,158
in stock
|
Buy Now |
|
Farnell
from US$0.30
|
10,158
in stock
|
Buy Now |
|
Conrad
from US$0.45
|
9,000
in stock
|
Buy Now |
|
Newark Electronics
from US$0.23
|
517
in stock
|
Buy Now |
|
RS
from US$0.50
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.23
|
0
in stock
|
Buy Now |
|
TME
from US$0.29
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.38
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 8 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 122.774/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONNECTOR, FFC/FPC, 8POS, 1ROW, 1MM | element14 |
| Molex FFC/FPC-Anschluss Polzahl Gesamt 8 Rastermaß: 1 mm 2005290080 1 St. | Conrad |
| Connector, Ffc/Fpc, 8Pos, 1Row, 1Mm | Newark Electronics |
| Molex 200529-0080 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 8 POS 1mm Solder RA SMD Emboss T/R | Avnet America |
| Connector: FFC/FPC | TME |
| 1.00MM EASY-ON FFC/FPC CONNECTOR | RS Americas |
| FFC & FPC Connectors 1.00MM EASY-ON 08P RA SMT | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 2005290080?
Additional datasheets, footprints and schematics for 2005290080 are listed on our Part Details page. You can also find images and similar parts to 2005290080 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 2005290080 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 2005290080 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 2005290080 fall under?
The 2005290080 is listed under FFC / FPC Connectors.
Can I view similar or alternative parts?
You can view similar parts to 2005290080 when available in the FFC / FPC Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 2005290080 you can contact the distributor directly for product support, shipping queries etc.
Is the 2005290080 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 2005290080 have stock available?
Authorised distributors including element14, Farnell, Conrad, Newark Electronics and RS have stock available or on a lead time for 2005290080.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 2005290080 often in real-time on the comparison pages.
What if I can't find stock of 2005290080?
You can fill out our help required form which you can use to request a quote for 2005290080 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
