2005290170 Easy-On by Molex

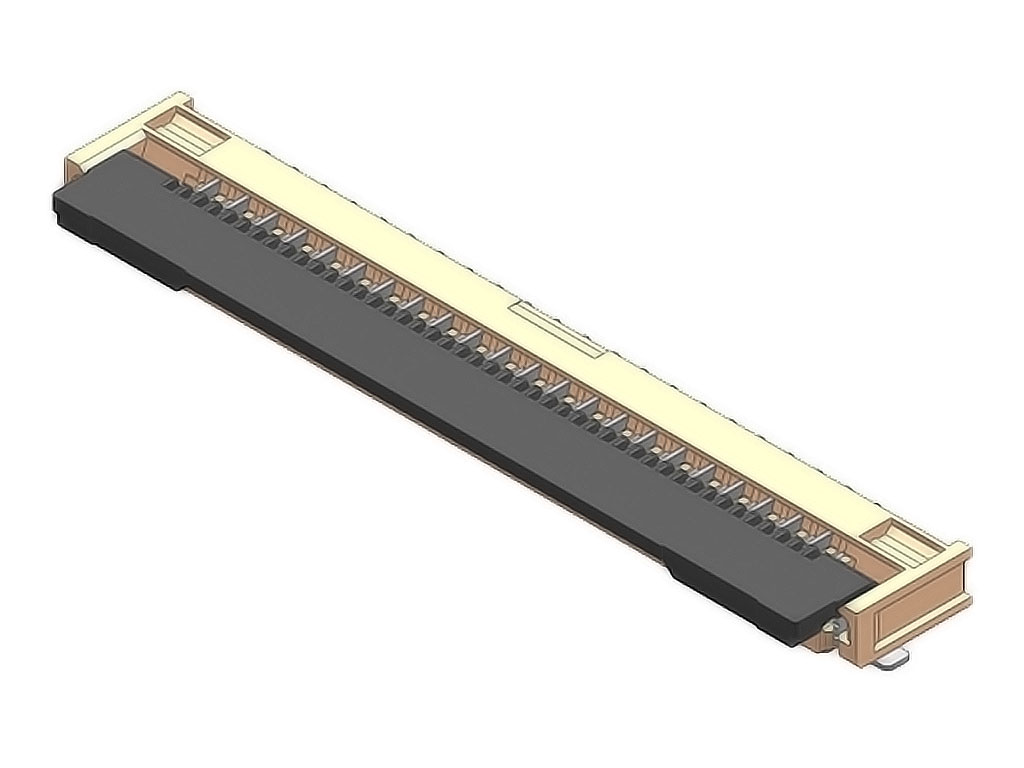

1.00mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 17 Circuits
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 200529-0170 |
Where to Buy
Prices starting from US$0.24
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$0.63
|
9,000
in stock
|
Buy Now |
|
Farnell
from US$0.38
|
9,000
in stock
|
Buy Now |
|
Heilind Americas
from US$0.24
|
4,500
in stock
|
Buy Now |
|
element14
from US$0.39
|
419
in stock
|
Buy Now |
|
RS
from US$0.68
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.32
|
0
in stock
|
Buy Now |
|
TME
from US$0.40
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.52
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
|
Sager
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Actuator Type | Front Flip |
| Circuits Loaded | 17 |
| Color Resin | Beige |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Mated Height | 1.90mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin-Silver-Bismuth |
| Material Plating Termination | Tin-Silver-Bismuth |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 211.423/mg |
| Orientation | Right Angle |
| Pcb Locator | No |
| Pcb Mounting | Surface Mount |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.00mm |
| Pitch Termination Interface | 1.00mm |
| Plating Min Mating | 1.016µm |
| Plating Min Termination | 1.016µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +85°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex FFC/FPC-Anschluss Polzahl Gesamt 17 Rastermaß: 1.00 mm 2005290170 1 St. Tape | Conrad |
| FPC CONN, RCPT, 17POS, 1ROW, 1MM | Farnell |
| 1.0 FPC ZIF BTM CONT EMBT PKG 17Ckt | Heilind Americas |
| CONNECTOR, FFC/FPC, 17POS, 1ROW, 1MM | element14 |
| Molex 200529-0170 FPC Connector | RS |
| Conn FFC/FPC Connector SKT 17 POS 1mm Solder RA SMD Emboss T/R | Avnet America |
| Connector: FFC/FPC | TME |
| 1.00MM EASY-ON FFC/FPC CONNECTOR | RS Americas |
| Connector, Ffc/Fpc, 17Pos, 1Row, 1Mm | Newark Electronics |
| FFC & FPC Connectors 1.00MM EASY-ON 17P RA SMT | Sager |
